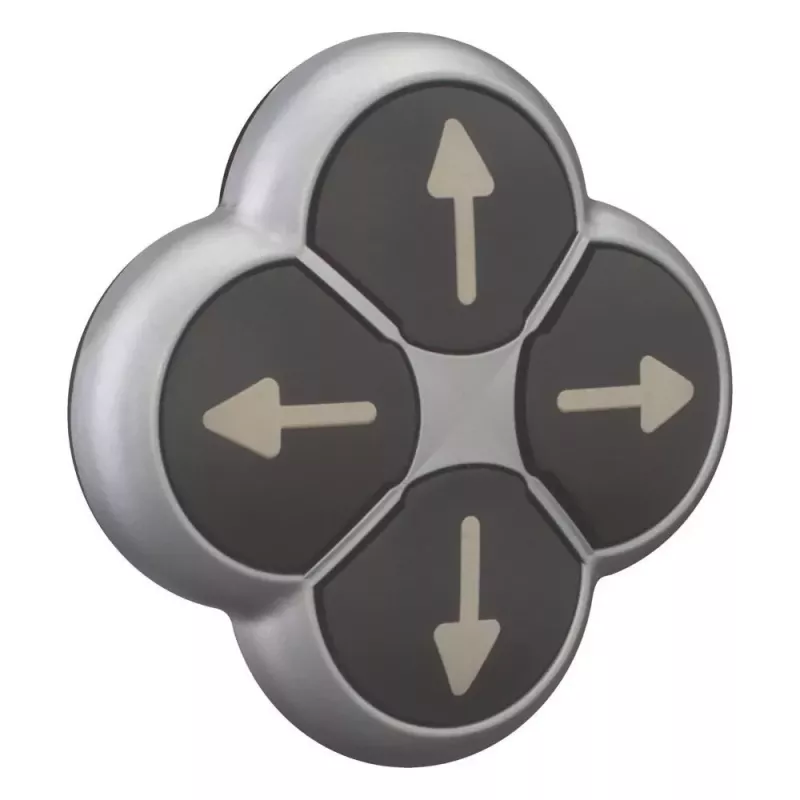

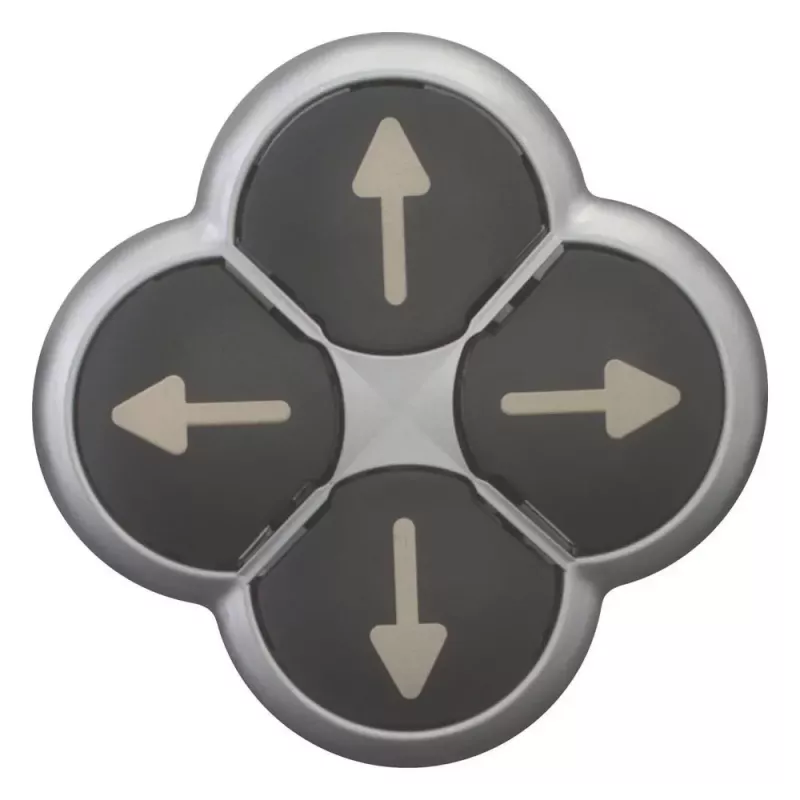

Eaton M22-D4-S-X7 tlačidlo, čierne, titánový ovládací krúžok, IP66 286336

Panel-mount pushbutton actuator from the Eaton M22 series, offering momentary actuation with a flush black button and a titanium-coloured metal bezel. Designed for reliable control in industrial environments, it provides IP66 front protection and operates across a wide temperature range from -25 to +70 °C.

Advantages

The M22-D4-S-X7 combines a robust metal bezel with a durable plastic button, ensuring long service life. Its 22.5 mm mounting diameter allows easy integration into standard panels, while the IP66 rating protects against dust and powerful water jets, making it suitable for demanding applications.

Suitable for

• Industrial control panels
• Machine tools and production equipment
• Outdoor installations requiring weather resistance

Key specifications

• Actuator type: Pushbutton
• Actuation: Momentary
• Button colour: Black
• Bezel colour: Titanium-coloured
• Bezel material: Metal
• Button material: Plastic
• Mounting diameter: 22.5 mm
• Protection rating (front): IP66
• NEMA rating: 4X, 13
• Operating temperature: -25 to +70 °C
• Design: Flush
• Illumination: Non-illuminated

Recommendations

For complete functionality, pair this actuator with Eaton M22 contact blocks (sold separately). Ensure proper panel cut-out of 22.5 mm diameter for secure mounting.
