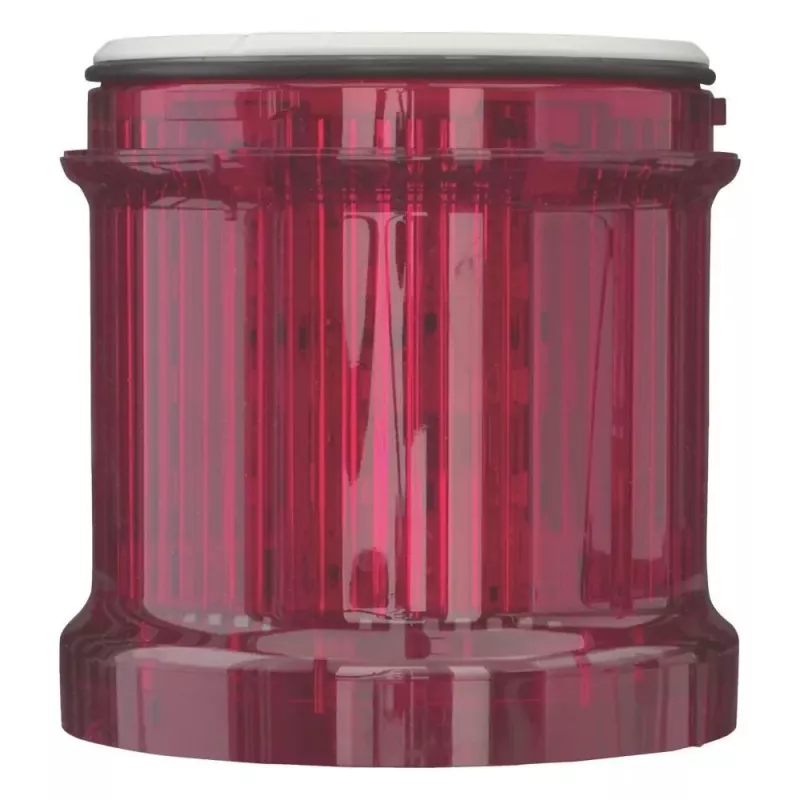

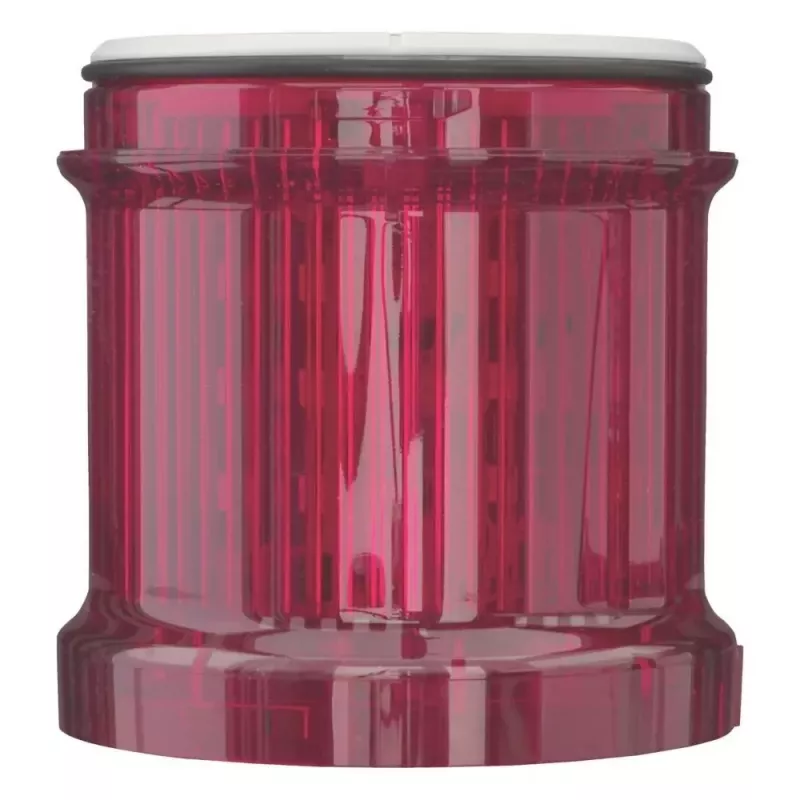

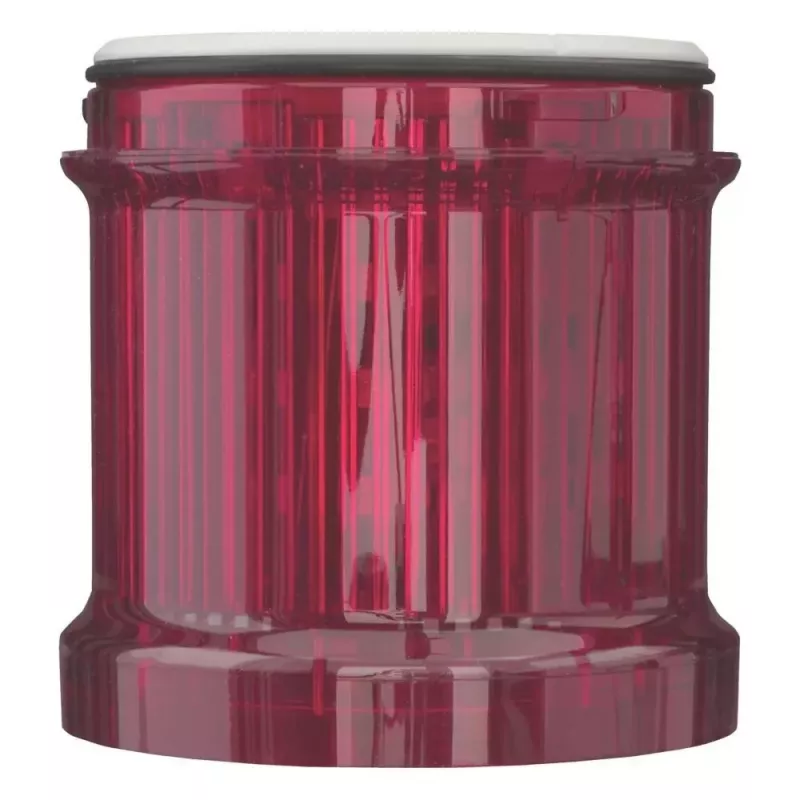

Eaton SL7-FL24-R LED blikajúci svetelný prvok, červený, 24 V AC/DC 171404

Machine builders and maintenance teams use the Eaton SL7-FL24-R as a red flashing light element in modular signal towers to indicate critical states such as faults, alarms, or emergency stops. It mounts directly onto other SL7 series elements via a bayonet connection, forming a compact stack for industrial control panels and equipment.

Key specifications

• Light source: LED, red
• Operating voltage: 24 V AC/DC
• Current consumption: 50 mA
• Flash frequency: 1 Hz
• Diameter: 70 mm, height: 67 mm
• Mounting: bayonet mount
• Electrical connection: screw terminal
• Housing material: PC/ABS, lens: polycarbonate
• Operating temperature: -30 to +60 °C
• Storage temperature: -40 to +70 °C

Why choose it

The LED light source offers long life and low energy consumption. The red flashing signal is highly visible, and the bayonet mount allows quick assembly without tools. The element is part of the SL7 series, enabling flexible configuration with other light and sound modules.

Ideal use cases

• Indicating machine faults or emergency stops
• Status signaling on conveyor systems
• Alarm indication in control cabinets
• Modular signal tower stacks for industrial automation

Good to know

The element is compatible with Eaton SL7 signal towers. It operates on 24 V AC or DC and connects via screw terminals. The flash frequency is approximately 1 Hz (60 flashes per minute).
