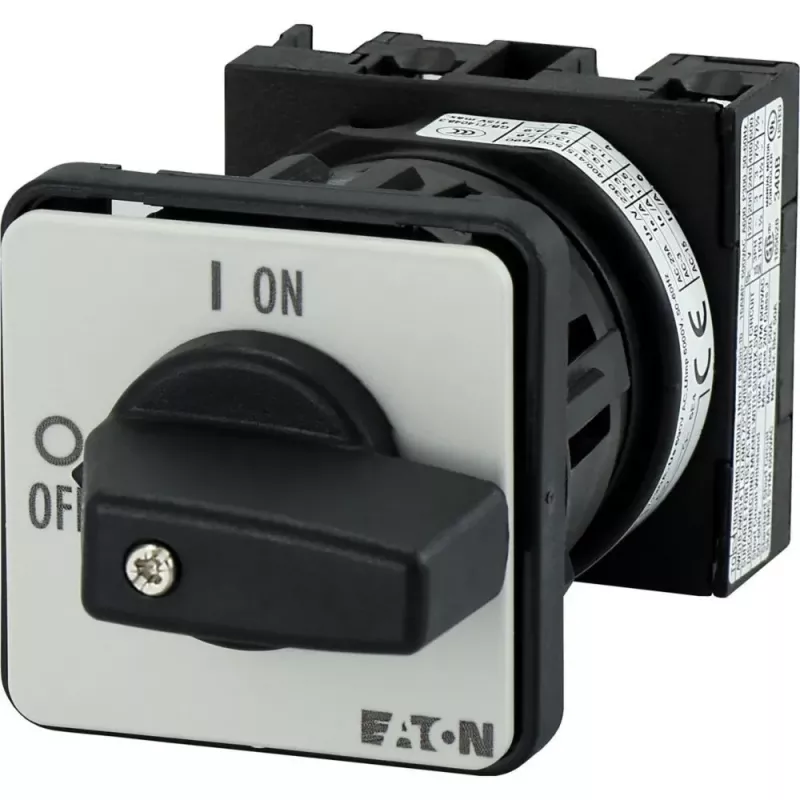

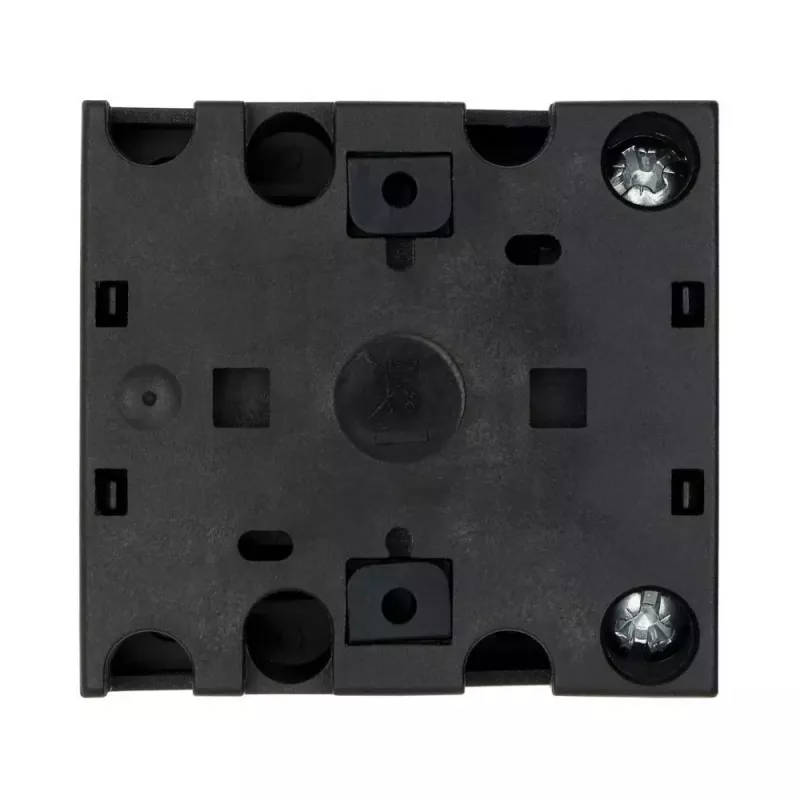

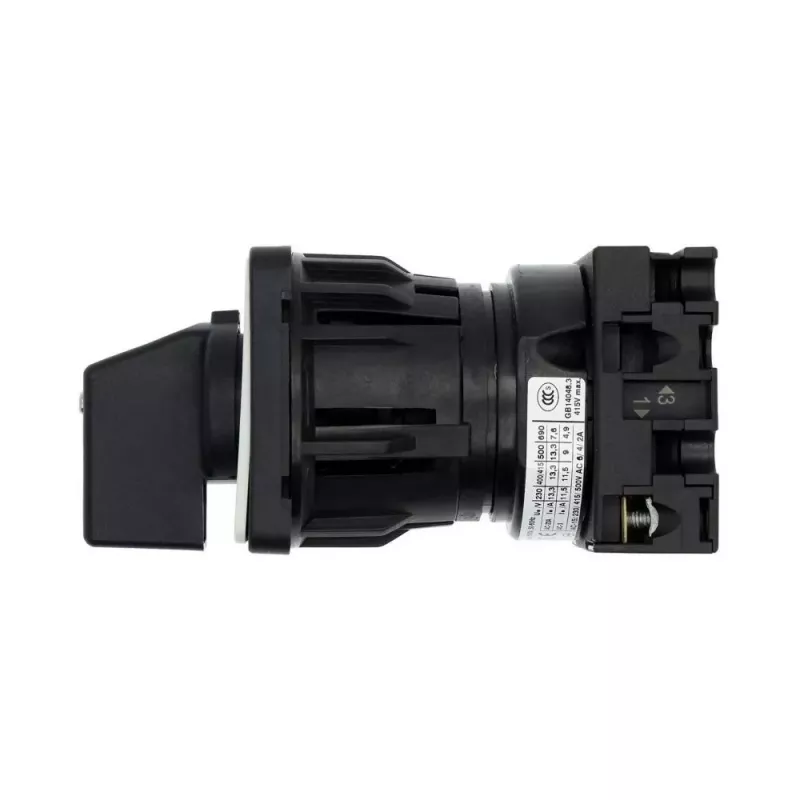

Eaton T0-1-8200/EZ odpojovač 1-pólový 20A 690V čierna/sivá 069725

The Eaton T0-1-8200/EZ is a 1-pole switch-disconnector designed for reliable ON/OFF switching and main switch applications in industrial and commercial installations. It offers a rated uninterrupted current of 20 A and a rated operational voltage of 690 V AC, ensuring robust performance in demanding electrical circuits.

Advantages

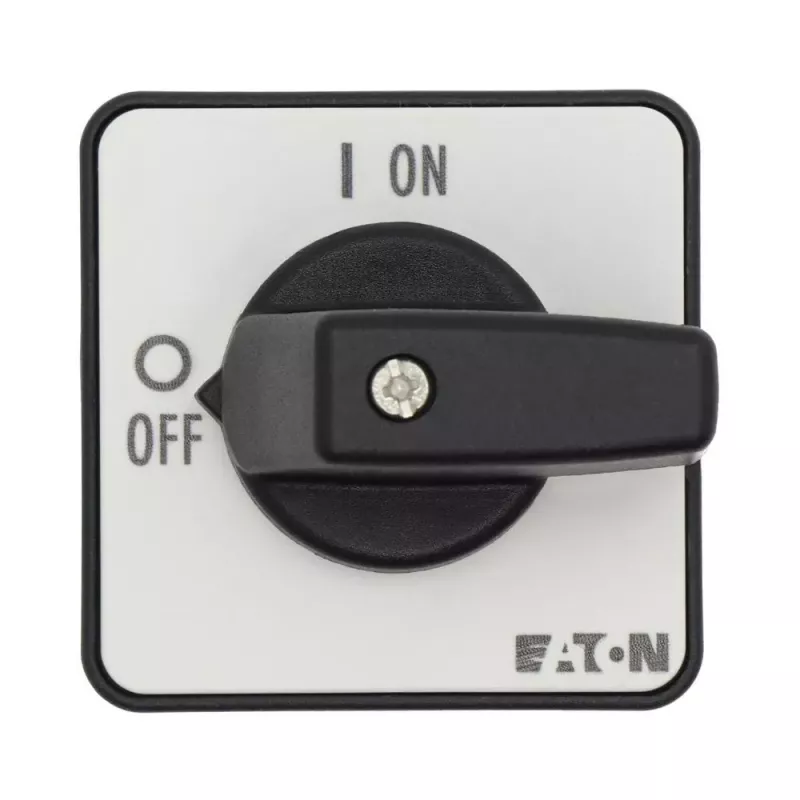

High switching capacity with a rated short-time withstand current of 320 A (1s) and conditional short-circuit current of 6 kA. The front plate measures 48 x 48 mm, suitable for flush or central mounting. The handle is black and the front plate is grey, providing clear visual indication. Front protection degree IP65 and terminal protection IP20.

Suitable for

• Main switch applications in control panels
• ON/OFF switching of motors and loads up to 20 A
• Industrial machinery and equipment requiring reliable disconnection

Key specifications

• Number of poles: 1
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 320 A (1s)
• Rated conditional short-circuit current (Iq): 6 kA
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Mounting type: Flush mounting, central mounting
• Front plate dimensions: 48 x 48 mm
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Terminal capacity: 1 x 2.5 mm² / 2 x 1.5 mm²
• Ambient operating temperature: -25 to +50 °C

Recommendations

For use in industrial control panels and machinery where a compact, reliable switch-disconnector is required. Ensure proper wiring according to terminal capacity and observe ambient temperature limits.
