EFB ELEKTRONIK 19 inch sieťový rozvádzač 42U 800x800, IP55, s predmontovaným podstavcom, RAL7035

The EFB ELEKTRONIK 19" Network Cabinet 42U 800x800 delivers robust IP55-rated protection for sensitive IT equipment in demanding environments. Its welded steel frame and lockable doors ensure security and durability, while the pre-assembled 100 mm plinth simplifies installation. With a load capacity of 1000 kg and adjustable 19" mounting rails, this cabinet accommodates heavy networking gear with ease.

Advantages

IP55 ingress protection shields against dust and water jets, making it suitable for outdoor or harsh indoor use. The pre-assembled plinth saves setup time and elevates the cabinet for better cable management. Lockable front and rear doors with 3-point locking deter unauthorized access. Removable side panels facilitate equipment installation and maintenance. Passive ventilation helps maintain optimal operating temperatures.

Suitable for

• Outdoor network installations exposed to weather
• Industrial environments with dust or moisture
• Data centers requiring high-density 42U racks
• Telecom and server rooms needing secure enclosures
• Edge computing sites with limited space

Key specifications

• Rack standard: 19 inch
• Rack units: 42U
• External dimensions (WxDxH): 800 x 800 x 2053 mm (including plinth)
• Plinth height: 100 mm (pre-assembled)
• Material: Steel
• Color: Light grey (RAL 7035)
• Load capacity: 1000 kg
• Front door: Single, lockable steel door with 3-point locking
• Rear door: Single, lockable steel door with 3-point locking
• Side panels: Removable, lockable
• Mounting rails: 19" front and rear, depth adjustable

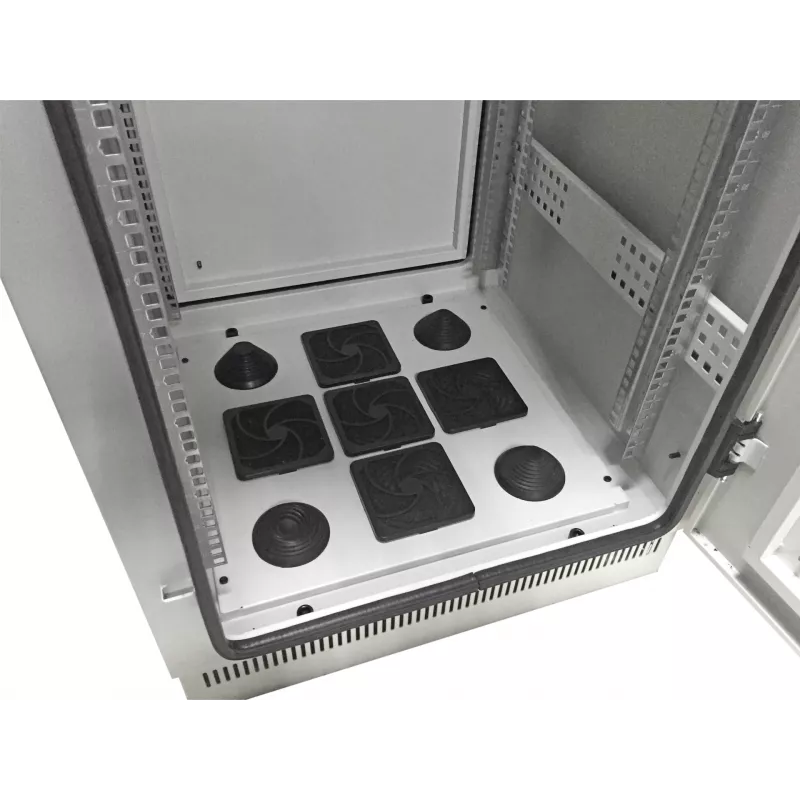

• Cable entry: Top and bottom with brush strips/cover plates
• Construction: Welded frame
• Ventilation: Passive ventilation system

Recommendations

Ideal for system integrators and IT managers seeking a reliable, weather-resistant enclosure for networking equipment. Pair with appropriate cable management accessories and grounding kits for optimal performance. Ensure the installation surface can support the cabinet's weight when fully loaded.
