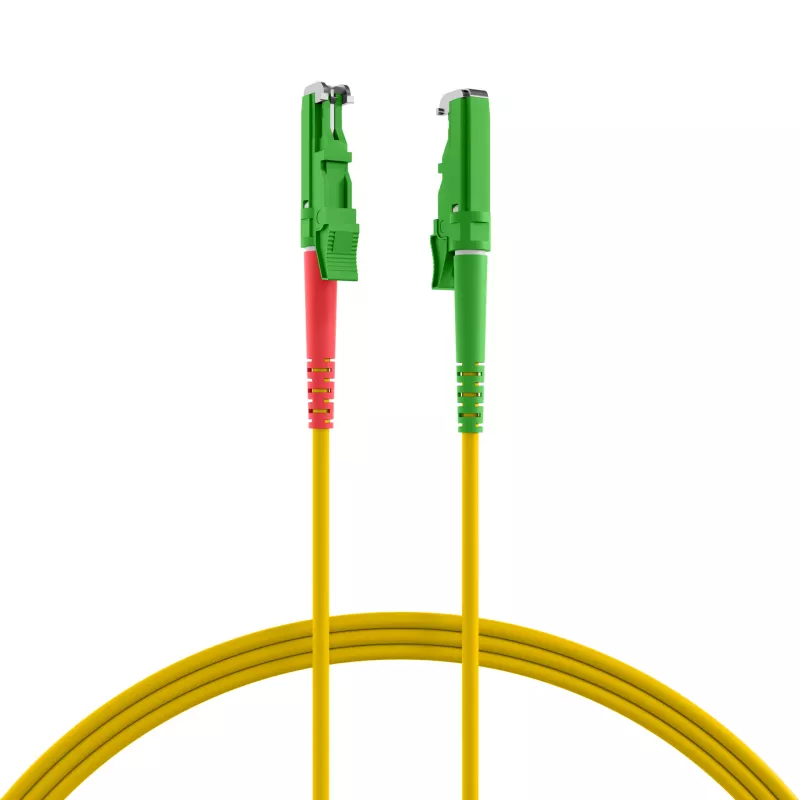

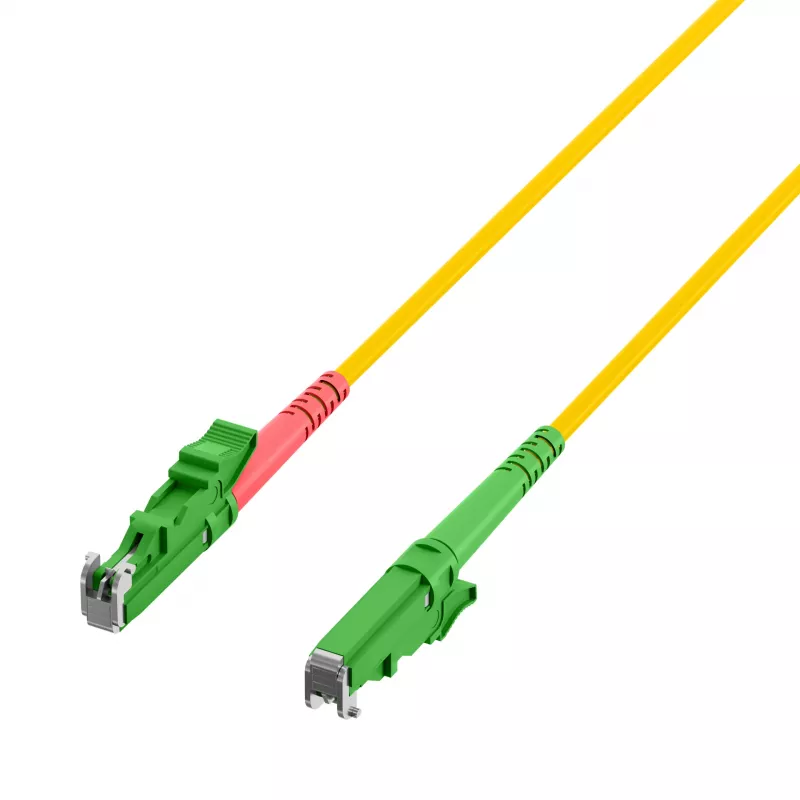

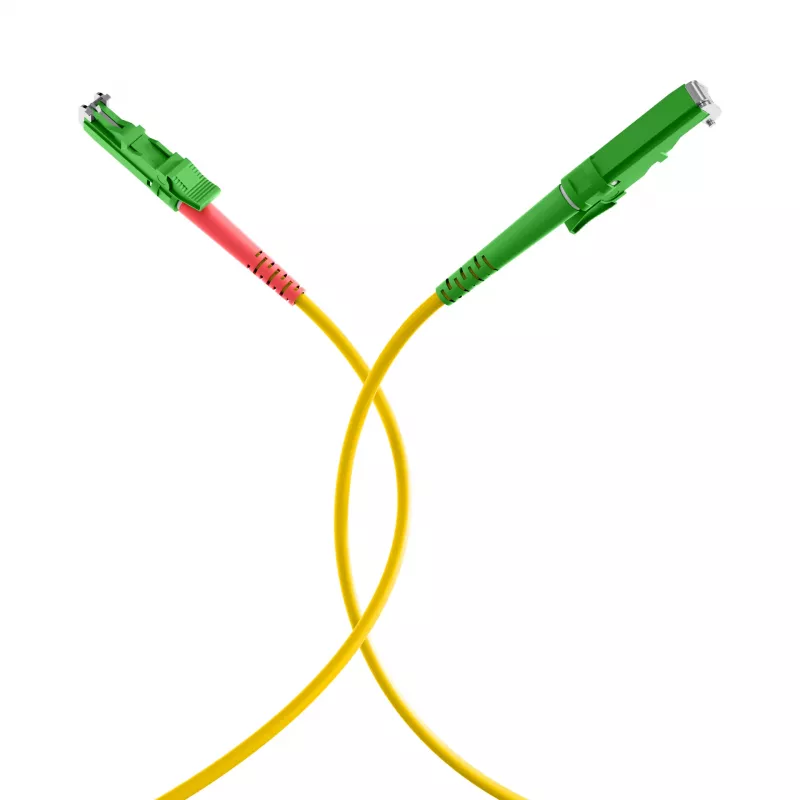

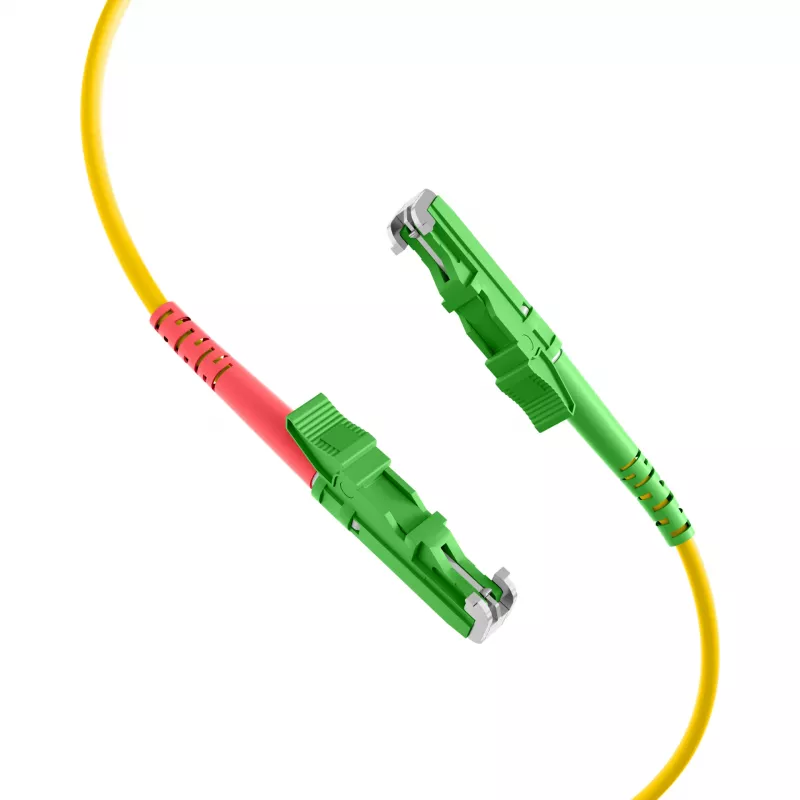

EFB Elektronik duplex jumper E2000/APC-E2000/APC 9/125µm OS2 LSZH žltá 3,0mm 40m

High-density fiber optic networks demand reliable, low-loss connectivity that can withstand the rigors of modern data centers and telecom environments. The EFB Elektronik Duplex Jumper E2000/APC-E2000/APC 9/125µm OS2 LSZH Yellow 3.0mm 40m delivers exactly that: a precision-engineered singlemode patch cable that ensures stable, high-performance links over long distances. With its 40-meter length, it bridges the gap between distribution panels, active equipment, and fiber termination points without signal degradation. The yellow LSZH jacket provides immediate identification of singlemode OS2 fiber while offering enhanced safety in fire-sensitive areas.

Who is it for

This jumper is built for network engineers, data center technicians, and telecom installers who require dependable fiber optic connections in demanding environments. It is ideal for backbone cabling, FTTH deployments, and high-speed LAN infrastructures where low insertion loss and high return loss are critical. Whether you are patching between E2000/APC terminated panels or connecting to optical transceivers, this cable ensures consistent performance.

Main features

• Duplex singlemode OS2 fiber with 9/125µm core/cladding for long-haul transmission.
• E2000/APC connectors on both ends with angled physical contact polish for superior return loss (>60 dB).
• Low insertion loss (<0.3 dB typical) ensures minimal signal attenuation.
• LSZH (Low Smoke Zero Halogen) yellow jacket with 3.0mm diameter for safety and easy routing.
• 40-meter length suitable for medium-distance patching in data centers and telecom rooms.
• Compliant with RoHS and REACH standards.

Specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Singlemode OS2
• Core/Cladding Diameter: 9/125 µm
• Connector Type: E2000/APC on both ends
• Cable Configuration: Duplex
• Cable Length: 40 m
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Connector Polish: APC
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Static): 30 mm
• Minimum Bend Radius (Dynamic): 60 mm
• Compliance: RoHS, REACH

Tips

For optimal performance, avoid exceeding the minimum bend radius during installation. Use cable management accessories to maintain proper routing and prevent stress on connectors. The yellow LSZH jacket is ideal for environments where fire safety is a priority, such as data centers and public buildings.
