EFB Elektronik Duplex prepojovací kábel LC-LC OM4 3 m s Push/Pull jazýčkom a vymeniteľnou polaritou

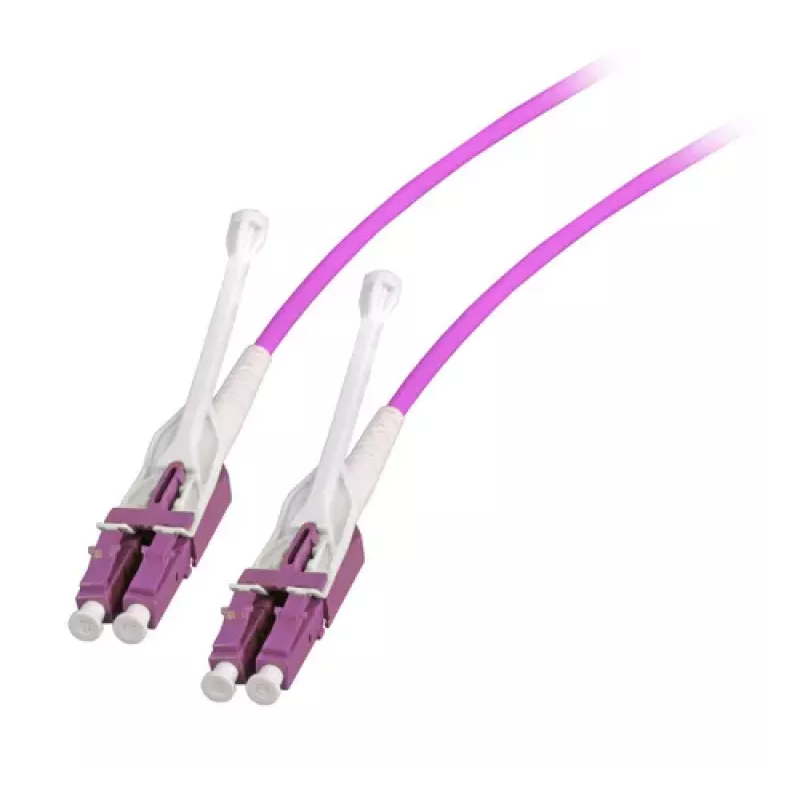

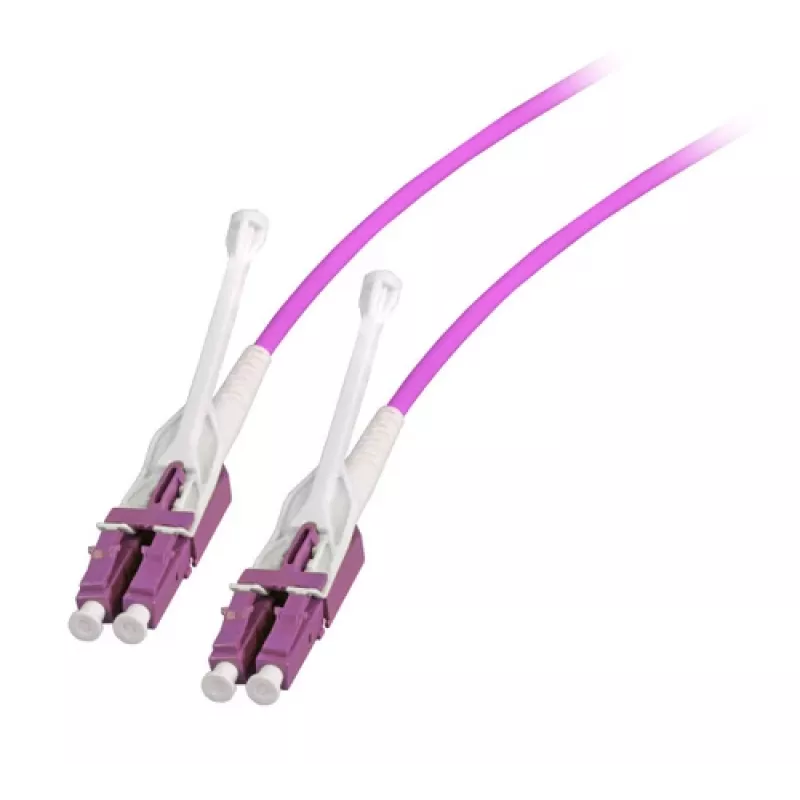

The EFB Elektronik Duplex Jumper LC-LC OM4 3m is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring LC to LC connectors with push/pull tabs and interchangeable polarity, this cable offers flexibility and ease of use for data centers, telecommunications, and enterprise networks.

Advantages

This OM4 multimode fiber patch cable provides superior bandwidth and low attenuation, supporting high-speed applications up to 40 Gbps and beyond. The push/pull tab design simplifies installation and removal in high-density panels, while the interchangeable polarity allows for easy adaptation to different network configurations. The LSZH jacket ensures safety in enclosed spaces.

Suitable for

• Data center interconnects
• Telecommunications networks
• Enterprise LAN cabling
• High-speed storage area networks (SAN)

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Type: Duplex
• Fiber Type: Multimode OM4
• Connector A: LC
• Connector B: LC
• Connector Features: Push/Pull Tab
• Polarity: Interchangeable
• Cable Length: 3 meters
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Jacket Color: Aqua
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (typical): < 0.3 dB
• Return Loss (typical): > 20 dB
• Attenuation at 850nm: 2.3 dB/km
• Attenuation at 1300nm: 0.6 dB/km
• Bandwidth at 850nm (OFL): 4700 MHz*km
• Bandwidth at 1300nm (OFL): 500 MHz*km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM4 compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for high-bandwidth applications requiring reliable connectivity.
