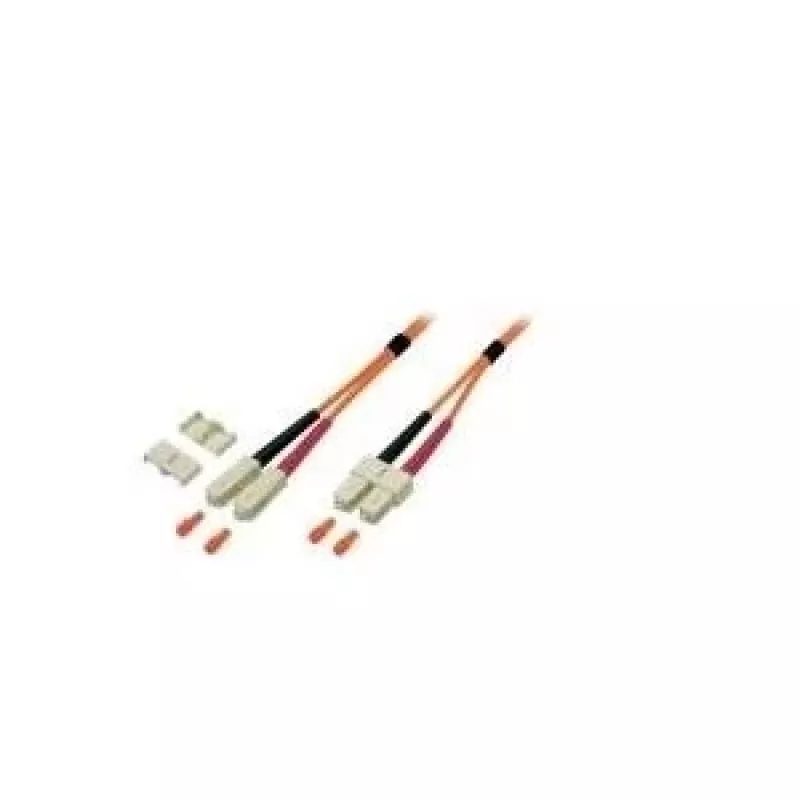

EFB Elektronik Duplex prepojovací kábel SC-SC 62.5/125µm OM1 LSZH oranžový 3,0mm 2m

The EFB Elektronik Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a core/cladding diameter of 62.5/125 µm and OM1 grade, this cable ensures optimal performance for short to medium distance applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the orange color and 3.0mm diameter offer easy identification and durability.

Advantages

This duplex jumper offers low insertion loss and high return loss, ensuring minimal signal degradation. The SC to SC connectors provide secure and easy connections. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for use in offices, data centers, and public areas.

Suitable for

• Fiber optic network installations
• Data center cabling
• Telecommunications
• LAN and WAN connections
• FTTx applications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Type: Duplex
• Connector Type A: SC
• Connector Type B: SC
• Fiber Mode: Multimode
• Fiber Grade: OM1
• Core/Cladding Diameter: 62.5/125 µm
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Number of Fibers: 2
• Polishing Type: PC (Physical Contact)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 20 dB
• Attenuation at 850nm: ≤ 3.5 dB/km
• Attenuation at 1300nm: ≤ 1.5 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC multimode ports and is suitable for use with 10/100/1000BASE-SX and other multimode transceivers.
