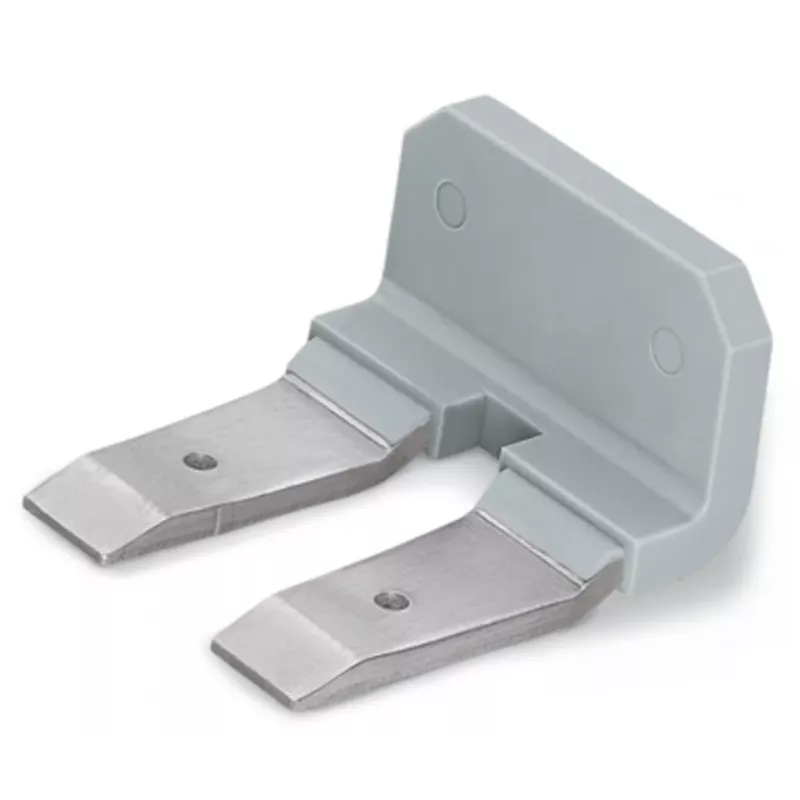

WAGO 285-495 izolovaná prepojka sivá 2-pólová 10 mm rozteč 1000 V 125 A

The WAGO 285-495 is a high-quality insulated jumper designed for bridging adjacent terminal blocks in the WAGO 285 series. With a 2-pole configuration and 10 mm pitch, this grey jumper ensures reliable electrical connections in demanding industrial environments. Rated for 1000 V and 125 A, it meets stringent safety standards including VDE, UL, and CSA approvals.

Advantages

This insulated jumper offers quick and secure plug-in mounting, eliminating the need for tools. The polyamide (PA 66) housing provides excellent insulation and flame retardancy (UL 94 V-0), while the electrolytic copper conductor ensures low resistance and high conductivity. Its compact design saves space on the DIN rail.

Suitable for

• Bridging adjacent WAGO 285 series terminal blocks
• Industrial control panels and distribution boards
• Power distribution and signal wiring applications

Key specifications

• Product Type: Insulated Jumper
• Number of Poles: 2
• Color: Grey
• Pitch/Spacing: 10 mm
• Rated Voltage (EN): 1000 V
• Rated Current (EN): 125 A
• Insulation Material: Polyamide (PA 66)
• Conductor Material: Electrolytic Copper (E-Cu)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 to +105 °C
• Storage Temperature Range: -35 to +105 °C
• Mounting Type: Plug-in
• Connection Type: Jumper Bar
• Approvals: VDE, UL, CSA

Recommendations

For optimal performance, use with WAGO 285 series terminal blocks. Ensure proper installation according to manufacturer guidelines. This jumper is ideal for creating potential bridges in multi-level terminal blocks.
