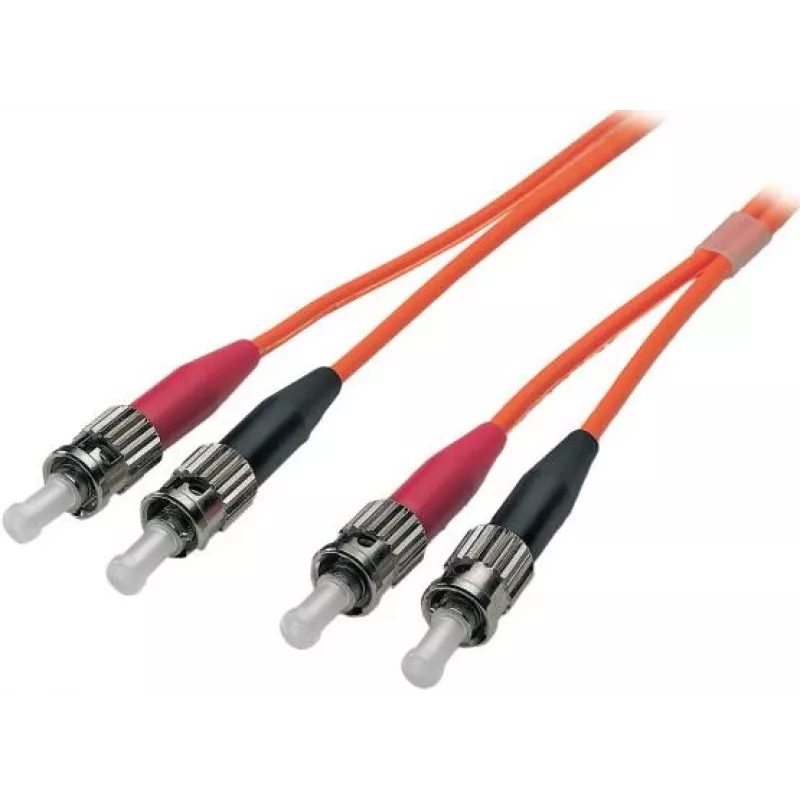

EFB Elektronik ECOFIBER duplex jumper ST-ST 50/125 µm OM2 LSZH oranžový 3,0 mm 0,5 m

The EFB Elektronik ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM2 multimode fiber, 50/125 µm core/cladding, and durable LSZH jacket, this cable ensures low signal loss and safety. Ideal for data centers, LAN, SAN, and telecommunications.

Advantages

Optimized for 850nm and 1300nm wavelengths, ceramic ferrule for precise alignment, and LSZH jacket for reduced smoke and toxicity in case of fire. Duplex configuration supports bidirectional communication.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Configuration: Duplex
• Fiber Mode: Multimode
• Fiber Class: OM2
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Connector Type A: ST
• Connector Type B: ST
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Cable Length: 0.5 m
• Polarity: A-B
• Ferrule Material: Ceramic
• Supported Wavelengths: 850nm, 1300nm
• Flammability Rating: LSZH Compliant
• Standards Compliance: IEC 60793-2-10 Type A1a.1

Recommendations

For optimal performance, use with OM2 compatible transceivers and ensure proper handling of connectors to maintain low insertion loss.
