EFB 19 inch sieťový rozvádzač PEL 42U 800x1000mm RAL9005 (nákladná doprava)

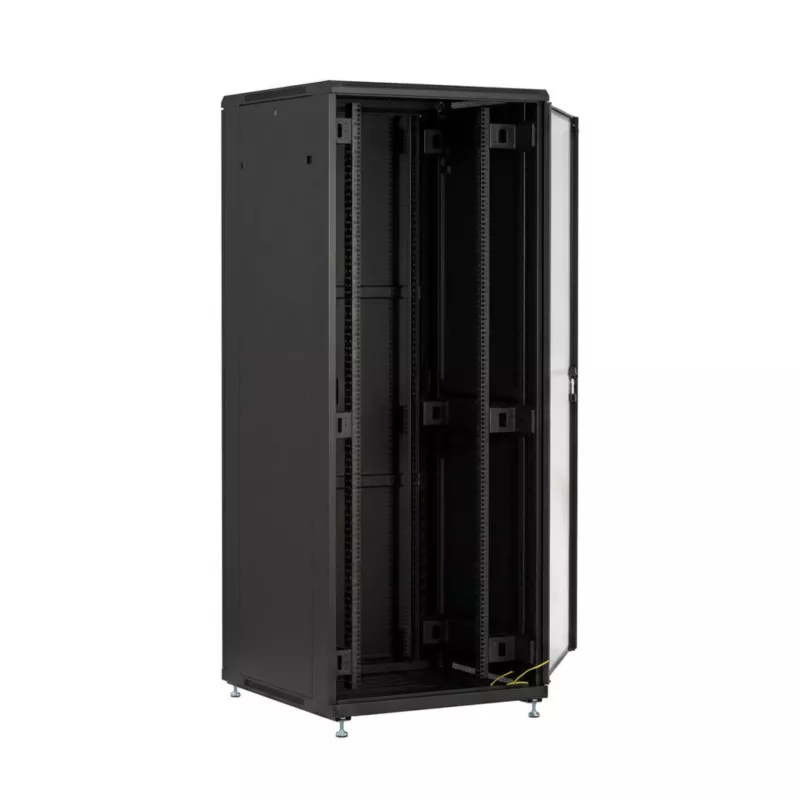

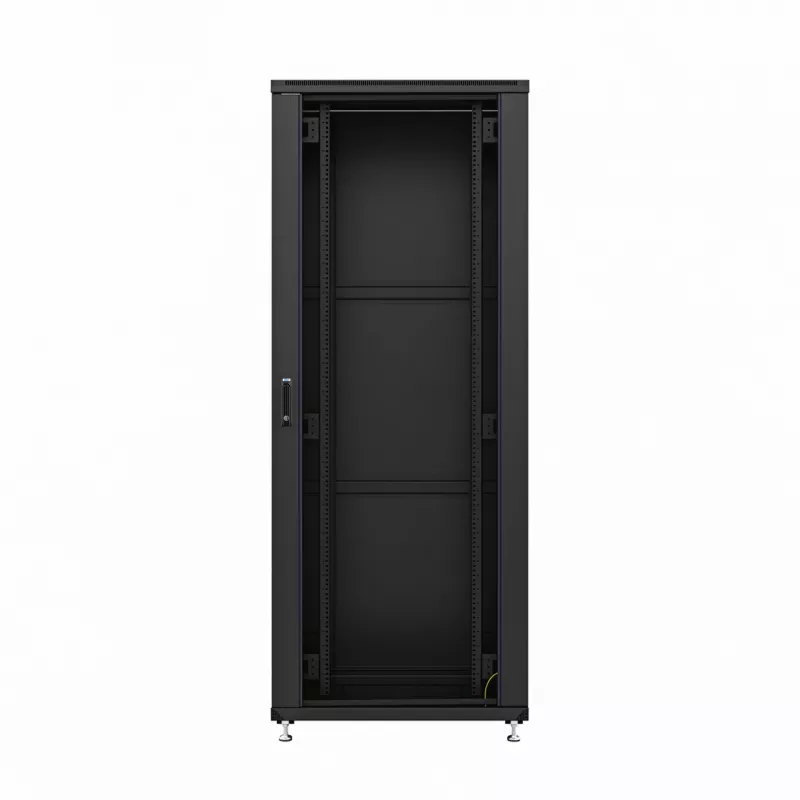

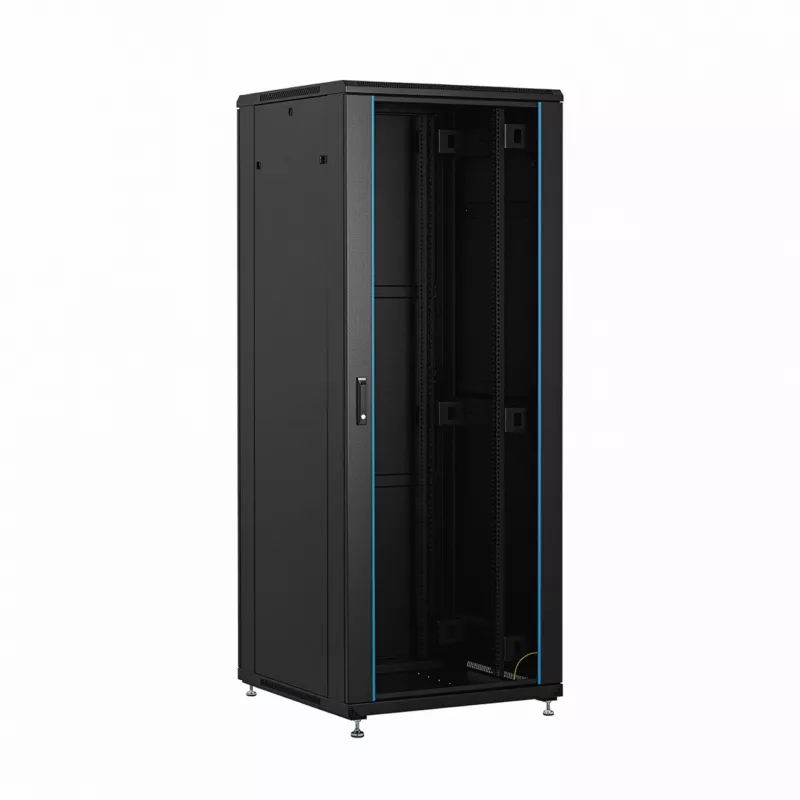

The EFB PEL series network cabinet offers a robust and secure housing solution for 19-inch rack-mounted equipment. With 42U of rack space, 800mm width, and 1000mm depth, this freestanding cabinet is ideal for network, server, and data center applications. Its solid steel construction and IP20 protection ensure durability and safety for your valuable IT infrastructure.

Advantages

High static load capacity of 1000 kg supports heavy equipment. Lockable front and rear doors with tempered safety glass and perforated steel provide security and optimal airflow. Removable side panels and depth-adjustable mounting rails offer flexible installation and easy maintenance. Pre-assembled design saves time and effort during setup.

Suitable for

• Network switches and patch panels
• Server hardware and UPS systems
• Data center and enterprise IT environments

Key specifications

• Rack Units: 42U
• External dimensions (WxDxH): 800 x 1000 x 2000 mm
• Colour: RAL 9005 (Jet Black)
• Material: Steel

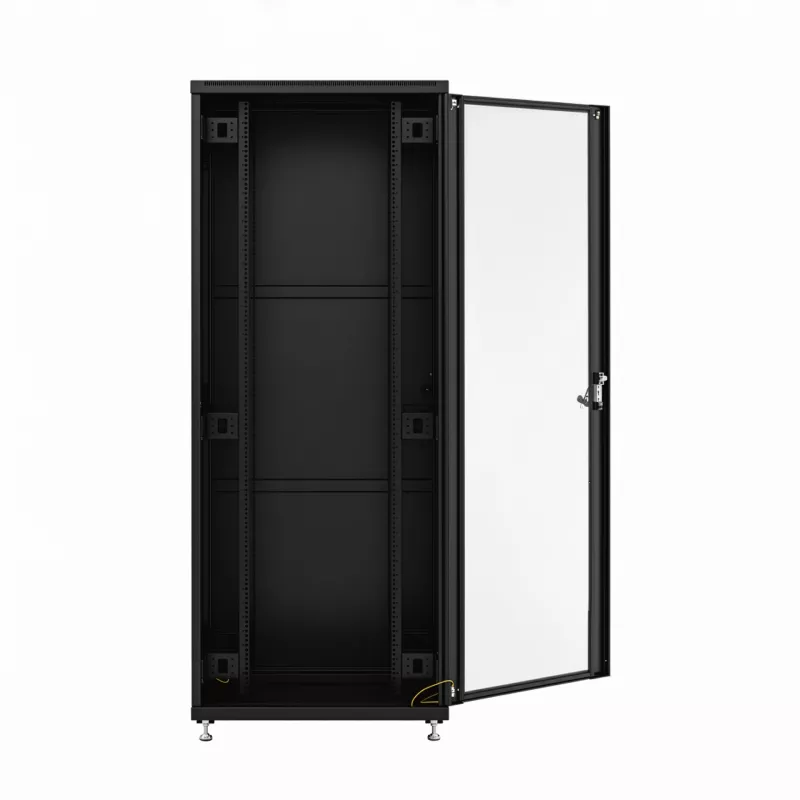

• Front door: Tempered safety glass, lockable
• Rear door: Perforated steel (approx. 80% perforation), lockable
• Side panels: Removable, lockable
• Static load capacity: 1000 kg
• Protection class: IP20
• Cable entry: Top and bottom with brush strips
• Mounting rails: 4x 19", depth-adjustable
• Construction: Pre-assembled
• Ventilation: Passive, prepared for active ventilation units
• Locking system: Swivel lever handle with profile half cylinder (front and rear)
• Included accessories: 4x levelling feet, grounding kit

Recommendations

For optimal performance, ensure proper ventilation and cable management. This cabinet is delivered by freight shipping due to its size and weight.
