EFB Electronics Duplex Patchkabel LC/APC-LC/APC OS2 G652D 1m LSZH žltý

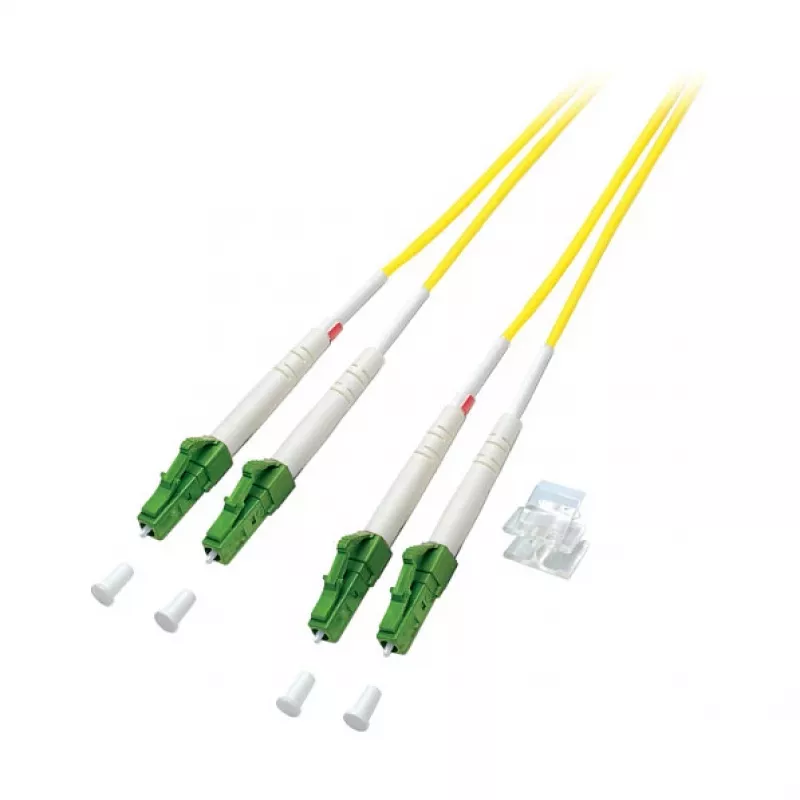

The EFB Electronics Duplex Patch Cable is a high-performance fiber optic patch cord designed for reliable singlemode connections in data centers, FTTH, LAN, and telecommunications networks. Featuring LC/APC connectors on both ends, this OS2-rated cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers bend-insensitive fiber (G.657.A1) with a minimum bend radius of 10 mm, making installation easy even in tight spaces. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in indoor environments by reducing toxic fumes and smoke in case of fire. With typical insertion loss <0.2 dB and return loss >60 dB, it guarantees excellent performance.

Suitable for

• Data center patching and cross-connects
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Telecommunications infrastructure

Key specifications

• Connector Type: LC/APC to LC/APC
• Fiber Type: Singlemode OS2 (9/125 µm)
• Cable Length: 1 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss: <0.2 dB (typical)
• Return Loss: >60 dB (typical)
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is polarity A-B (crossed) and suitable for standard duplex applications.
