EFB Electronics IPL-DR-LCUSCU-3-0100 - 1 m - I-V(ZN) H - OM3 - LC - SC

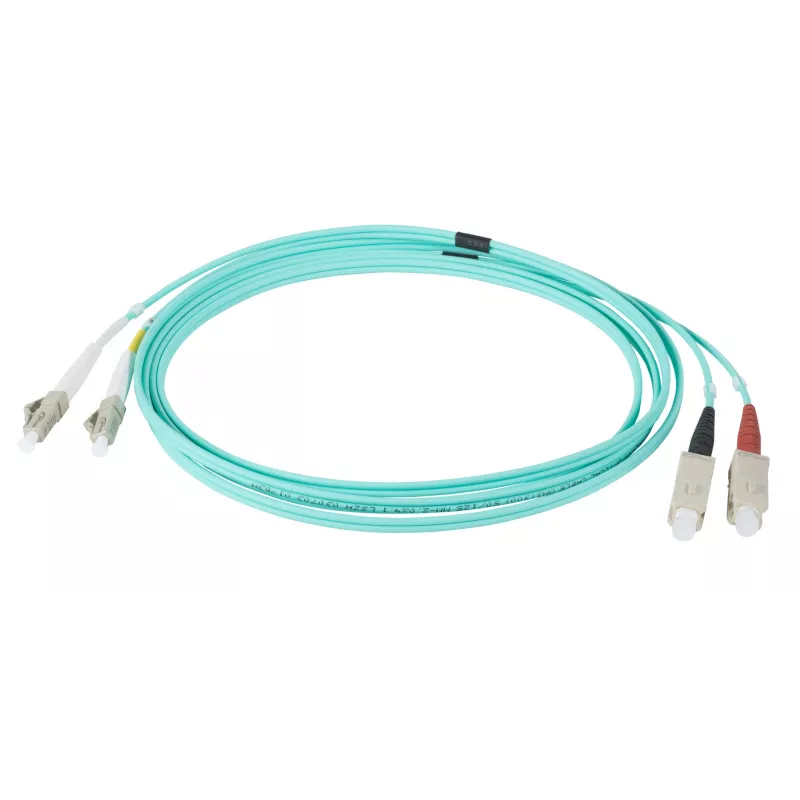

This EFB Electronics IPL-DR-LCUSCU-3-0100 fiber optic patch cable is a high-performance OM3 multimode duplex cable designed for 10 Gigabit Ethernet applications. With a length of 1 meter and LC to SC connectors, it provides reliable connectivity in data centers, LANs, and SANs. The LSZH jacket ensures safety in enclosed spaces.

Advantages

OM3 grade supports 10 Gbps data rates over short distances; LSZH jacket reduces toxic fumes in case of fire; duplex design for bidirectional communication; low insertion loss and high return loss for signal integrity.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• 10 Gigabit Ethernet connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Length: 1 m
• Connector A: LC Duplex
• Connector B: SC Duplex
• Number of Fibers: 2 (Duplex)
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Standard: I-V(ZN) H
• Maximum Data Rate: 10 Gbps
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH, TIA/EIA-568-C.3, IEC 60794-2

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean connector end-faces before installation.
