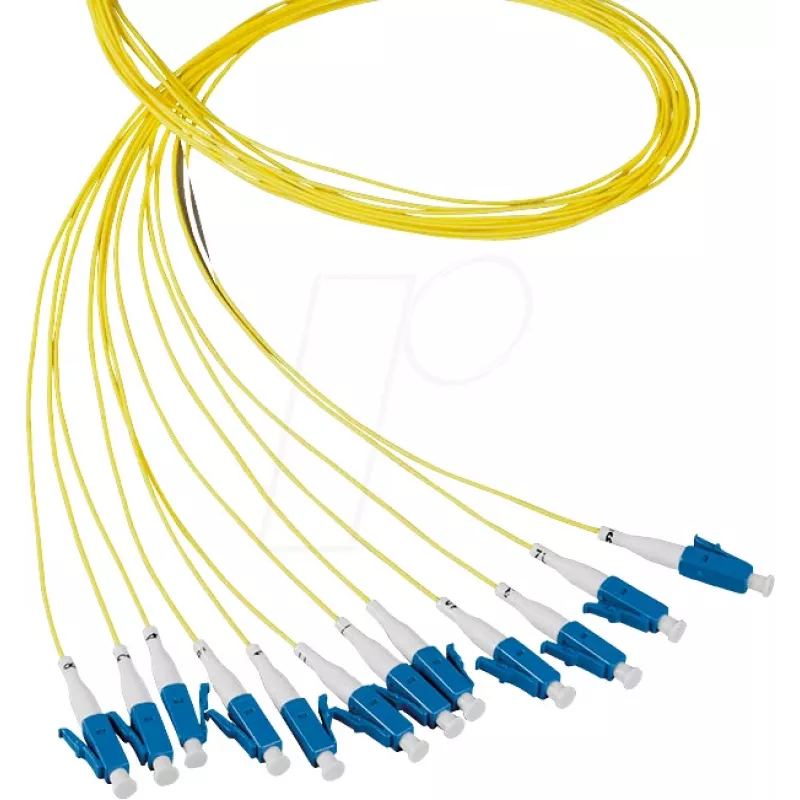

EFB Electronics optický pigtail LC 50/125 µm OM5, limetkovozelený, 2 m

The EFB Electronics Fiber Pigtail LC 50/125 µm OM5 is a high-performance, pre-terminated fiber optic pigtail designed for reliable and efficient network connections. Featuring a simplex LC connector with UPC polish, this pigtail ensures low insertion loss and high return loss, making it ideal for high-speed data transmission in data centers, SAN, and LAN environments. The OM5 broadband multimode fiber supports multiple wavelengths, providing future-proofing for emerging applications.

Advantages

This pigtail offers exceptional signal integrity with typical insertion loss below 0.3 dB and return loss greater than 20 dB. The lime green jacket provides easy identification for OM5 fiber, while the LSZH (Low Smoke Zero Halogen) material enhances safety by reducing toxic fumes in case of fire. The 2-meter length offers flexibility in patch panel and splice tray installations.

Suitable for

• High-speed data networks (10/40/100 GbE and beyond)
• Data center cabling infrastructure
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Fiber-to-the-desk applications

Key specifications

• Connector: LC simplex, UPC polished
• Fiber type: Multimode OM5 (50/125 µm)
• Core/Cladding: 50 µm / 125 µm
• Cable length: 2 m
• Jacket color: Lime green
• Jacket material: LSZH
• Insertion loss: < 0.3 dB typical
• Return loss: > 20 dB typical
• Attenuation: 2.3 dB/km @ 850/953 nm, 0.6 dB/km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE

Recommendations

For optimal performance, ensure proper cleaning of connectors before mating. Use with OM5-rated patch panels and transceivers to fully leverage the broadband capabilities. This pigtail is an excellent choice for upgrading existing multimode networks to support higher data rates.
