EFB Electronics Plochý kábel AWG 28-40/G 30,5 m cievka RM 1,27 40-pólový

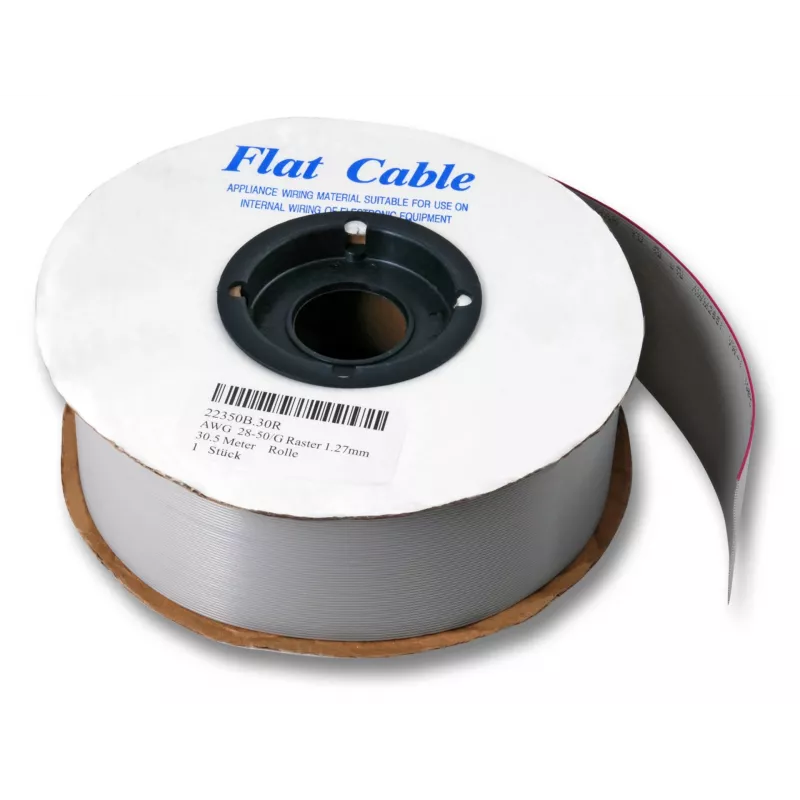

The EFB Electronics ribbon cable (model 22340B.30R) is a high-quality flat ribbon cable designed for internal wiring, data bus connections, and prototyping. With 40 conductors, AWG 28 wire gauge, and a pitch of 1.27 mm (0.050 inch), this cable is ideal for IDC connector applications. Supplied on a 30.5-meter roll, it offers flexibility for various project lengths.

Advantages

This ribbon cable features stranded tinned copper conductors for excellent conductivity and flexibility. The PVC insulation provides reliable protection and a wide operating temperature range from -20°C to +105°C. Rated for 300 V, it ensures safe performance in demanding environments.

Suitable for

• Internal wiring of electronic devices
• Data bus connections
• Prototyping and development boards
• IDC connector terminations

Key specifications

• Cable Type: Flat Ribbon Cable
• Number of Conductors: 40
• Wire Gauge: 28 AWG
• Conductor Pitch: 1.27 mm (0.050 inch)
• Length: 30.5 m
• Packaging: Roll
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Conductor Construction: Stranded
• Colour: Grey
• Rated Voltage: 300 V
• Operating Temperature Range: -20°C to +105°C

Recommendations

For optimal performance, use with compatible IDC connectors and ensure proper termination. Store in a cool, dry place.
