FD 3 plochý kábel e+p 0,2 m konektor samica/konektor samica biely 75 Ω

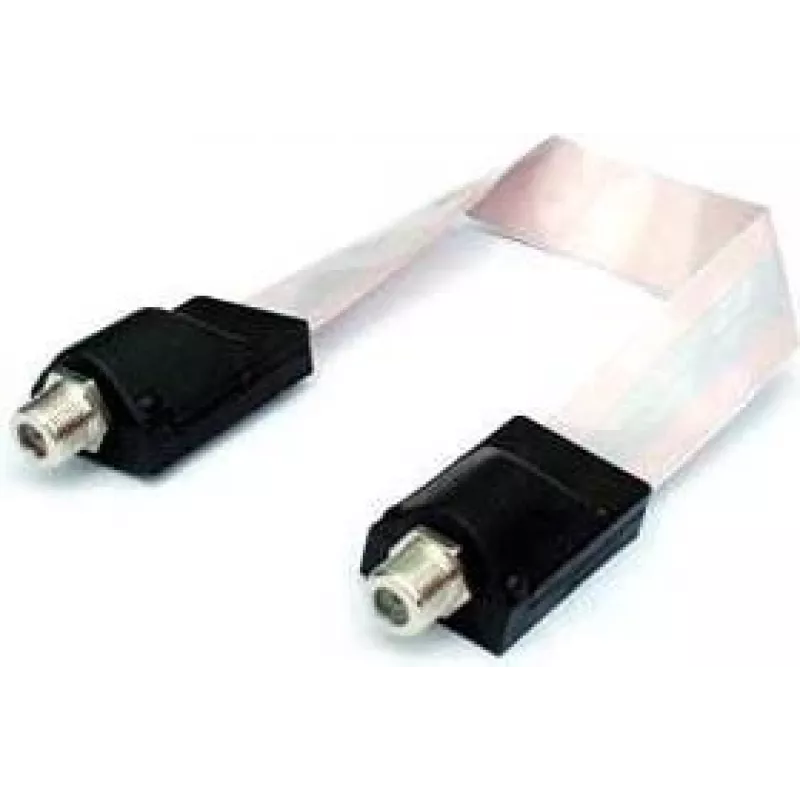

The e+p FD 3 ribbon cable is a 0.2 m, extremely flat coaxial cable with female-to-female F connectors and 75 Ω impedance, designed for compact digital and analogue installations. Its white, low-profile design allows installation without drilling and provides weatherproof performance with DC pass capability. The cable covers a wide frequency range and is suitable for flexible routing in tight spaces.

Advantages

The cable is highly flexible and extremely flat for discreet routing in limited spaces. It supports digital signals, offers DC pass functionality and weatherproof connectors, and features low typical attenuation to preserve signal quality across the supported frequency range.

Suitable for

• Connecting TV, set-top box and satellite equipment with F connectors
• Indoor or outdoor runs where low-profile cable routing is required
• Tight or concealed installations behind panels or furniture

Key specifications

• Length: 0.2 m
• Impedance: 75 Ω
• Connectors: F jack to F jack (female/female)
• Frequency range: 40–2400 MHz
• Attenuation: typ. 3.0 dB
• Features: digital capable, DC pass, weatherproof, extremely flat, high flexibility
• Color: white
• Brand / MPN / EAN: e p / FD 3 / 4005298038663

How to use

Connect each F female end to the corresponding male F connector on your devices (for example TV, receiver or antenna). Route the flat cable along the desired path, avoiding sharp bends to maintain shielding performance. The cable can be used indoors or in exposed locations thanks to its weatherproof design; ensure connectors are properly tightened for reliable contact. The DC pass allows powering of remote devices when required.

Recommendations

For best performance, keep bend radius gentle and avoid kinking the flat cable. Use the FD 3 ribbon cable for short runs up to the specified length and verify connector mating to prevent signal loss.
