EFB Electronics rozšíriteľná zváracá krabica SC 24 pigtailov offset 12 spojok OM3

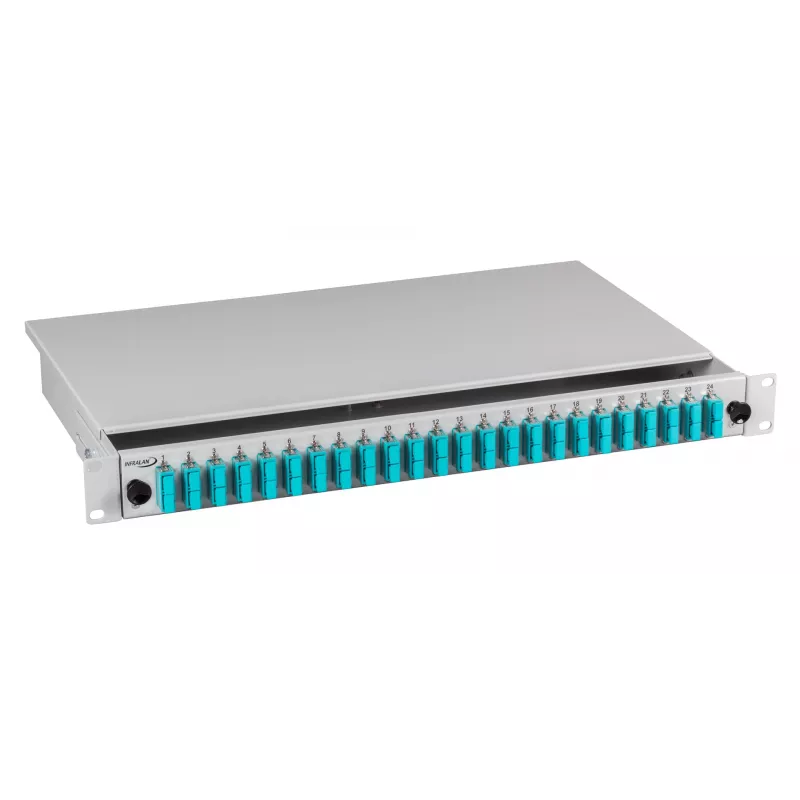

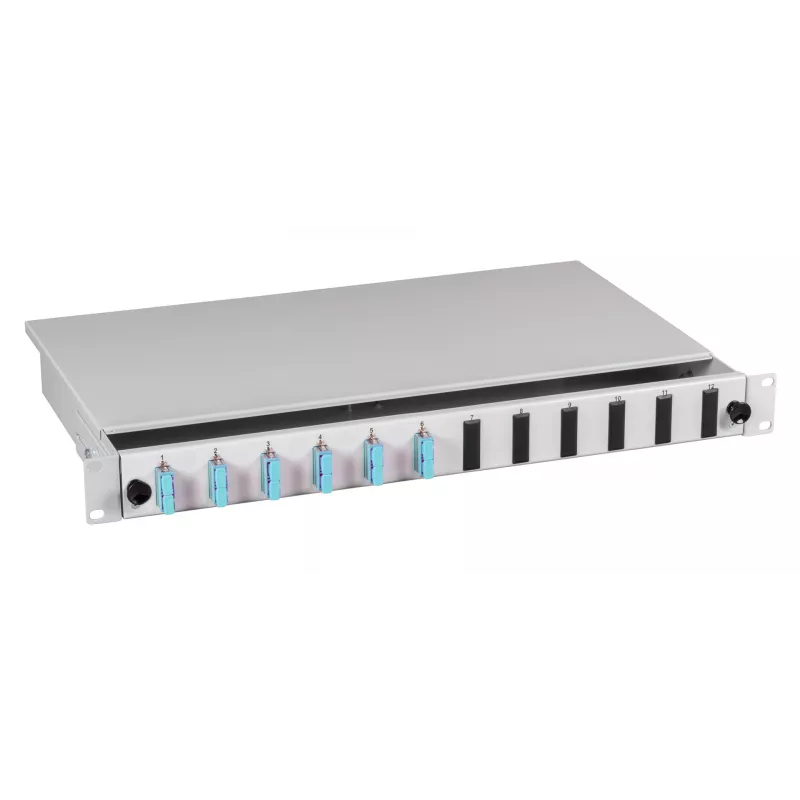

The EFB Electronics Extendable Splice Box SC 24 Pigtails Offset 12 Couplings OM3 is a high-quality 1U 19-inch rack-mount fiber optic splice box designed for efficient splicing and patching in data centers, LAN, SAN, and telecommunications environments. This extendable/sliding unit features 24 pre-installed SC pigtails (OM3, 2m) and 12 SC-Duplex couplings (OM3), providing a total fiber capacity of 24 fibers. The housing is made of powder-coated steel in light grey (RAL 7035) and includes two 12-splice trays for up to 24 splices. Cable entry is via rear knockouts for M20/M25 glands. Operating temperature range: -20°C to +70°C, protection class IP20.

Advantages

Extendable design allows easy access for splicing and maintenance. Pre-terminated pigtails and couplings save installation time. Robust steel housing ensures durability. Suitable for high-density fiber management.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Mounting: 19-inch Rack, 1U
• Connector Type: SC-Duplex
• Fiber Type: Multimode OM3
• Number of Ports: 12 (SC-Duplex)
• Total Fiber Capacity: 24 Fibers
• Pigtails: 24x SC Pigtails (OM3, 2m)
• Couplings: 12x SC-Duplex Couplings (OM3)
• Housing Material: Steel, Powder-coated
• Color: Light Grey (RAL 7035)
• Design: Extendable / Sliding
• Splice Tray Capacity: 24 Splices (2x 12-splice trays)
• Cable Entry: Rear, multiple knockouts for M20/M25 glands
• Operating Temperature: -20°C to +70°C
• Protection Class: IP20

Recommendations

For optimal performance, use with OM3 patch cables and ensure proper cable management. Suitable for splicing and patching in high-density fiber networks.
