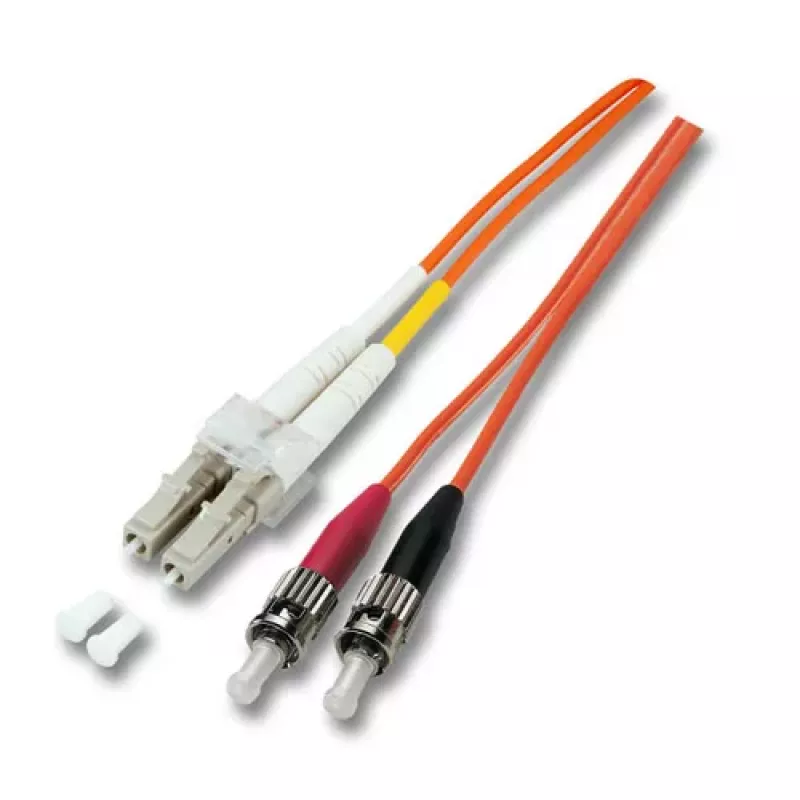

EFB-Elektronik Duplex Jumper LC-ST 50/125µ OM2 LSZH oranžový 2,0mm 3m

The EFB-Elektronik Duplex Jumper LC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM2 performance, this cable ensures efficient connectivity for various applications, from data centers to enterprise networks.

Advantages

This cable offers low signal loss and high bandwidth, making it ideal for high-speed data transfer. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes and smoke. The duplex configuration allows for simultaneous bidirectional communication, and the 2.0mm diameter per strand ensures flexibility and easy handling.

Suitable for

• Fiber optic network installations requiring LC to ST connections
• Multimode OM2 applications in LANs, SANs, and data centers
• Environments where safety is critical, such as public buildings and transportation

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Category: OM2
• Core/Cladding Diameter: 50/125 µm
• Connector Type A: LC
• Connector Type B: ST
• Cable Configuration: Duplex
• Jacket Material: LSZH
• Jacket Color: Orange
• Cable Length: 3 m
• Cable Diameter (per strand): 2.0 mm
• Number of Fibers: 2
• Polarity: A-B (Crossed)
• Attenuation at 850nm (Max): 3.0 dB/km
• Attenuation at 1300nm (Max): 1.0 dB/km
• Bandwidth at 850nm (Min): 500 MHz·km
• Bandwidth at 1300nm (Min): 500 MHz·km

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard LC and ST interfaces. Ideal for use in structured cabling systems requiring OM2 multimode fiber.
