EFB-Elektronik duplexný jumper LC-SC 50/125 µm OM2 LSZH oranžový 2,0 mm 30 m

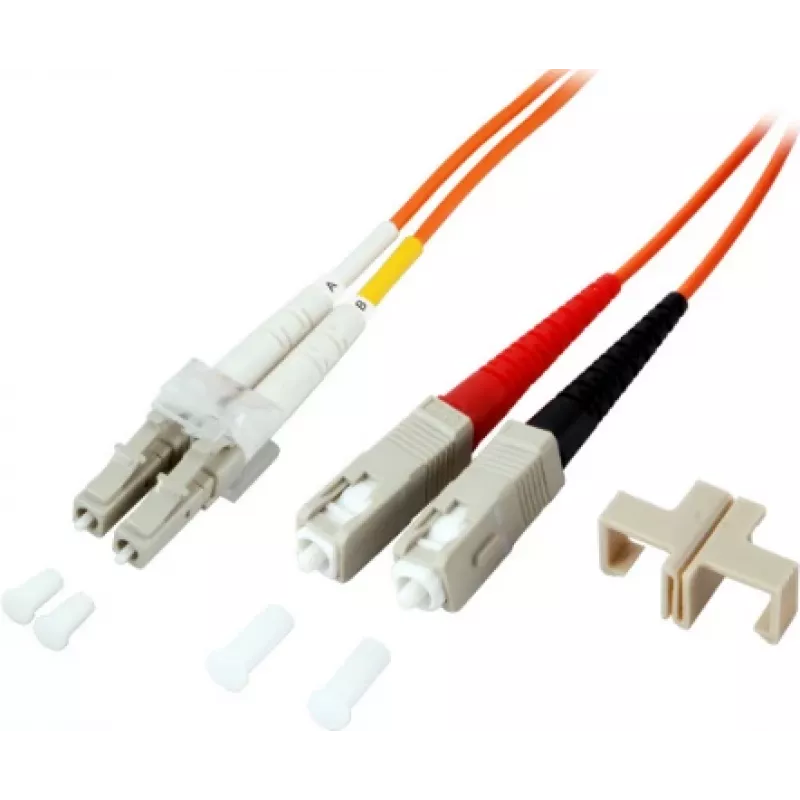

The EFB-Elektronik Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a 50/125 µm core/cladding diameter and OM2 multimode fiber, it supports high-bandwidth applications over medium distances. The cable features LC to SC connectors with UPC polish for low insertion loss and high return loss, ensuring optimal signal integrity.

Advantages

This patch cable offers excellent performance and durability. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting minimal smoke and no toxic halogen gases in case of fire. The orange jacket color provides easy identification, and the 2.0 mm cable diameter offers flexibility while maintaining robustness. Typical insertion loss of ≤0.3 dB and return loss ≥30 dB guarantee reliable connections.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx (Fiber to the x)
• Telecommunications

Key specifications

• Fiber type: Multimode OM2
• Core/Cladding: 50/125 µm
• Connectors: LC to SC, Duplex
• Polish: UPC
• Jacket: LSZH, Orange
• Cable diameter: 2.0 mm
• Length: 30 m
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating temperature: -20°C to +70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed network links.
