EFB-Elektronik ECOFIBER duplex jumper ST-ST 50/125 µm OM3 LSZH aqua 3,0 mm 1 m

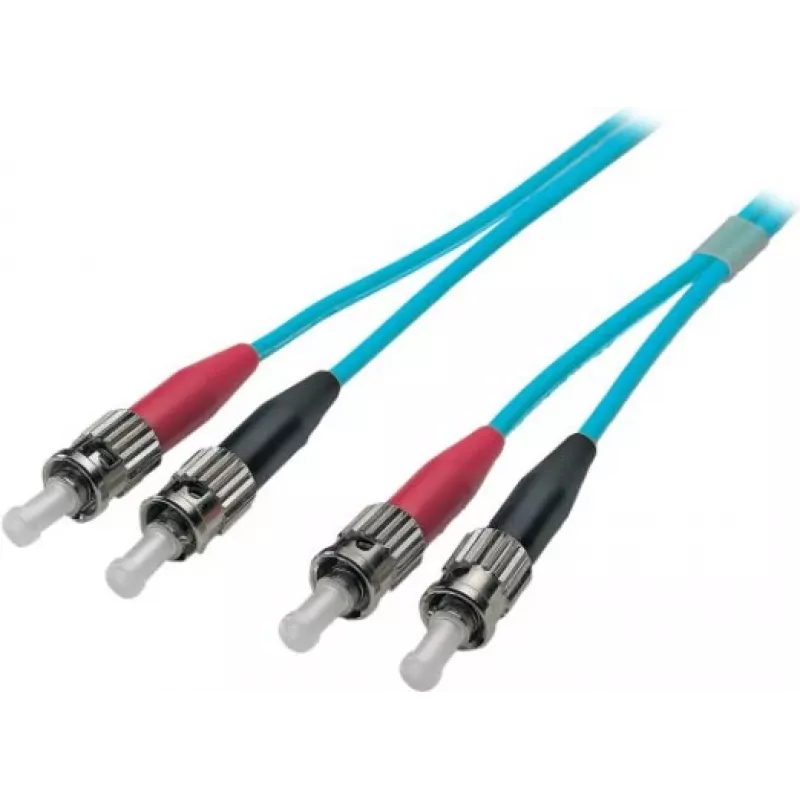

The EFB-Elektronik ECOFIBER Duplex Jumper ST-ST is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber, it supports 10 Gigabit Ethernet up to 300 meters and is backward compatible with lower speeds. The cable features a duplex configuration with ST connectors on both ends, a 50/125µm core/cladding, and a 3.0mm diameter LSZH (Low Smoke Zero Halogen) jacket in aqua color, ensuring safety and durability.

Advantages

This jumper offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for confined spaces. Its OM3 grade supports high-bandwidth applications like 40/100 Gigabit Ethernet over shorter distances.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• Fiber-to-the-desk installations
• High-speed server connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Fiber Grade: OM3
• Core/Cladding Diameter: 50/125 µm
• Connector Type A: ST
• Connector Type B: ST
• Cable Configuration: Duplex
• Cable Length: 1 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Diameter: 3.0 mm
• Maximum Data Rate: 10 Gbps (up to 300m), 40/100 Gbps (up to 100m)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, IEC 60794, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cleaning of connectors before installation. This cable is ideal for high-density patching areas where space and fire safety are concerns.
