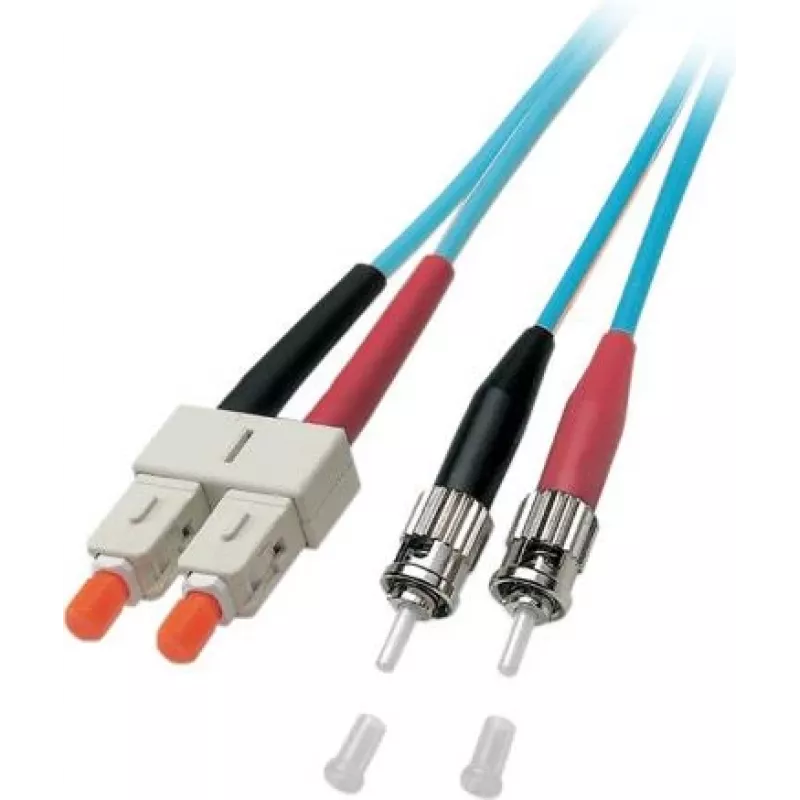

EFB-Elektronik ECOFIBER duplexný jumper SC-ST 50/125µ OM3 LSZH aqua 3,0 mm 15 m

The EFB-Elektronik ECOFIBER Duplex Jumper SC-ST 50/125µ OM3 LSZH Aqua 3.0mm 15m is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. This duplex jumper features SC to ST connectors, multimode OM3 fiber grade, and a robust LSZH (Low Smoke Zero Halogen) jacket in aqua color, ensuring safety and performance.

Advantages

Optimized for 10 Gigabit Ethernet applications, this cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for indoor installations. The 3.0mm cable diameter provides flexibility while maintaining durability.

Suitable for

• Data center cabling
• Telecommunications networks
• LAN and SAN infrastructure
• High-speed fiber optic connections

Key specifications

• Connector A: SC
• Connector B: ST
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 3.0 mm
• Number of Fibers: 2 (Duplex)
• Polarity: A-B (Crossed)
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC and ST ports. Store in a clean, dry environment.
