EFB-ELEKTRONIK I-V(ZN)H 2x1E 9/125µm OS2 Single-Mode Duplex Zipcord Patchkabel, LSZH, žltý, 2,8x5,7mm

The EFB-ELEKTRONIK I-V(ZN)H 2x1E 9/125µm OS2 ZIPCORD is a high-quality indoor fibre optic patch cable designed for reliable single-mode transmission. With a duplex zipcord construction and LSZH jacket, it ensures safety and performance in data centre and LAN environments.

Advantages

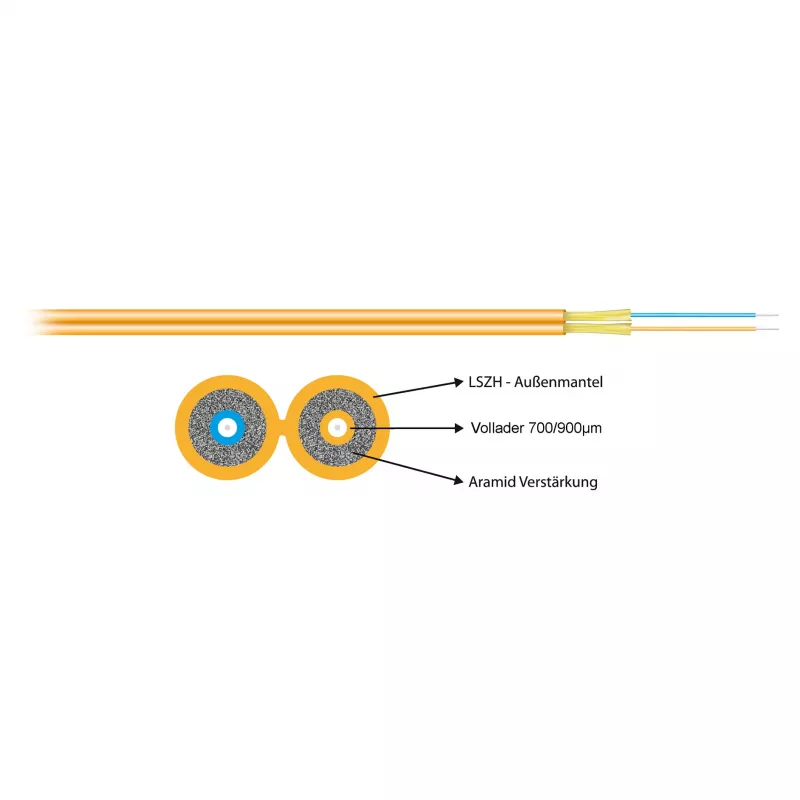

Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire. Aramid yarn strain relief provides robust tensile strength. The compact 2.8x5.7mm profile saves space in cable management.

Suitable for

• Fibre optic patching in data centres
• FTTx and LAN backbone connections
• Indoor single-mode network installations

Key specifications

• Fibre type: Single-mode OS2
• Core/cladding: 9/125 µm
• Number of fibres: 2 (duplex)
• Jacket material: LSZH
• Jacket colour: Yellow
• Outer dimensions: 2.8 x 5.7 mm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Min. bend radius: 20xOD (installation), 10xOD (operation)
• Operating temperature: -20°C to +70°C
• Flame retardancy: IEC 60332-1-2

Recommendations

For optimal performance, use with OS2-rated connectors and ensure proper bend radius during installation.
