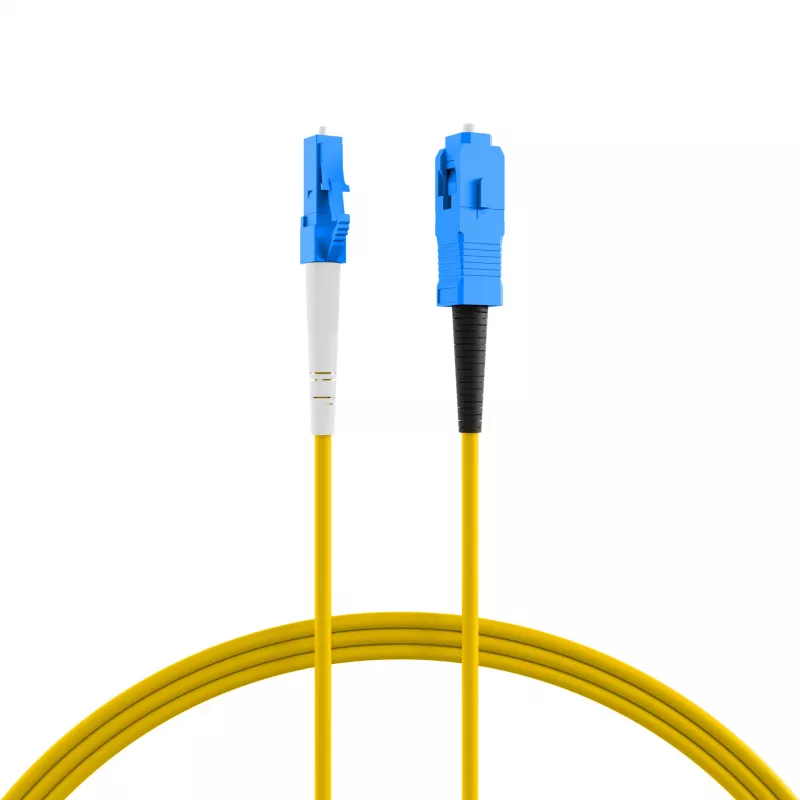

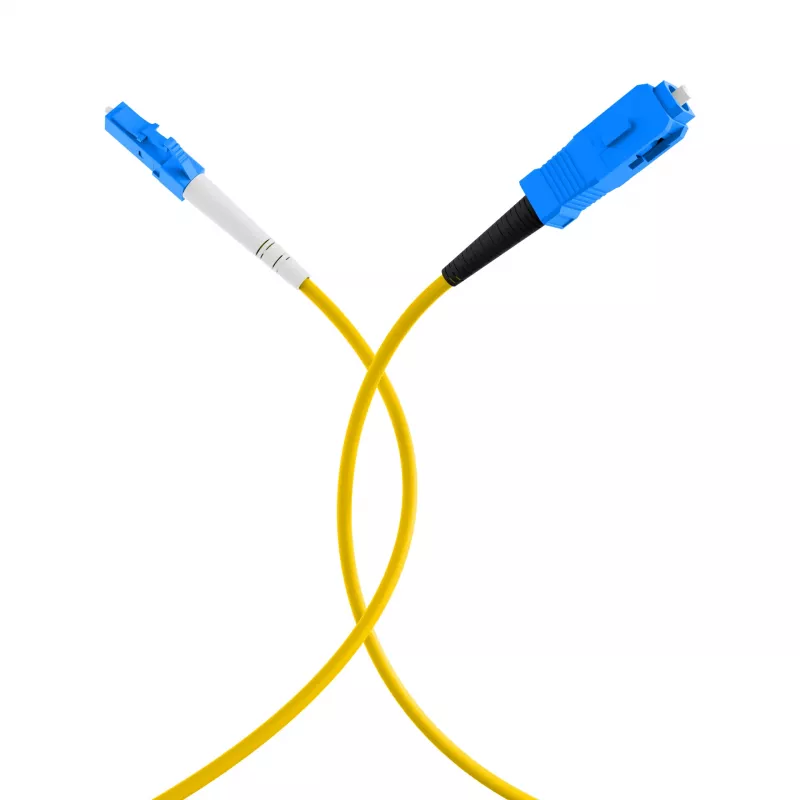

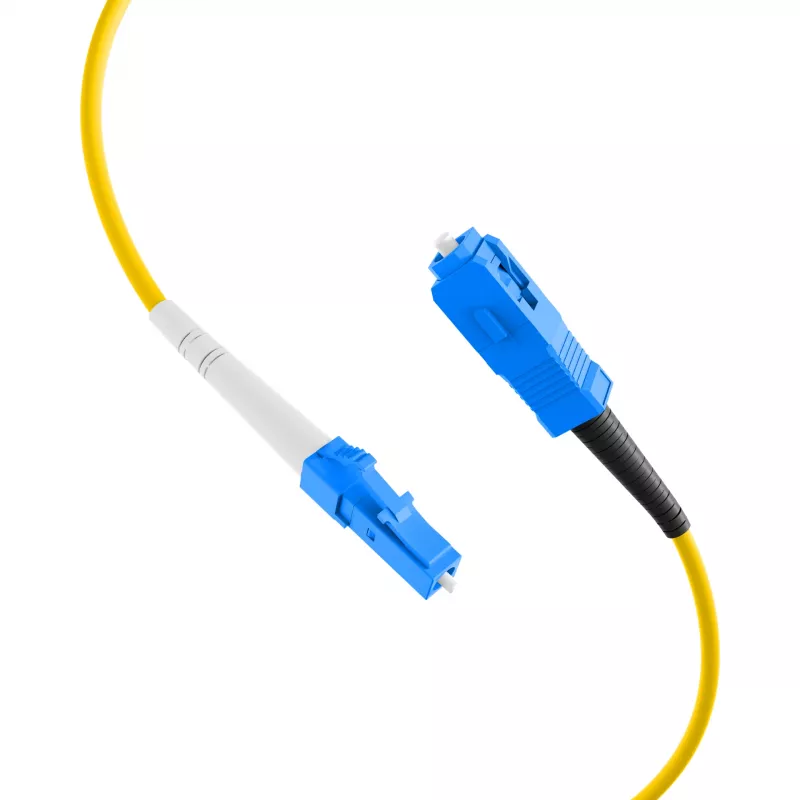

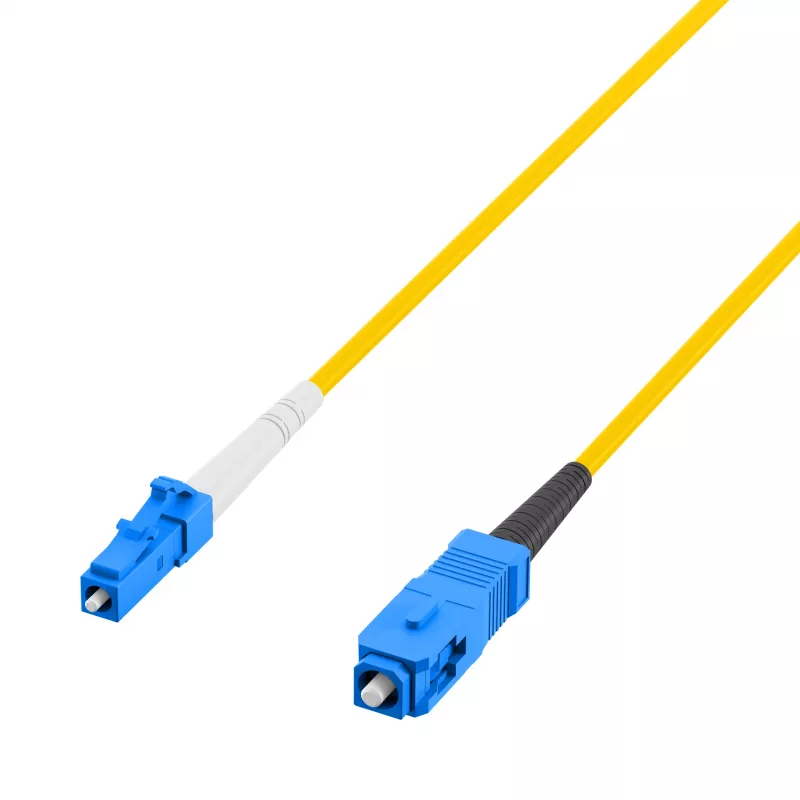

EFB-Elektronik Simplex LWL patch kábel LC-SC G657.A2 0,5m 2,0mm žltý 9/125µm

The EFB-Elektronik Simplex LWL Patchkabel LC-SC G657.A2 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, LAN, FTTx, and telecommunications networks. With a length of 0.5 meters and a 2.0 mm cable diameter, this yellow cable features LC to SC connectors and bend-insensitive G.657.A2 fiber, ensuring low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers exceptional durability and flexibility thanks to its bend-insensitive fiber and LSZH jacket, making it ideal for tight spaces and high-density environments. The UPC polished connectors provide low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring reliable signal transmission. Its compact 0.5 m length reduces cable clutter and improves airflow in racks.

Suitable for

• Data centers and server rooms
• Local area networks (LAN)
• FTTx (Fiber to the x) installations
• Telecommunications infrastructure
• Enterprise network cabling

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Configuration: Simplex
• Connector Type A: LC
• Connector Type B: SC
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 0.5 m
• Cable Diameter: 2.0 mm
• Jacket Color: Yellow
• Connector Polishing: UPC (Ultra Physical Contact)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Ideal for short-distance connections within racks or between patch panels.
