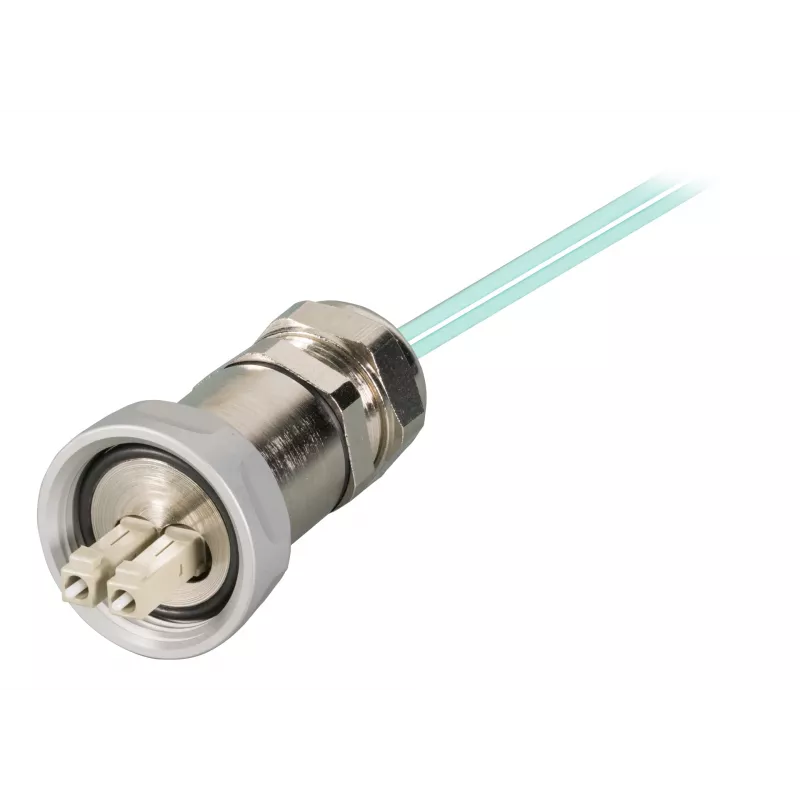

EFB IP67KVLCDOM3-2,0 káblová priechodka M25 LC-Duplex konektor

The EFB IP67KVLCDOM3-2,0 is a high-quality cable gland designed for fiber optic cables with LC-Duplex connectors. It features a robust nickel-plated brass construction and an M25 thread, providing reliable sealing and strain relief in industrial and outdoor environments. With an IP67 rating, it offers excellent protection against dust and water ingress, making it suitable for harsh conditions.

Advantages

This cable gland ensures secure and durable connections for fiber optic cables, with a sealing range of 3-7 mm. Its corrosion-resistant and UV-resistant materials guarantee long-term performance. The gland is halogen-free and compliant with RoHS and REACH standards, supporting environmental sustainability.

Suitable for

• Industrial automation and control systems
• Outdoor telecommunications and data networks
• Harsh environment installations requiring IP67 protection

Key specifications

• Product Type: Cable Gland
• Connector Type: LC-Duplex
• Thread Size: M25 x 1.5
• Ingress Protection: IP67
• Material: Nickel-plated Brass
• Cable Diameter: 3 - 7 mm
• Operating Temperature: -20°C to +80°C
• Seal Material: NBR
• Color: Metallic (Silver)
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure the cable diameter is within the specified range and the gland is properly tightened to maintain IP67 integrity. Suitable for use with LC-Duplex fiber optic connectors.
