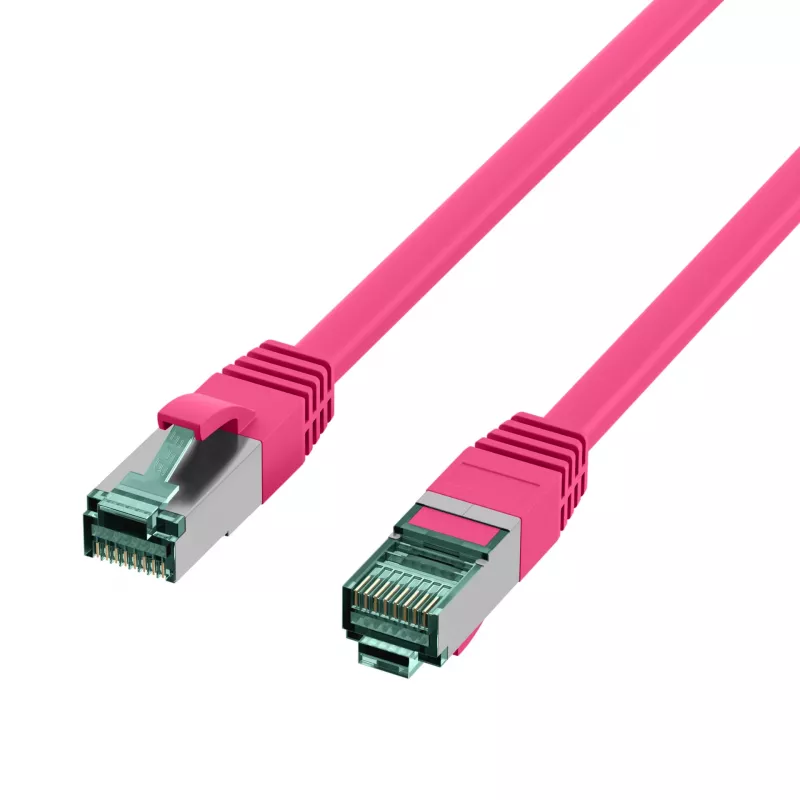

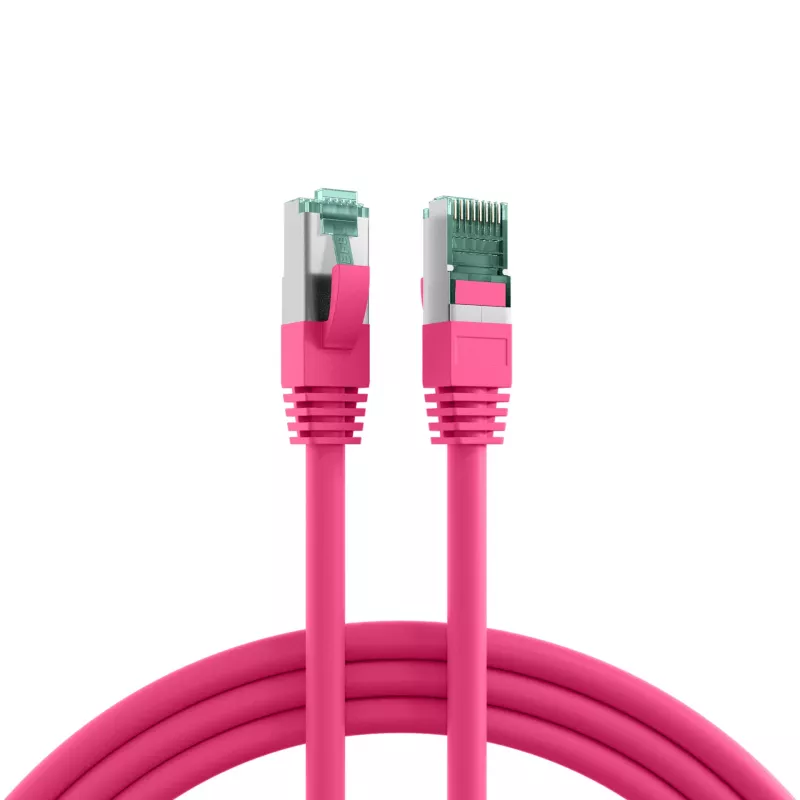

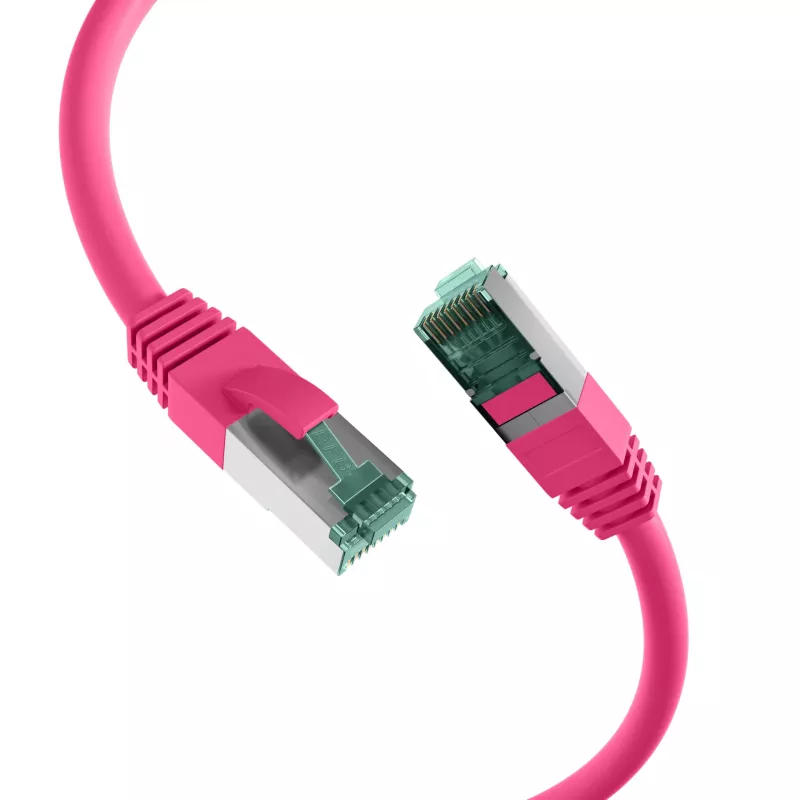

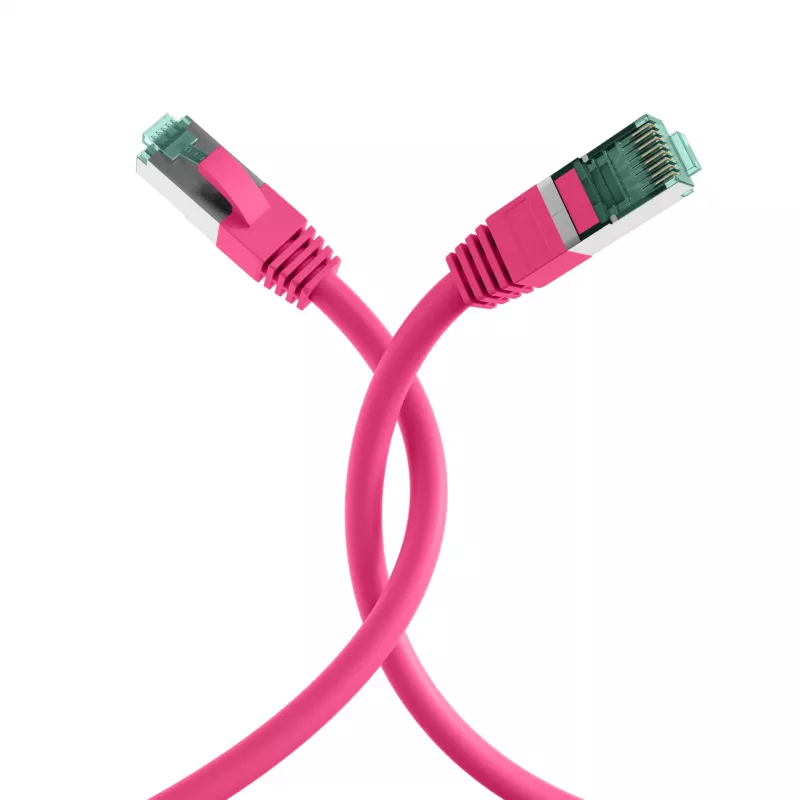

EFB Elektronik EFB MK600140MA - patch kábel Cat.6a, S/FTP, 40 m, magenta

The EFB Elektronik MK600140MA is a high-performance Cat.6a patch cable designed for demanding network environments. With a length of 40 meters and S/FTP shielding, it ensures reliable data transmission and protection against electromagnetic interference. Ideal for 10 Gigabit Ethernet applications, this cable is built with oxygen-free copper conductors and a low smoke zero halogen jacket for safety and durability.

Advantages

This patch cable offers superior signal integrity and minimal crosstalk thanks to its S/FTP (Screened/Foiled Twisted Pair) construction with pairs in metal foil. The gold-plated RJ45 connectors provide excellent conductivity and corrosion resistance. The snagless molded boot design protects the connector tabs during installation and removal. LSZH jacket reduces toxic smoke in case of fire, making it suitable for public and commercial buildings.

Suitable for

• Data centers and server rooms requiring high-speed connections
• 10GBASE-T networks (10 Gigabit Ethernet)
• Power over Ethernet (PoE) applications
• Structured cabling in offices, schools, and hospitals
• Any environment where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6a (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair), PIMF
• Length: 40 m
• Color: Magenta
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Conductor Material: Copper (OFC - Oxygen-Free Copper)
• Conductor Gauge: AWG 26/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Wiring Standard: TIA/EIA 568B
• Boot Type: Snagless, Molded
• Flammability Rating: IEC 60332-1
• Impedance: 100 Ohm
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, RoHS, CE

Recommendations

For optimal performance, ensure that all components in the network path (switches, patch panels, and network cards) support Cat.6a specifications. This cable is backward compatible with Cat.6 and Cat.5e networks.
