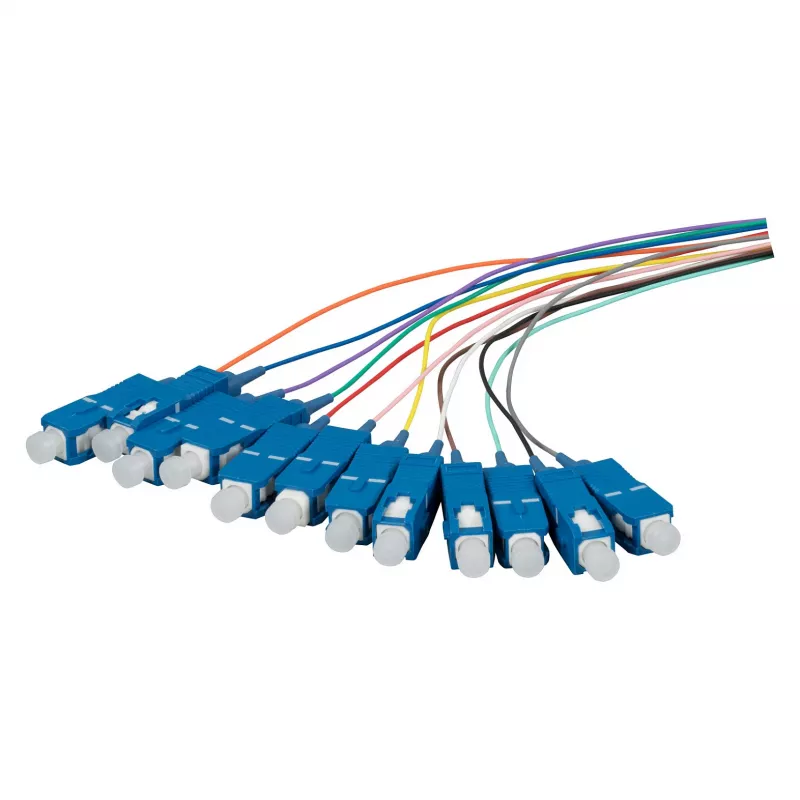

EFB optický pigtail SC OS2 G657A2 12-farebná sada 2m

Reliable, low-loss splices are the foundation of any FTTH deployment, and achieving them consistently across multiple terminations can be a challenge. This 12-piece set of pre-connectorized SC pigtails from EFB eliminates that uncertainty, providing colour-coded, bend-insensitive single-mode pigtails that are ready for mass fusion splicing to drop cables.

Who is it for

Network installers, telecom engineers, and data centre technicians who need a dependable, standardized solution for terminating single-mode fibre. Ideal for FTTH distribution networks, enterprise LAN upgrades, and telecommunications backbone maintenance where fast, accurate splicing is essential.

Main features

• 12 individually colour-coded pigtails per DIN VDE 0888 for quick fibre identification and organized cable management.
• Bend-insensitive ITU-T G.657.A2 fibre with 9/125 µm core/cladding, optimized for tight bends in confined spaces.
• Factory-polished SC/UPC connectors deliver insertion loss ≤0.3 dB and return loss ≥50 dB for high signal integrity.
• Unconnectorized ends are pre-stripped and cleaved, ready for fusion splicing to the distribution cable.
• Each pigtail is 2 metres long with a 0.9 mm buffer coating, offering flexibility and ease of handling.
• Full compliance with RoHS and CE directives, ensuring safety and environmental responsibility.

Specifications

• Product Type: Fibre Optic Pigtail Set
• Connector: SC/UPC
• Fiber Mode: Single-mode
• Fiber Standard: ITU-T G.657.A2 (Bend-insensitive)
• Core/Cladding Diameter: 9/125 µm
• Number of Fibers: 12
• Pigtail Length: 2 m
• Buffer Diameter: 0.9 mm
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 7.5 mm
• Compliance: RoHS, CE

Tips

Store pigtails in a clean, dry environment and avoid bending beyond the minimum radius to maintain splice performance. Use a fusion splicer calibrated for G.657.A2 fibre for optimal results.
