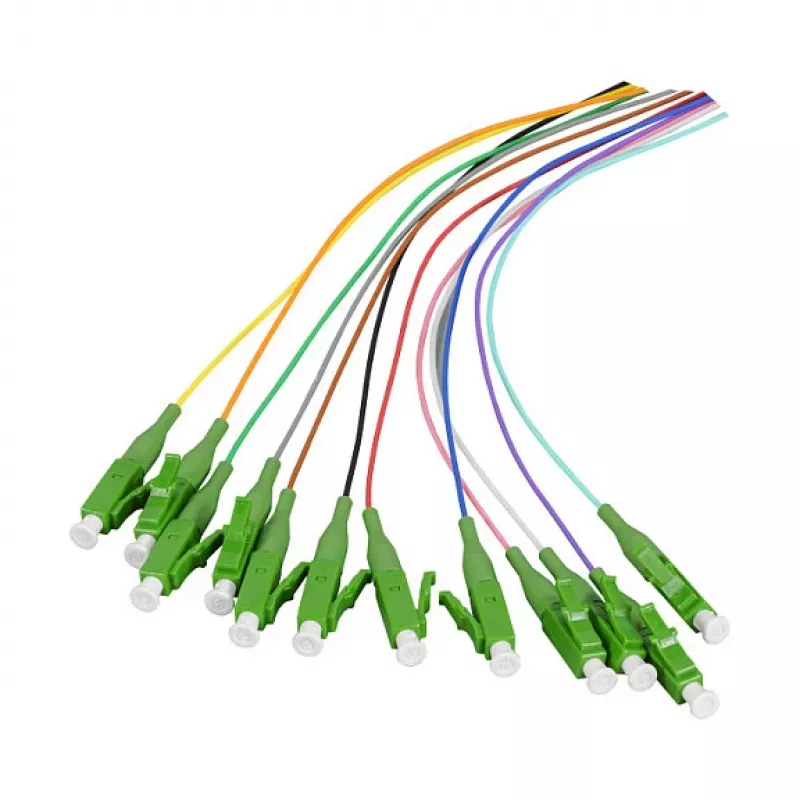

EFB Elektronik FTTH pigtail LC/APC 12 pigtailov 9/125µm G.657.A2 2m

The EFB Elektronik FTTH Pigtail LC/APC is a high-quality fiber optic pigtail set designed for FTTH, telecommunications, data centers, and LAN applications. This set includes 12 individual pigtails, each with a length of 2 meters, featuring LC/APC connectors and single-mode 9/125µm G.657.A2 fiber. The pigtails are color-coded for easy identification and come with a green connector body for quick visual recognition of APC polish.

Advantages

Pre-terminated with LC/APC connectors for low insertion loss (≤0.3 dB) and high return loss (≥60 dB). The G.657.A2 fiber offers excellent bend performance, making installation in tight spaces easier. LSZH buffer material ensures safety in case of fire. The set of 12 pigtails provides a complete solution for multi-fiber termination.

Suitable for

• FTTH (Fiber to the Home) installations
• Telecommunications networks
• Data center cabling
• LAN and enterprise networks

Key specifications

• Connector: LC/APC
• Fiber type: Single-mode 9/125µm
• Fiber standard: ITU-T G.657.A2
• Number of pigtails: 12
• Length: 2 m
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Buffer diameter: 0.9 mm
• Buffer material: LSZH
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Ferrule material: Zirconia ceramic
• Connector color: Green
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with matching LC/APC adapters and ensure proper cleaning before connection. Ideal for high-density FTTH deployments where bend-insensitive fiber is required.
