EFB Elektronik I-V(ZN)H 2G 50/125µm 2mm fialový OM4 Duplex optický kábel, LSZH

The EFB Elektronik I-V(ZN)H 2G 50/125µm 2mm Violet OM4 Duplex Fiber Optic Cable is a high-performance indoor cable designed for reliable data transmission in demanding network environments. With its OM4 multimode fiber, it supports high-bandwidth applications over longer distances, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This cable offers exceptional bandwidth and low attenuation, ensuring efficient data transfer for 10 Gigabit Ethernet and beyond. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire, making it suitable for use in confined spaces and public areas. Its durable construction with a 2mm outer diameter provides flexibility for easy installation while maintaining robust protection.

Suitable for

• Data center cabling
• Enterprise network backbones
• Telecommunications rooms
• Indoor fiber optic installations requiring high bandwidth
• Applications where fire safety is critical (LSZH jacket)

Key specifications

• Fiber Type: Multimode OM4
• Fiber Count: 2 (Duplex)
• Core/Cladding: 50/125 µm

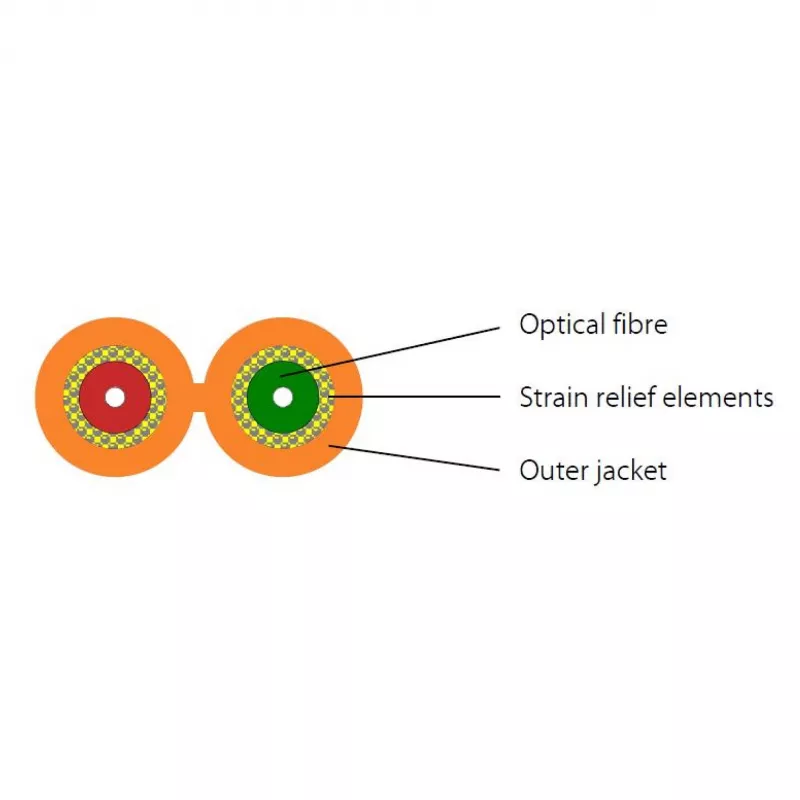

• Cable Construction: I-V(ZN)H (Indoor, LSZH, halogen-free)
• Jacket Material: LSZH
• Jacket Color: Violet
• Cable Outer Diameter: 2 mm
• Attenuation @ 850nm: < 2.3 dB/km
• Attenuation @ 1300nm: < 0.6 dB/km
• Bandwidth (EMB) @ 850nm: 4700 MHz·km
• Bandwidth (OFL) @ 1300nm: 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair this cable with OM4-compatible connectors and patch panels. Ensure proper handling and installation to maintain bend radius and avoid signal loss. This cable is not pre-terminated; connectors must be installed separately.
