EFB Elektronik INFRALAN I-B(ZN)BH 12G 50/125µm OM3 LSZH aqua CPR B2ca interiérový optický kábel

The EFB Elektronik INFRALAN I-B(ZN)BH 12G 50/125µm OM3 LSZH Aqua CPR B2ca is a high-performance indoor fiber optic cable designed for reliable data transmission in structured cabling systems. With 12 multimode fibers, OM3 grade, and a low smoke zero halogen (LSZH) sheath, this cable ensures safety and performance in building installations.

Advantages

This cable offers excellent modal bandwidth for 10 Gigabit Ethernet applications up to 300 meters. The LSZH sheath minimizes toxic and corrosive emissions in case of fire, making it ideal for use in public buildings, data centers, and industrial environments. The CPR B2ca classification guarantees compliance with European fire safety standards.

Suitable for

• Indoor backbone cabling in data centers
• LAN networks requiring high bandwidth
• Installations in plenum spaces and risers
• Applications demanding low smoke and halogen-free materials

Key specifications

• Fiber Type: Multimode (MM) OM3
• Fiber Count: 12
• Core/Cladding: 50/125 µm

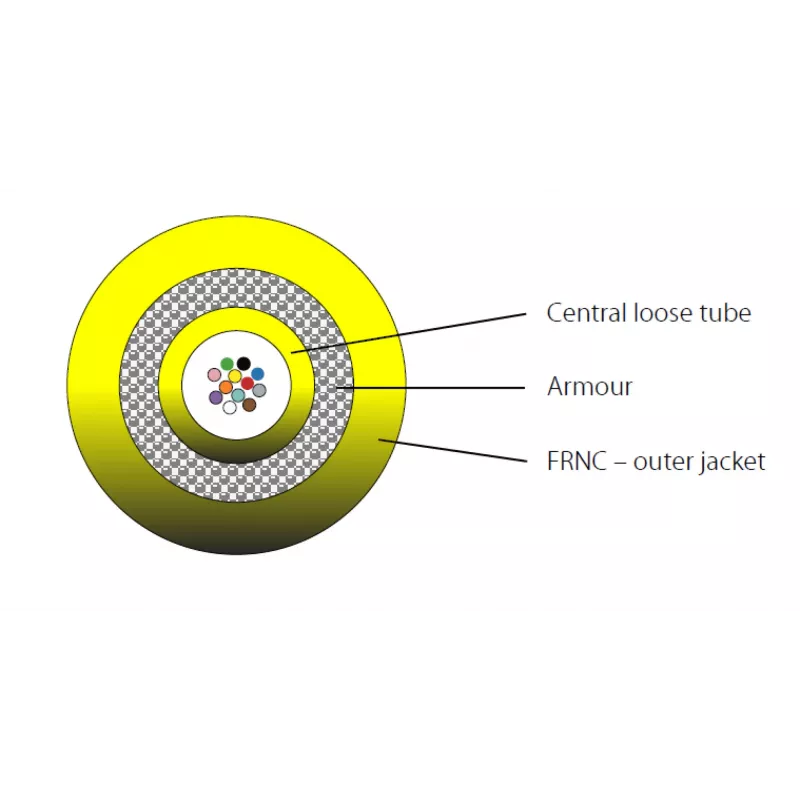

• Cable Construction: Loose tube
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Sheath Color: Aqua
• CPR Class: B2ca-s1a,d1,a1
• Attenuation at 850 nm: ≤ 2.5 dB/km
• Attenuation at 1300 nm: ≤ 0.8 dB/km
• Modal Bandwidth at 850 nm (EMB): ≥ 2000 MHz·km
• Modal Bandwidth at 1300 nm (OFL): ≥ 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Outer Diameter: Approx. 7.0 mm
• Standards: IEC 60794-1, EN 50173-1, ISO/IEC 11801

Recommendations

For optimal performance, use with OM3-compatible connectors and patch panels. Ensure proper cable management to maintain bend radius specifications.
