EFB Elektronik INFRALAN U-DQ(ZN)BH 24G 50/125 OM4 LSZH čierny CPR Dca multimódový optický kábel

The EFB Elektronik INFRALAN U-DQ(ZN)BH 24G 50/125 OM4 LSZH Black CPR Dca is a high-performance multimode fiber optic cable designed for universal indoor/outdoor applications. With 24 fibers and OM4 grade, it supports high-bandwidth data transmission over medium distances, ideal for data centers, enterprise networks, and campus backbones.

Advantages

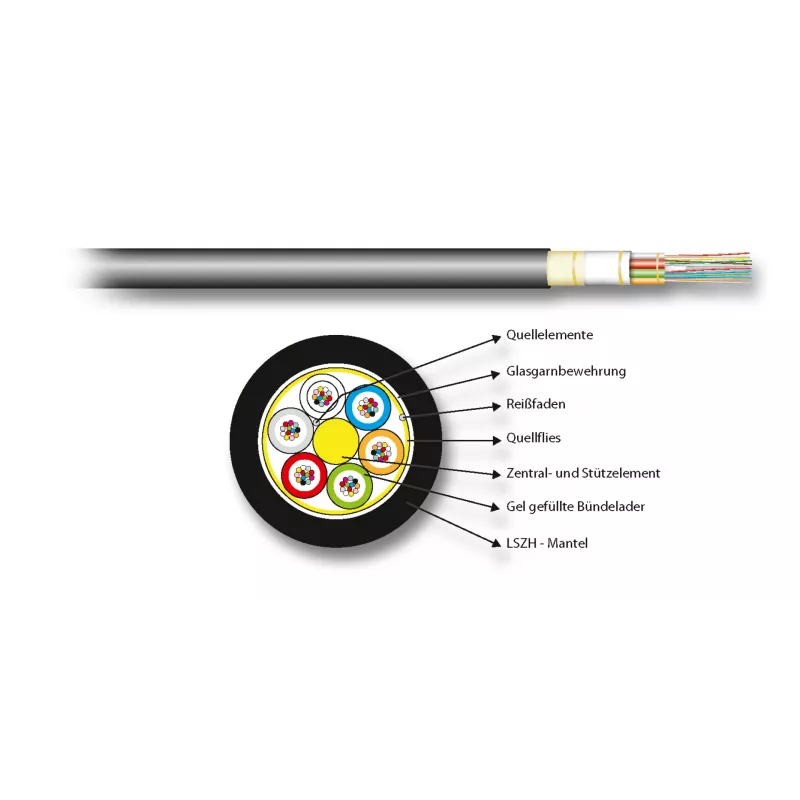

This cable offers low attenuation and high modal bandwidth, ensuring reliable signal integrity. The LSZH jacket provides safety in confined spaces, while the loose tube, gel-filled construction offers protection against moisture and mechanical stress. CPR Dca classification ensures compliance with European fire safety standards.

Suitable for

• Data center interconnects
• Enterprise local area networks (LANs)
• Fiber-to-the-desk (FTTD) installations
• Indoor/outdoor campus backbones
• High-speed network applications requiring OM4 performance

Key specifications

• Fiber Type: Multimode OM4
• Fiber Count: 24
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Black
• CPR Classification: Dca
• Attenuation @ 850nm: ≤ 2.3 dB/km
• Attenuation @ 1300nm: ≤ 0.6 dB/km
• Modal Bandwidth @ 850nm: 4700 MHz·km
• Modal Bandwidth @ 1300nm: 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +70°C
• Outer Diameter: ~9.0 mm
• Standards: IEC 60794-1, EN 50575

Recommendations

For optimal performance, use with OM4-compatible connectors and ensure proper installation practices. This cable is ideal for high-speed networks requiring low latency and high bandwidth.
