EFB Elektronik INFRALAN U-DQ(ZN)BH 24G 50/125µm OM3 LSZH čierny CPR-Dca optický kábel

The EFB Elektronik INFRALAN U-DQ(ZN)BH 24G 50/125µm OM3 LSZH Black CPR-Dca is a high-performance loose tube fiber optic cable designed for universal indoor/outdoor applications. With 24 multimode fibers (OM3, 50/125µm) and a low smoke zero halogen (LSZH) outer sheath, this cable ensures reliable data transmission with minimal environmental impact. It meets CPR fire class Dca-s2, d2, a1, making it suitable for installations requiring enhanced fire safety.

Advantages

This cable offers excellent attenuation performance (≤2.8 dB/km at 850nm, ≤1.0 dB/km at 1300nm) and high modal bandwidth (1500 MHz·km OFL at 850nm, 2000 MHz·km EMB at 850nm), supporting high-speed data rates over long distances. The LSZH sheath reduces toxic smoke emissions in case of fire, while the non-metallic central strength member and swellable yarns provide rodent protection and UV resistance. Its robust construction ensures durability in harsh environments.

Suitable for

• Indoor/outdoor backbone cabling in data centers, enterprise networks, and telecom installations
• Duct and universal applications requiring fire-rated cables (CPR Dca)
• High-bandwidth applications such as 10 Gigabit Ethernet and beyond

Key specifications

• Fiber Type: Multimode OM3 (50/125µm)
• Number of Fibers: 24

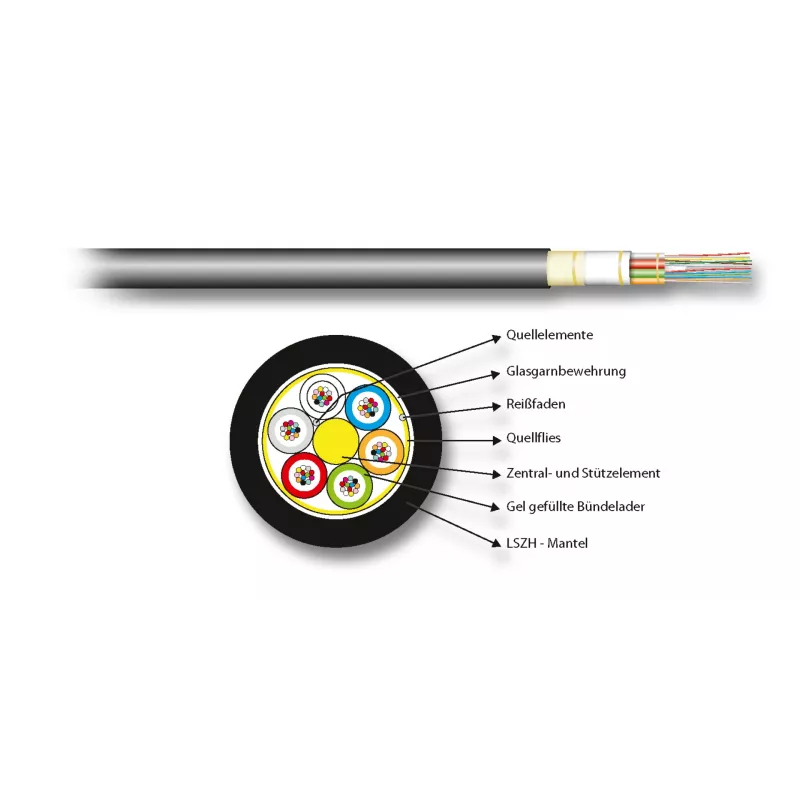

• Cable Construction: Loose Tube (U-DQ(ZN)BH)
• Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
• Outer Sheath Color: Black
• CPR Fire Class: Dca-s2, d2, a1
• Attenuation: ≤2.8 dB/km @ 850nm, ≤1.0 dB/km @ 1300nm
• Modal Bandwidth: 1500 MHz·km (OFL) @ 850nm, 500 MHz·km (OFL) @ 1300nm
• Effective Modal Bandwidth: 2000 MHz·km @ 850nm
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• UV Resistant: Yes
• Rodent Protection: Yes

Recommendations

For optimal performance, pair this cable with OM3-compatible connectors and patch panels. Ensure proper installation by trained professionals to maintain attenuation and bandwidth specifications. This cable is ideal for structured cabling systems requiring high reliability and fire safety compliance.
