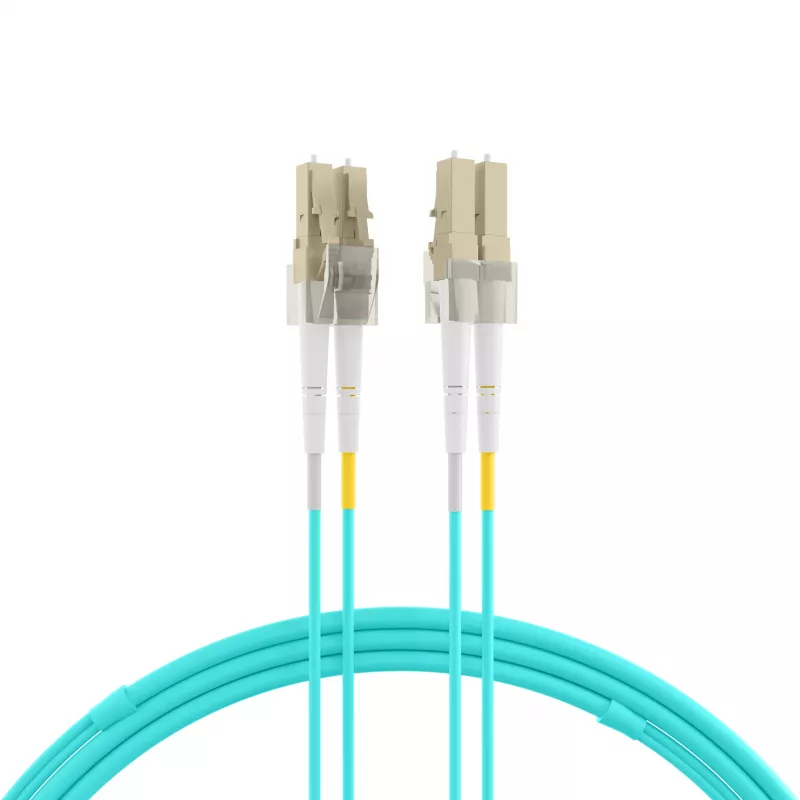

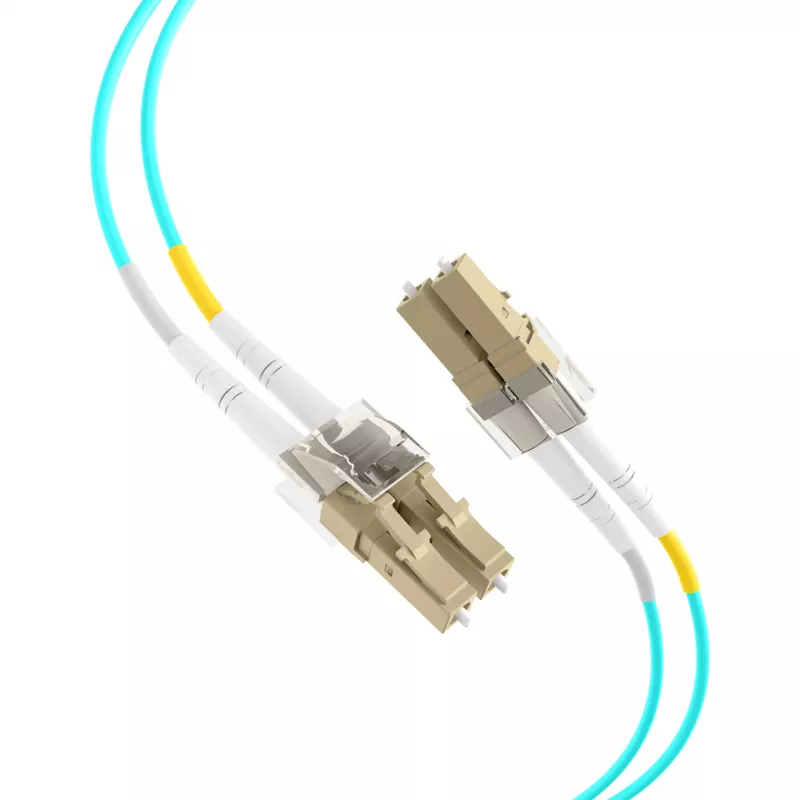

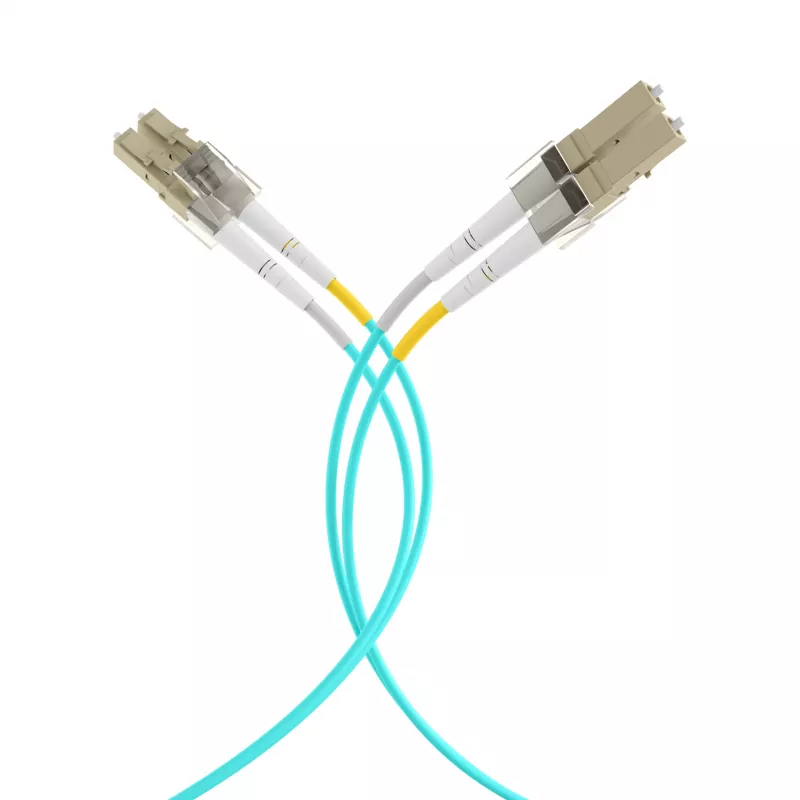

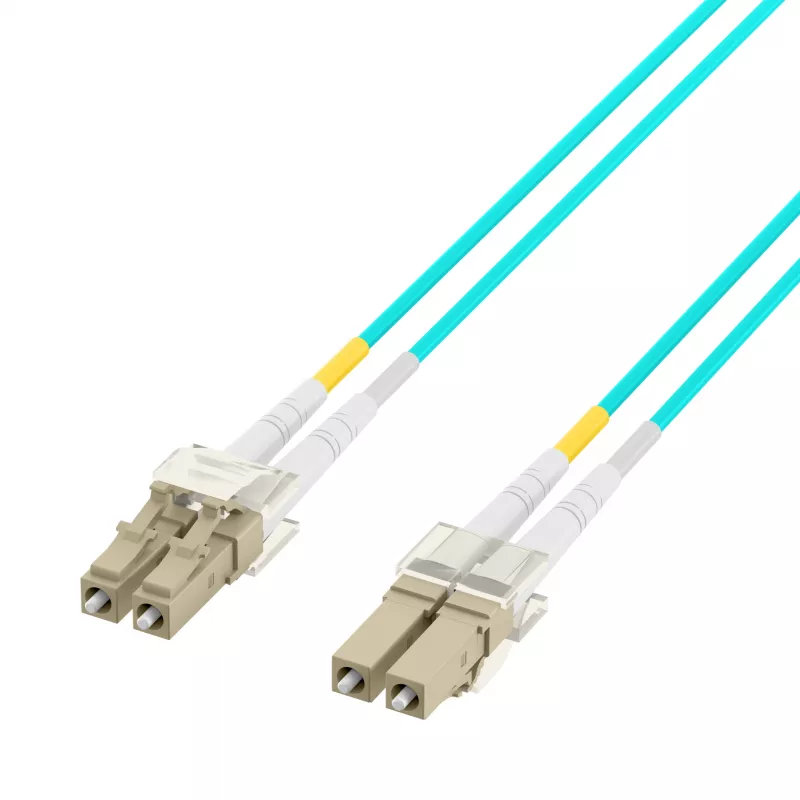

EFB Elektronik IPL-DF-LCULCU-3-0050 sklenený patch kábel, 0,5 m, OM3, LC/UPC na LC/UPC, Duplex, LSZH, aqua

The EFB Elektronik IPL-DF-LCULCU-3-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters, this duplex OM3 multimode cable features LC/UPC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the aqua color facilitates easy identification. Ideal for 10 Gigabit Ethernet, data centers, SAN, and LAN applications, this cable meets RoHS and REACH standards and complies with IEC 60332-1 for fire safety.

Advantages

This patch cable offers exceptional performance with a maximum insertion loss of 0.3 dB and a minimum return loss of 30 dB, ensuring minimal signal degradation. The 50/125 µm core/cladding diameter and OM3 fiber type support high-bandwidth applications up to 1500 MHz·km at 850 nm. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for use in public buildings and data centers. Its duplex design allows for simultaneous bidirectional communication, and the compact 0.5 m length helps reduce cable clutter in patch panels.

Suitable for

• 10 Gigabit Ethernet networks
• Data center interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Connector Type: LC/UPC to LC/UPC
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Minimum Bending Radius: 30 mm
• Insertion Loss (max): 0.3 dB
• Return Loss (min): 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Attenuation at 850nm: 2.8 dB/km
• Attenuation at 1300nm: 0.8 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Standards: RoHS, REACH, IEC 60332-1

Recommendations

For optimal performance, ensure that connectors are clean before installation. Use appropriate cable management to maintain the minimum bending radius. This cable is compatible with standard LC/UPC ports and is ideal for high-speed data transmission in structured cabling systems.
