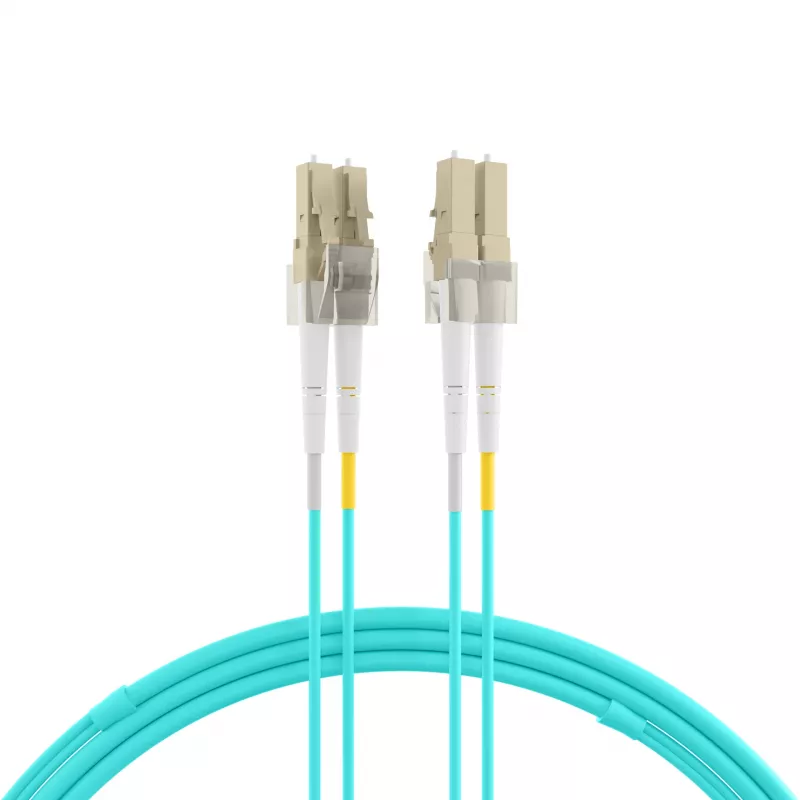

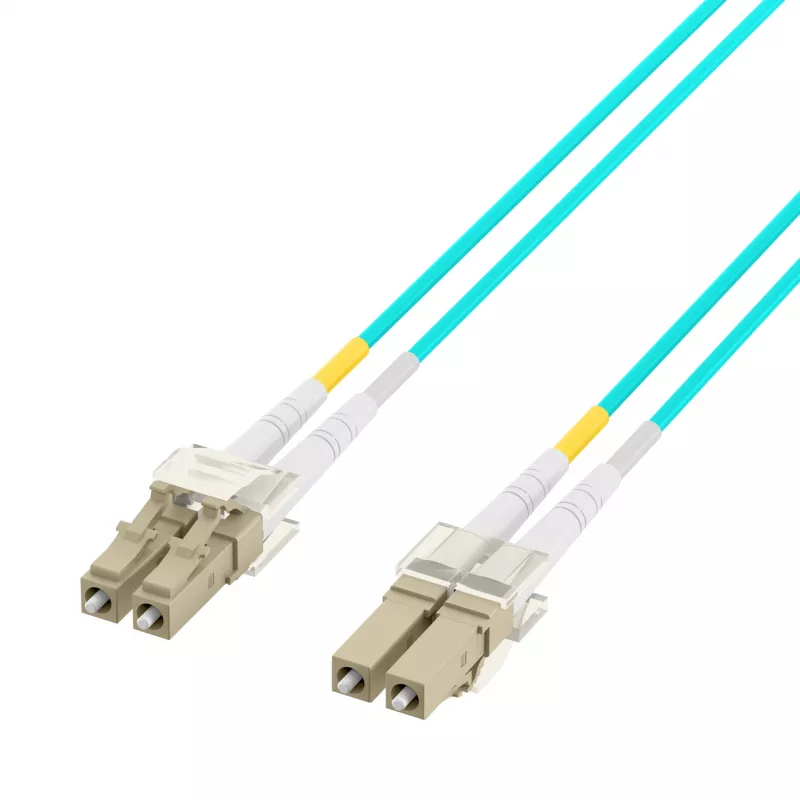

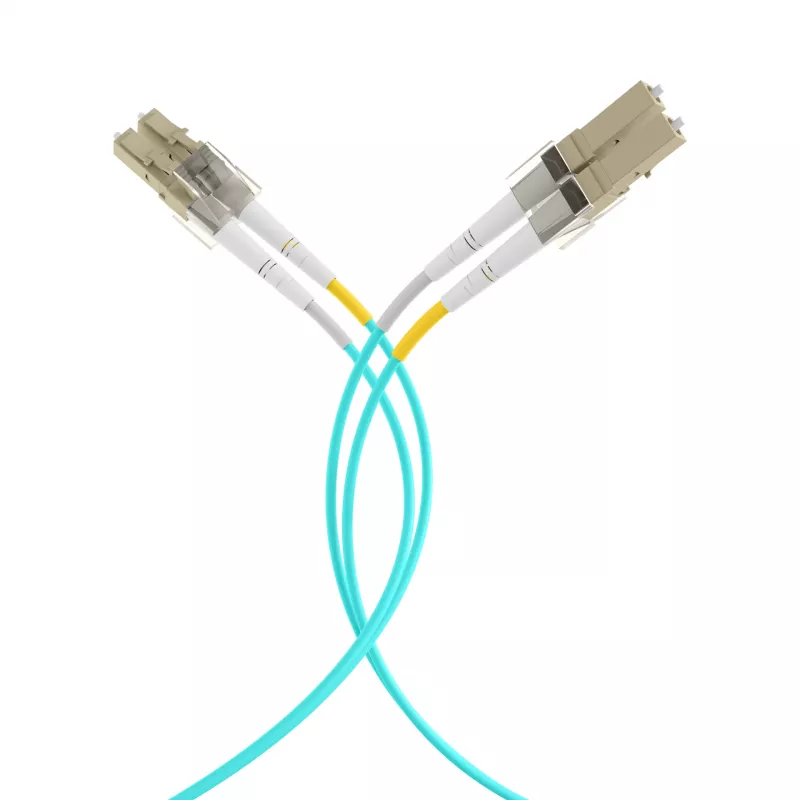

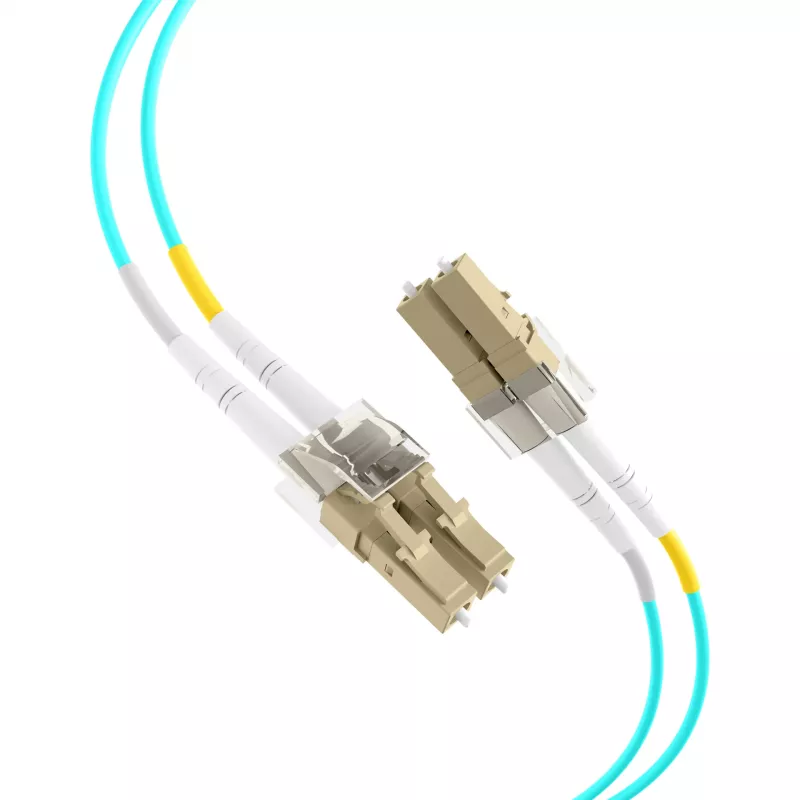

EFB Elektronik IPL-DF-LCULCU-3-0300 Duplex OM3 LC/UPC na LC/UPC optický patch kábel 3 m Aqua LSZH

The EFB Elektronik IPL-DF-LCULCU-3-0300 is a high-performance duplex multimode fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 fiber class and LC/UPC connectors on both ends, this 3-meter cable supports 10G, 40G, and 100G Ethernet applications, making it ideal for data centers, SANs, and LANs.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation and optimal performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The aqua-colored jacket allows for easy identification of OM3 fiber.

Suitable for

• Data centers requiring high-speed interconnects
• Storage Area Networks (SANs)
• Local Area Networks (LANs) with 10G/40G/100G Ethernet
• Telecommunications and enterprise networking

Key specifications

• Cable Type: Duplex
• Fiber Type: Multimode OM3
• Connector Type: LC/UPC to LC/UPC
• Length: 3 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, IEC 60794, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use in structured cabling systems.
