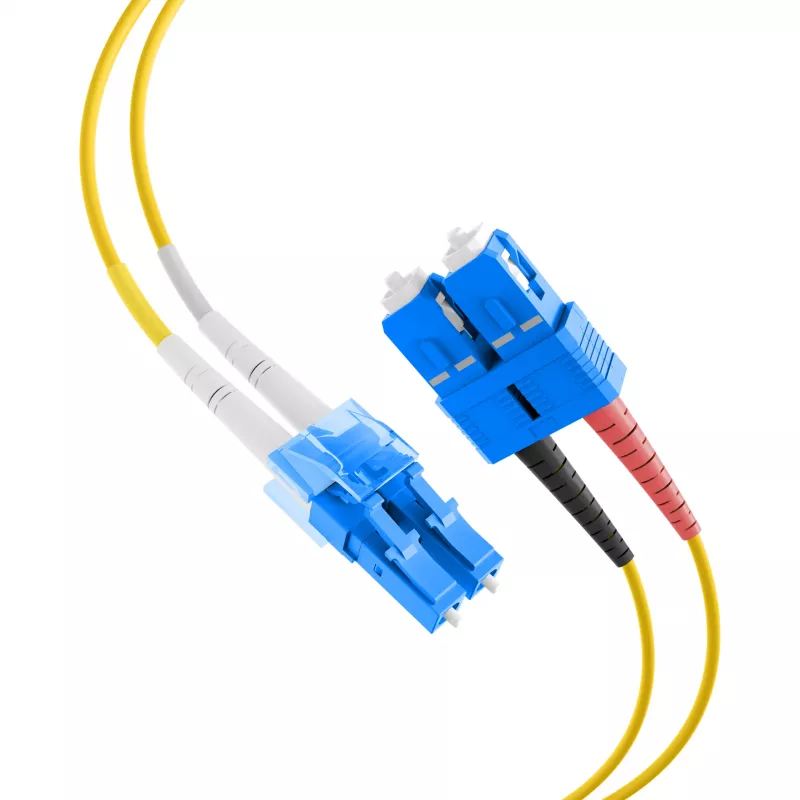

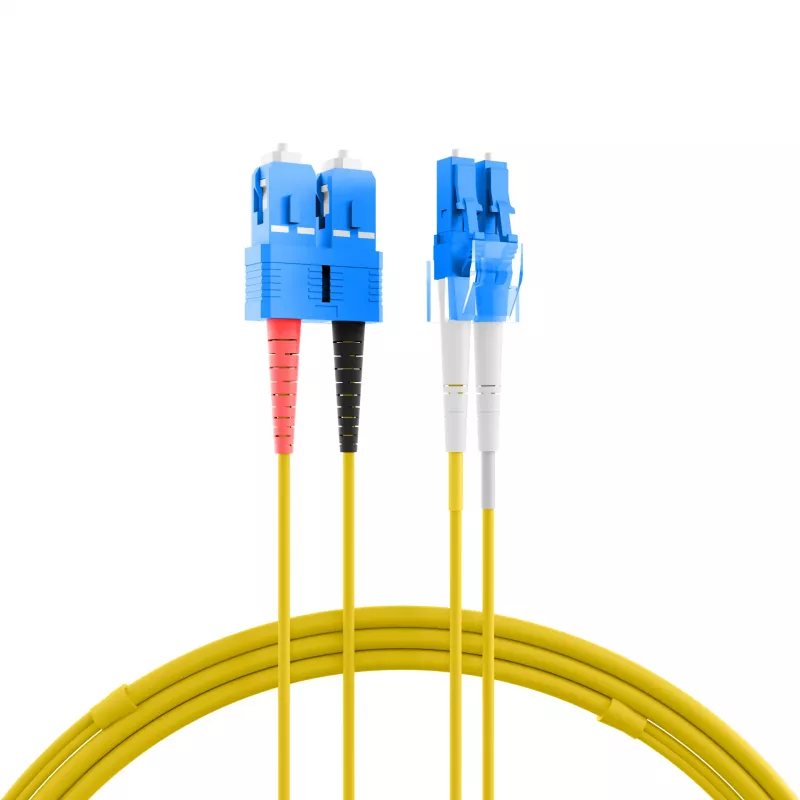

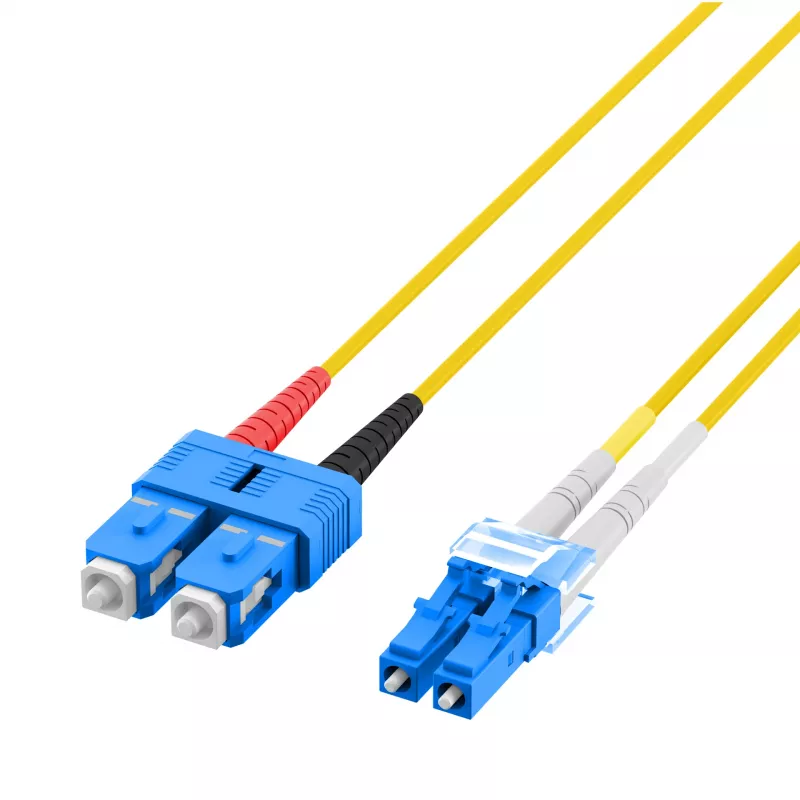

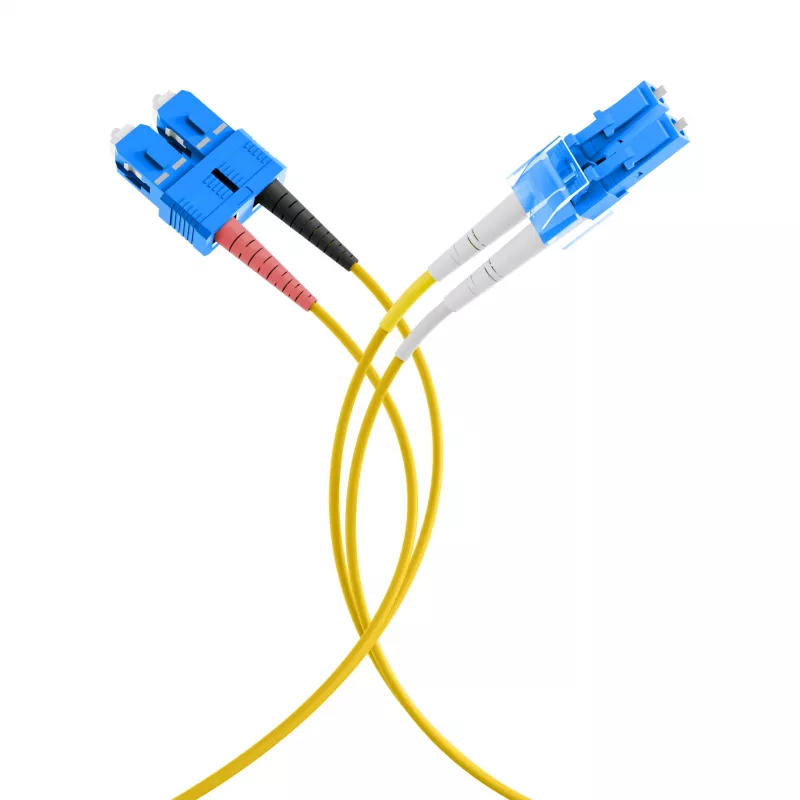

EFB Elektronik IPL-DF-LCUSCU-2-0050 OS2 Duplex patch kábel LC/UPC na SC/UPC 0,5 m žltá LSZH

The EFB Elektronik IPL-DF-LCUSCU-2-0050 is a high-quality OS2 single-mode duplex patch cable designed for reliable fiber optic connections in indoor environments. With LC/UPC to SC/UPC connectors and a length of 0.5 meters, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, and enterprise networks.

Advantages

This patch cable offers exceptional performance with insertion loss ≤0.3 dB and return loss ≥50 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes. The duplex configuration supports bidirectional communication, and the yellow jacket color allows for easy identification of single-mode cables.

Suitable for

• Fiber optic network installations in data centers
• Telecommunications infrastructure
• Enterprise LAN and WAN connections
• FTTx and CATV systems

Key specifications

• Fiber Type: OS2 Single-mode
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Configuration: Duplex
• Cable Length: 0.5 m
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Cable Diameter: 2.8 mm
• Polishing Type: UPC
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.22 dB/km
• Operating Temperature: -20°C to 70°C
• Standards Compliance: RoHS, IEC 61754, TIA/EIA-604
• Application: Indoor
• Fiber Count: 2
• Minimum Bend Radius: 10 mm
• Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC and SC ports. Use appropriate cable management to maintain bend radius.
