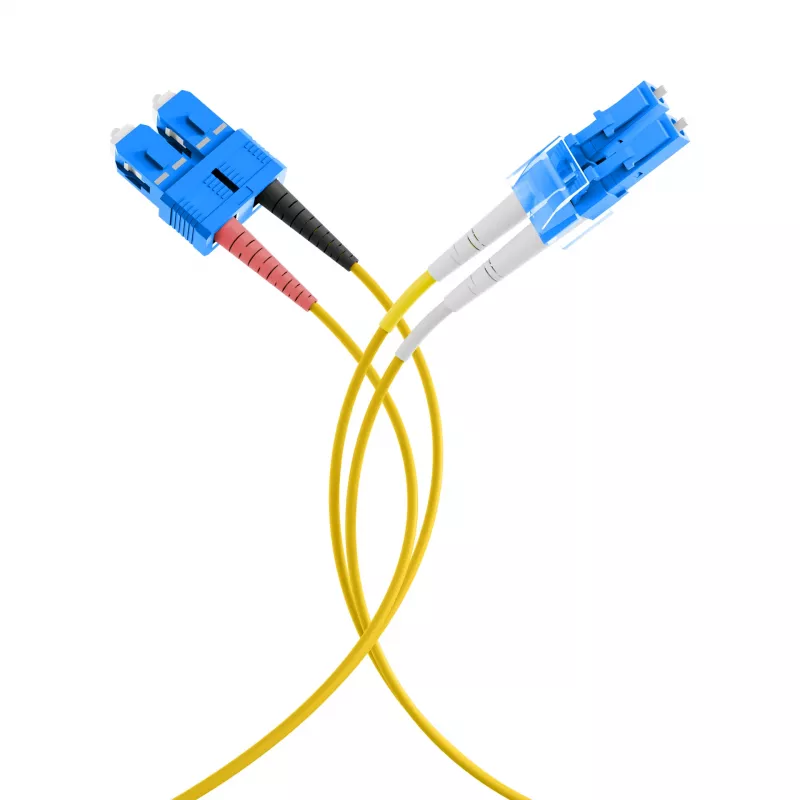

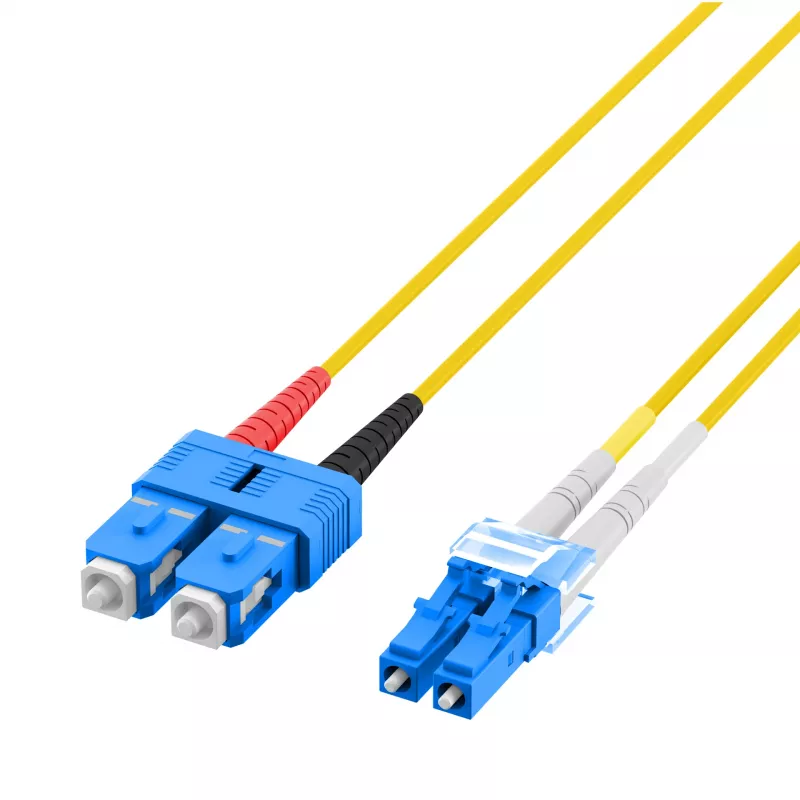

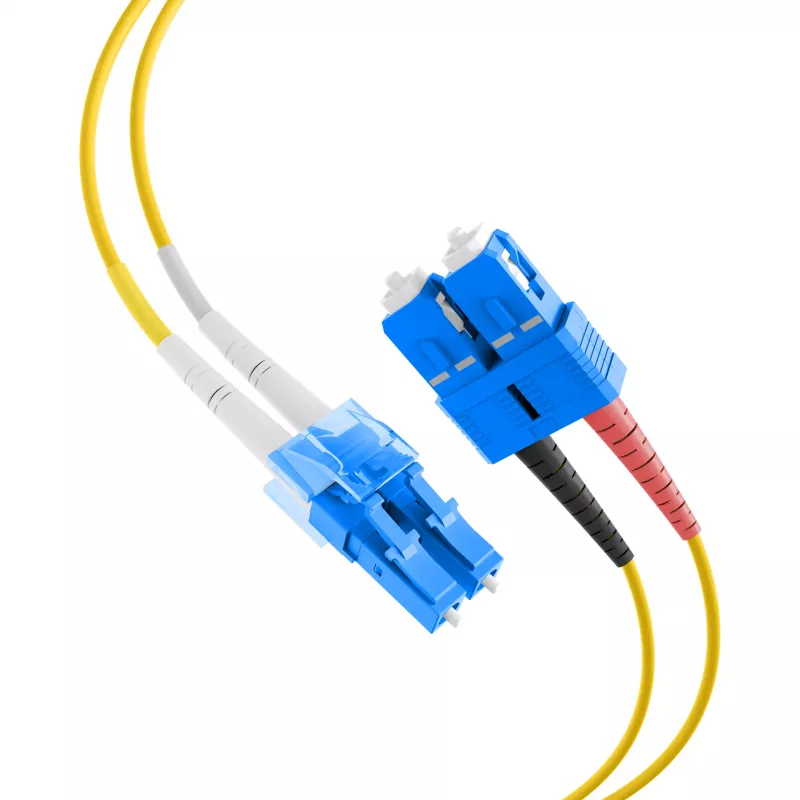

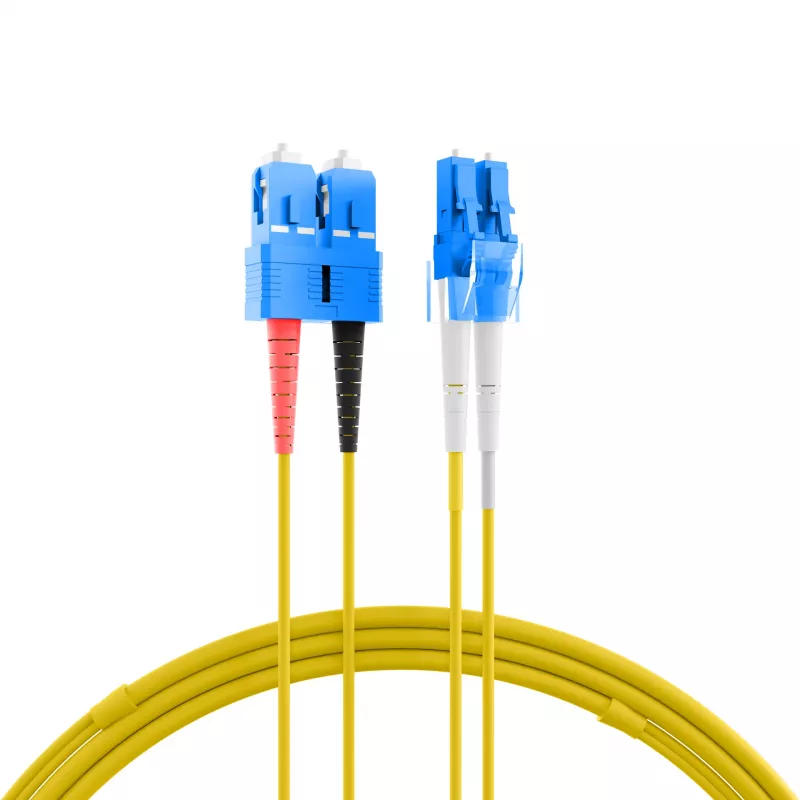

EFB Elektronik IPL-DF-LCUSCU-2-0200 Duplex OS2 jednovidový optický patch kábel, LC/UPC na SC/UPC, 2 m, žltá, LSZH

The EFB Elektronik IPL-DF-LCUSCU-2-0200 is a high-quality duplex single-mode fiber optic patch cable designed for reliable data transmission in structured cabling networks. With LC/UPC to SC/UPC connectors and a length of 2 meters, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for backbone and data center applications.

Advantages

This fiber patch cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The yellow jacket color ensures easy identification for single-mode fiber.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx deployments
• LAN and WAN backbone cabling
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Duplex
• Fiber Type: Single-mode (OS2)
• Connector A: LC/UPC
• Connector B: SC/UPC
• Length: 2 m
• Core/Cladding: 9/125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥50 dB (typical)
• Attenuation: ≤0.35 dB/km @ 1310 nm, ≤0.25 dB/km @ 1550 nm
• Operating Temperature: -20°C to 70°C
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Suitable for use with SFP transceivers and patch panels.
