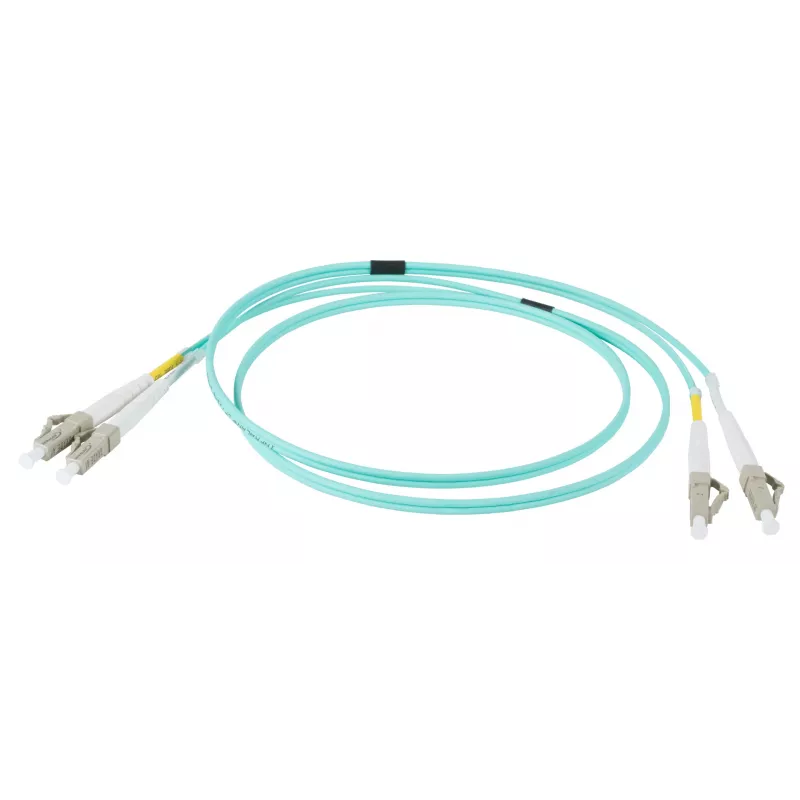

EFB Elektronik IPL-DR-LCULCU-3-0500 optický patch kábel, 5 m, OM3, LC/UPC na LC/UPC, Duplex, LSZH, Aqua

The EFB Elektronik IPL-DR-LCULCU-3-0500 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 5 meters and OM3 multimode fiber, this duplex cable supports high-speed applications up to 10 Gbps and beyond. The LC/UPC connectors ensure low insertion loss and high return loss, making it ideal for data centers, SAN, and LAN infrastructures.

Advantages

This cable offers exceptional signal integrity with maximum insertion loss of only 0.3 dB and minimum return loss of 30 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The I-V(ZN)H construction provides robust mechanical protection while maintaining flexibility for easy installation.

Suitable for

• High-speed data networks (1/10/40 Gbps)
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Data center interconnects
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connectors: LC/UPC to LC/UPC, Duplex
• Length: 5 m
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH (Halogen-Free)
• Cable Color: Aqua
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Attenuation: ≤ 3.0 dB/km @ 850nm, ≤ 1.0 dB/km @ 1300nm
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60794-2, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure proper handling to maintain low insertion loss. Suitable for use in structured cabling systems requiring high bandwidth and reliability.
