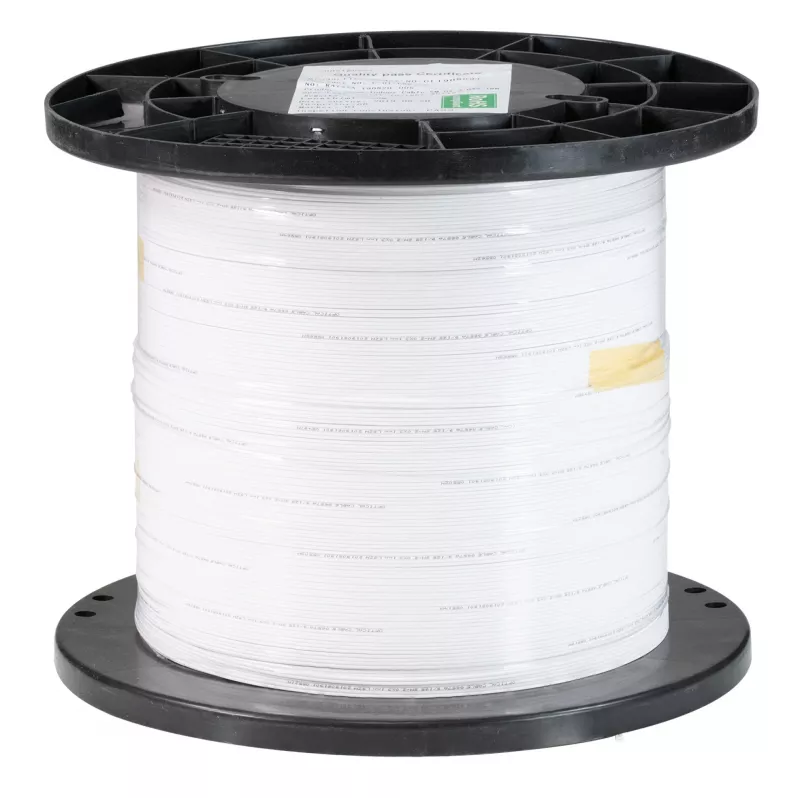

EFB Elektronik MDIC LSZH 2x9/125 biela G.657A1 FTTH Singlemode 2.0 x 3,1 mm 750 m box

The EFB Elektronik MDIC LSZH 2x9/125 White G.657A1 FTTH Singlemode fiber optic cable is a high-quality indoor distribution cable designed for Fiber To The Home (FTTH) applications. With a compact 2.0 x 3.1 mm profile and a 750-meter dispenser box, it offers easy installation and reliable performance.

Advantages

Bend-insensitive G.657.A1 fiber ensures robust signal integrity even in tight spaces. LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in indoor environments by reducing toxic smoke and corrosive gases during fire. The 750-meter box length minimizes splicing points and reduces installation time.

Suitable for

• FTTH (Fiber To The Home) installations
• Indoor distribution networks
• Data centers and enterprise LANs
• Telecommunications infrastructure

Key specifications

• Fiber Type: Singlemode (ITU-T G.657.A1)
• Fiber Count: 2 fibers
• Core/Cladding: 9/125 µm
• Cable Dimensions: 2.0 x 3.1 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: White
• Length: 750 m
• Packaging: Dispenser Box
• Attenuation @ 1310nm: ≤ 0.4 dB/km
• Attenuation @ 1550nm: ≤ 0.3 dB/km
• Minimum Bend Radius (Static): 10 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Flame Retardancy: IEC 60332-1-2
• Halogen Free: IEC 60754-2
• Smoke Density: IEC 61034-2

Recommendations

This cable is ideal for FTTH drop cables and indoor backbone installations where space is limited. The bend-insensitive fiber allows for tight bends without signal loss, making it perfect for apartment buildings and office environments.
