EFB ELEKTRONIK MPO-PLUS/APC(F)-LC trunk kábel OS2 8 vlákien Typ B LSZH žltý 3 m

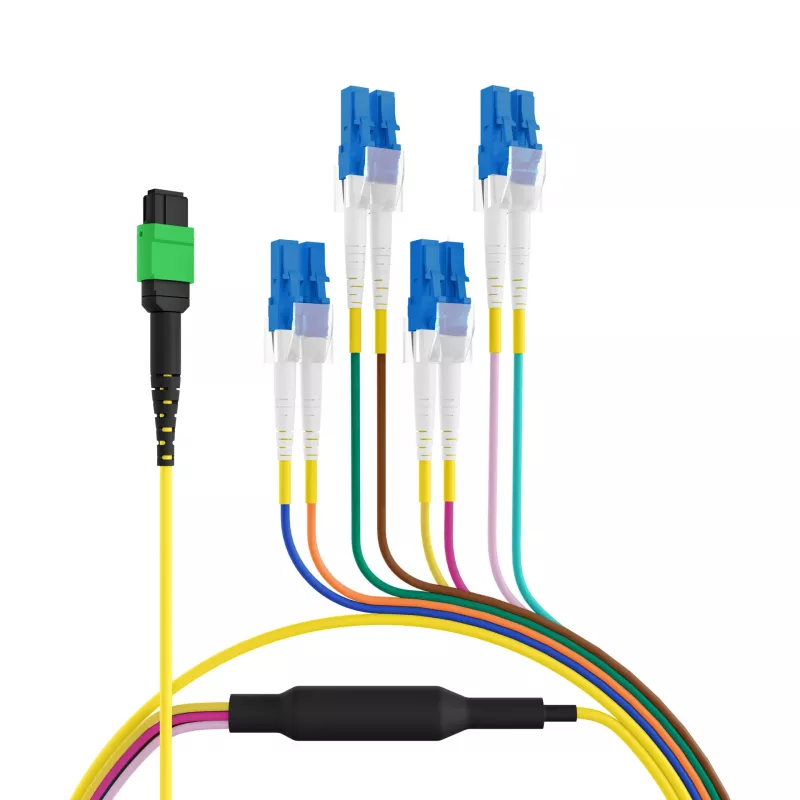

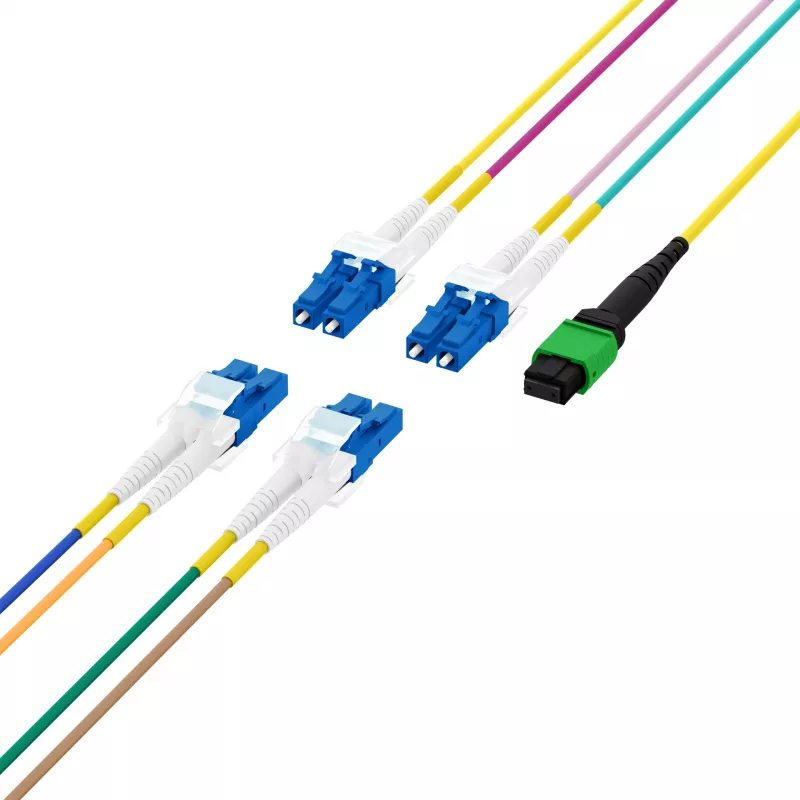

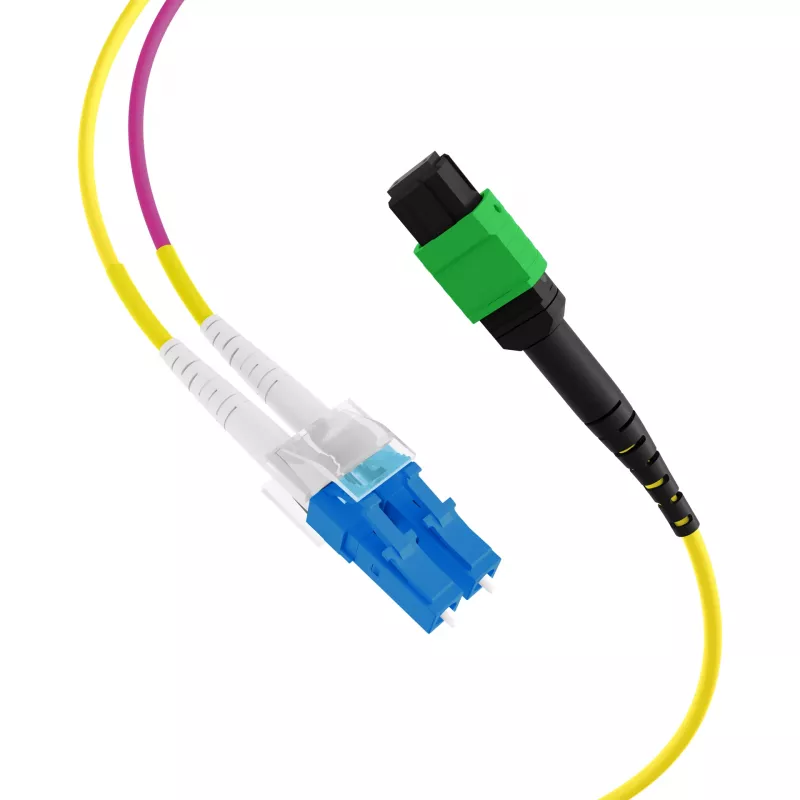

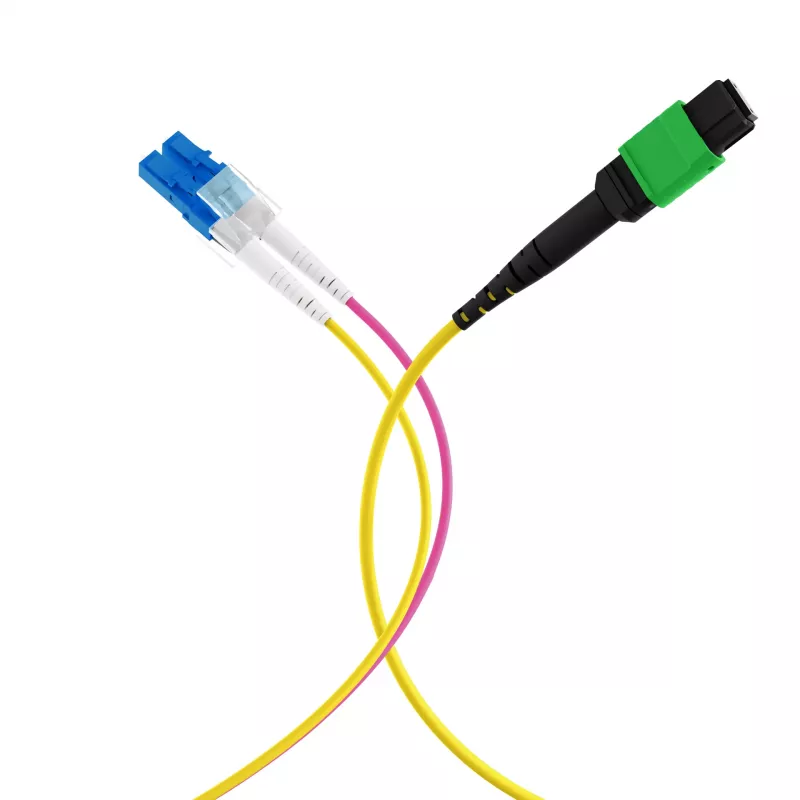

The EFB ELEKTRONIK MPO-PLUS/APC(F)-LC Trunk Cable is a high-performance, pre-terminated fiber optic trunk cable designed for data center and high-density cabling environments. It features MPO-PLUS/APC female to LC duplex connectors, 8 singlemode fibers (OS2), and a Type B polarity (cross-over) configuration. The cable is sheathed in a yellow LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and easy identification.

Advantages

This trunk cable offers low insertion loss (≤0.35 dB MPO-APC, ≤0.25 dB LC) and high return loss (≥60 dB MPO-APC, ≥50 dB LC), ensuring reliable signal transmission. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it suitable for indoor installations. Its compact 3.0 mm outer diameter and flexible design (minimum bend radius 30 mm during installation) facilitate easy routing in tight spaces.

Suitable for

• Data center interconnects
• High-density cabling systems
• Fiber-to-the-desk (FTTD) applications
• Telecommunications networks

Key specifications

• Connector Type A: MPO-PLUS/APC (Female)
• Connector Type B: LC Duplex
• Fiber Type: Singlemode OS2 (9/125 µm)
• Number of Fibers: 8
• Cable Length: 3 m
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (MPO-APC): ≤ 0.35 dB
• Insertion Loss (LC): ≤ 0.25 dB
• Return Loss (MPO-APC): ≥ 60 dB
• Return Loss (LC): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Outer Diameter: 3.0 mm
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 60 mm
• Standards: IEC 61754-7, IEC 61754-20, TIA/EIA-568.3-D, RoHS

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for high-speed networks requiring reliable, low-loss connections.
