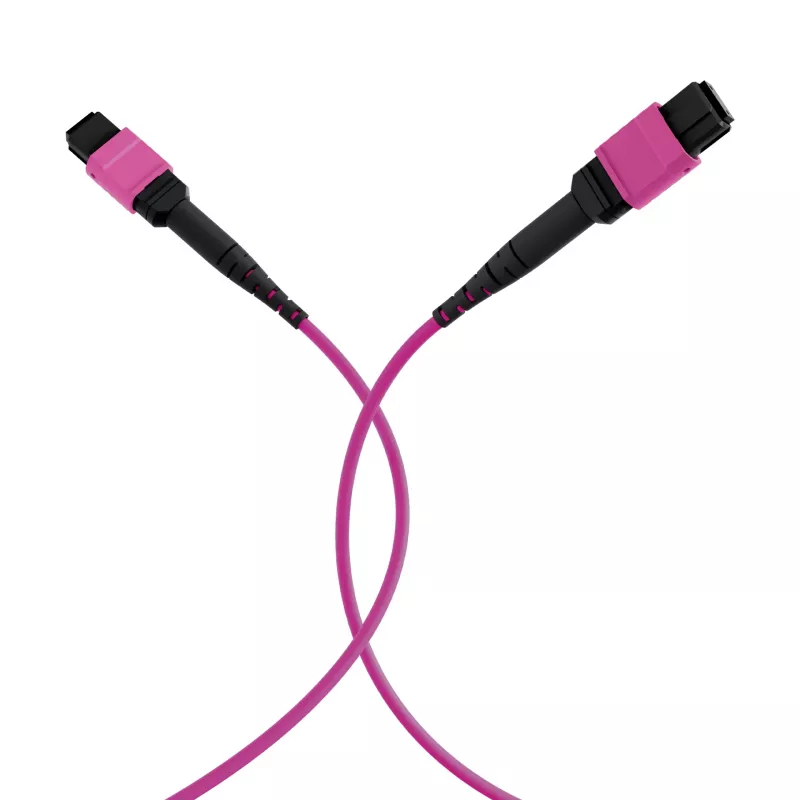

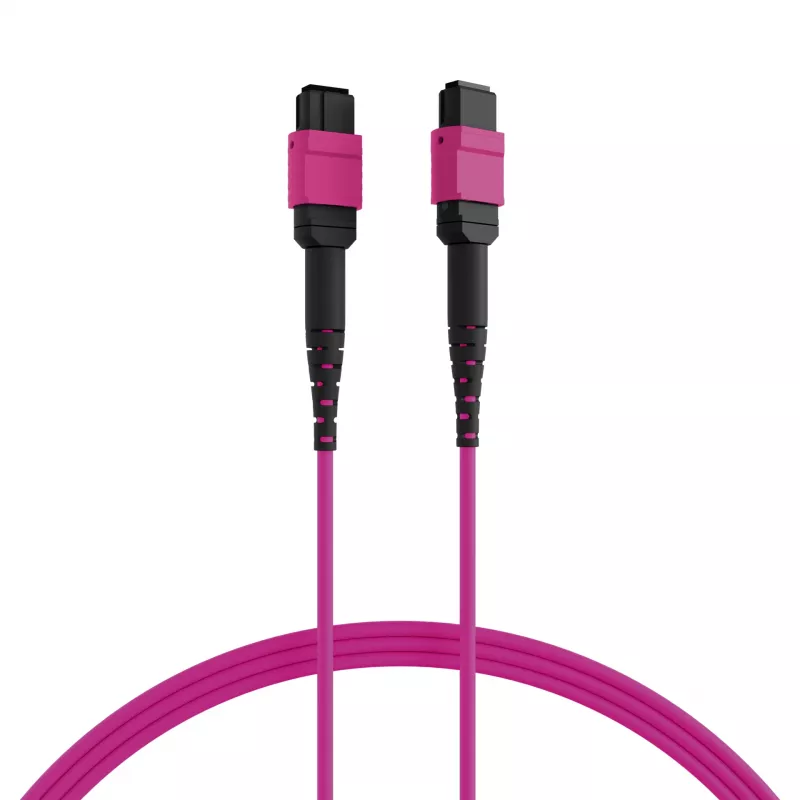

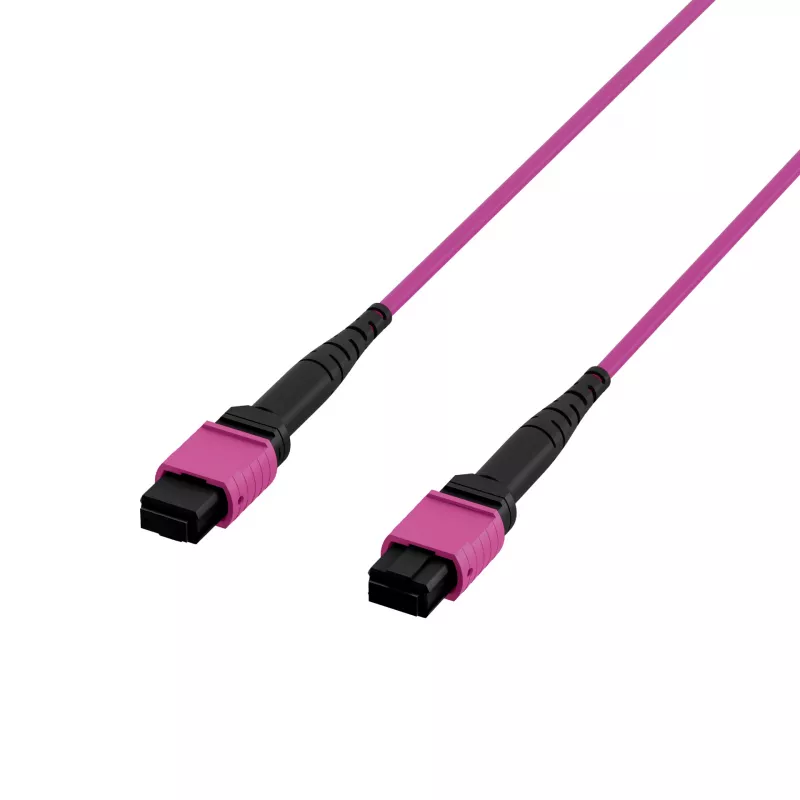

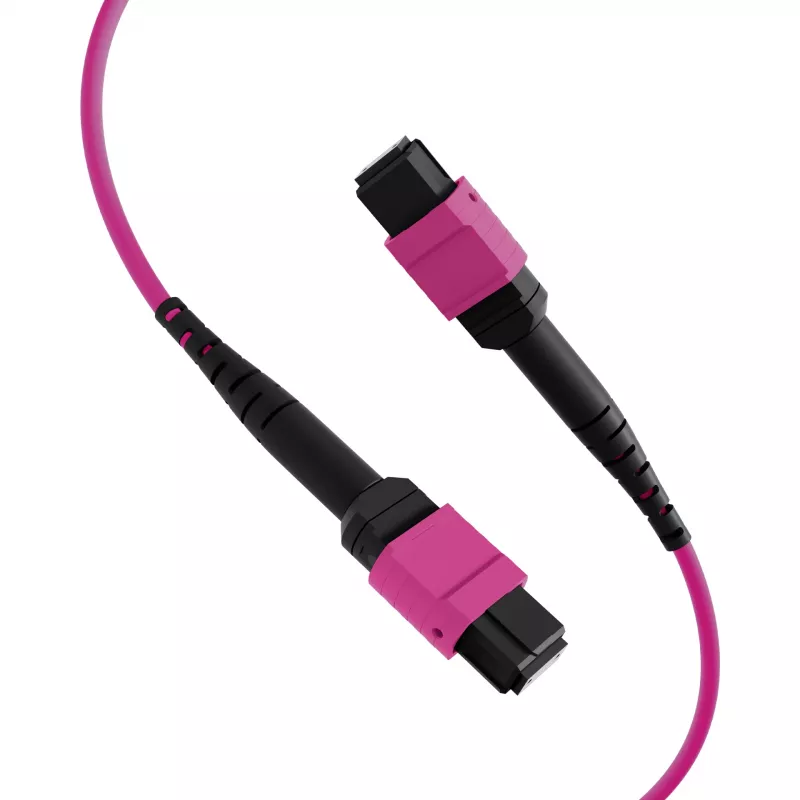

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patch kábel OM4 12 vlákien Typ B LSZH Erikaviolett 5 m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance multimode fiber optic patch cable designed for demanding data center, SAN, LAN, and high-density cabling environments. With 12 fibers, OM4 performance, and Type B polarity, this cable ensures reliable and high-speed data transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the Erika Violet color allows for easy identification.

Advantages

This patch cable offers exceptional bandwidth and low insertion loss, making it ideal for high-speed networks. The MPO-PLUS Female connectors provide secure and easy connections, and the LSZH jacket ensures compliance with fire safety regulations. The cable's durability and high mating cycle rating guarantee long-term reliability.

Suitable for

• Data centers requiring high-density cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• High-speed backbone connections
• Telecommunications rooms

Key specifications

• Connector Type (End A): MPO-PLUS Female
• Connector Type (End B): MPO-PLUS Female
• Fiber Type: Multimode OM4
• Number of Fibers: 12
• Polarity Type: Type B
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Cable Length: 5 meters
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 20 dB
• Wavelength: 850nm / 1300nm
• Bandwidth (850nm): 4700 MHz*km
• Bandwidth (1300nm): 500 MHz*km
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mating Cycles: > 500
• Compliance: RoHS, REACH
• Connector Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, ensure proper handling and storage of the cable. Avoid sharp bends and excessive tension during installation. This cable is ideal for use with MPO-based transceivers and patch panels in high-density environments.
