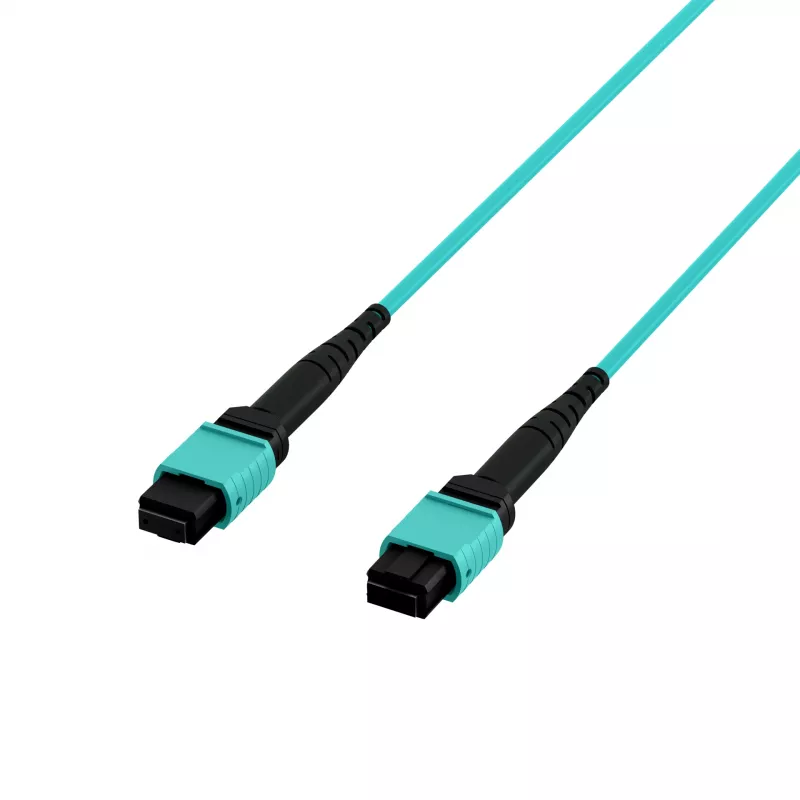

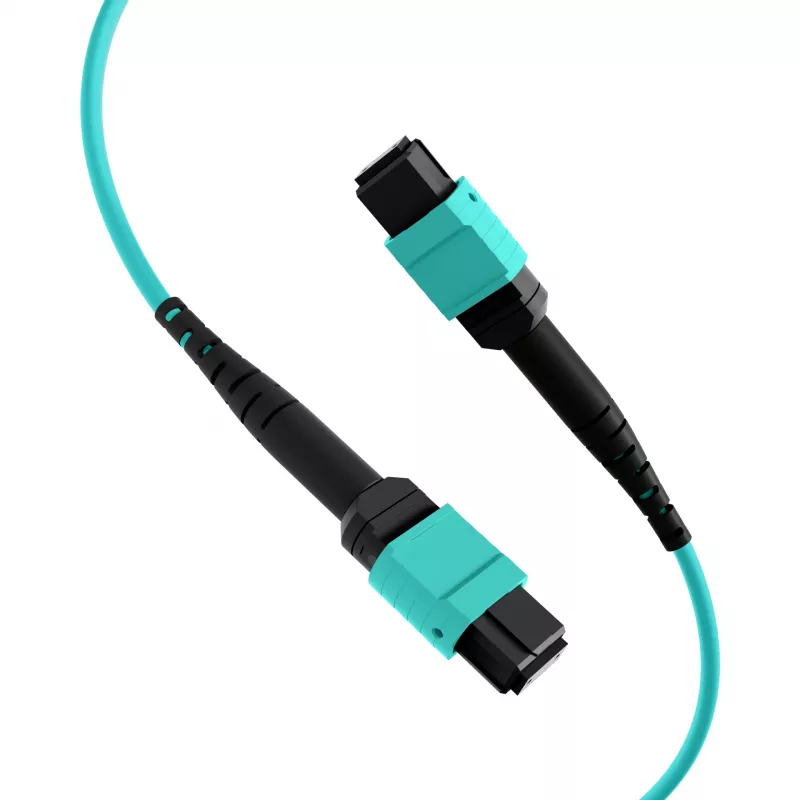

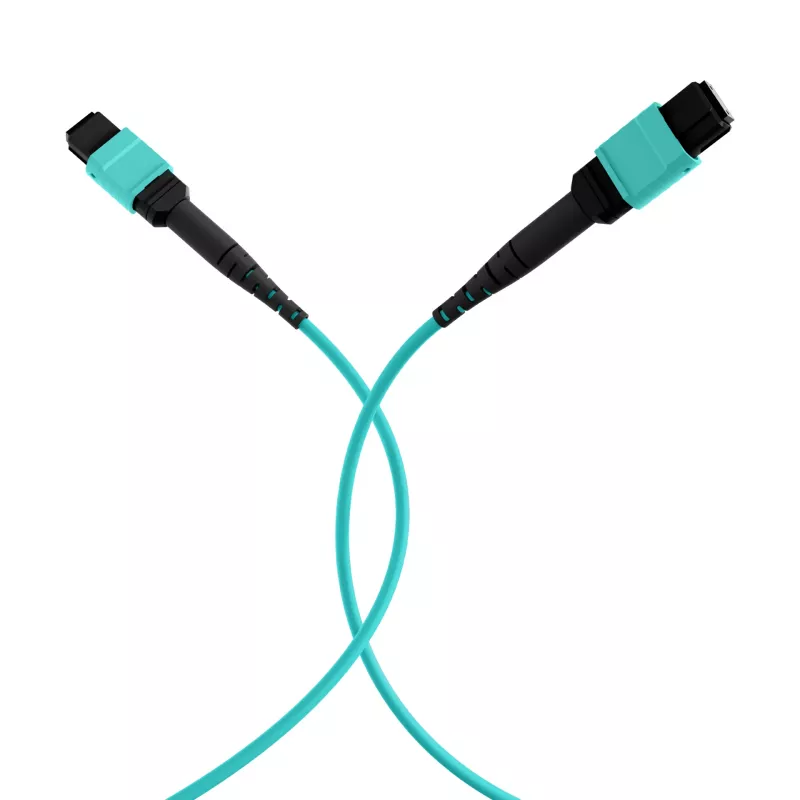

EFB Elektronik MPO-PLUS konektor samica na MPO-PLUS konektor samica OM3 12-vláknový typ B LSZH aqua patch kábel, 10 m MPOF12MPOFOM3-10

High-density fiber optic patching in data centers often suffers from cable clutter and polarity mismatches. This MPO-PLUS to MPO-PLUS patch cable solves that by offering a compact 12-fiber OM3 multimode link with Type B polarity, ensuring correct signal routing between transceivers and cassettes. The aqua LSZH jacket is low-smoke and halogen-free, making it suitable for indoor environments where fire safety is a concern.

Who is it for

Network engineers and data center technicians who need reliable, high-performance multimode fiber connections for 10G/40G/100G applications. Ideal for backbone patching, equipment cross-connects, and high-density fiber distribution areas.

Main features

• 12 fibers in a single MPO connector for high-density patching
• OM3 multimode fiber supports 10G up to 300 m and 40G/100G up to 100 m
• Type B polarity (key-up to key-up) for simplified link mapping
• LSZH (Low Smoke Zero Halogen) jacket in aqua for easy identification
• MPO-PLUS female connectors with polymer ferrule for low insertion loss
• 10 m length for flexible reach in racks and cabinets

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode OM3
• Number of fibers: 12
• Connector A: MPO-PLUS female
• Connector B: MPO-PLUS female
• Polarity: Type B
• Cable length: 10 m
• Jacket material: LSZH
• Jacket color: Aqua
• Insertion loss (max): 0.35 dB
• Return loss (min): 20 dB
• Cable diameter: 3.0 mm
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Optical wavelength: 850 nm / 1300 nm
• Application environment: Indoor

Tips

Always inspect and clean MPO connectors before mating to prevent contamination and ensure optimal performance. Use polarity testers to verify Type B connections in complex deployments.
