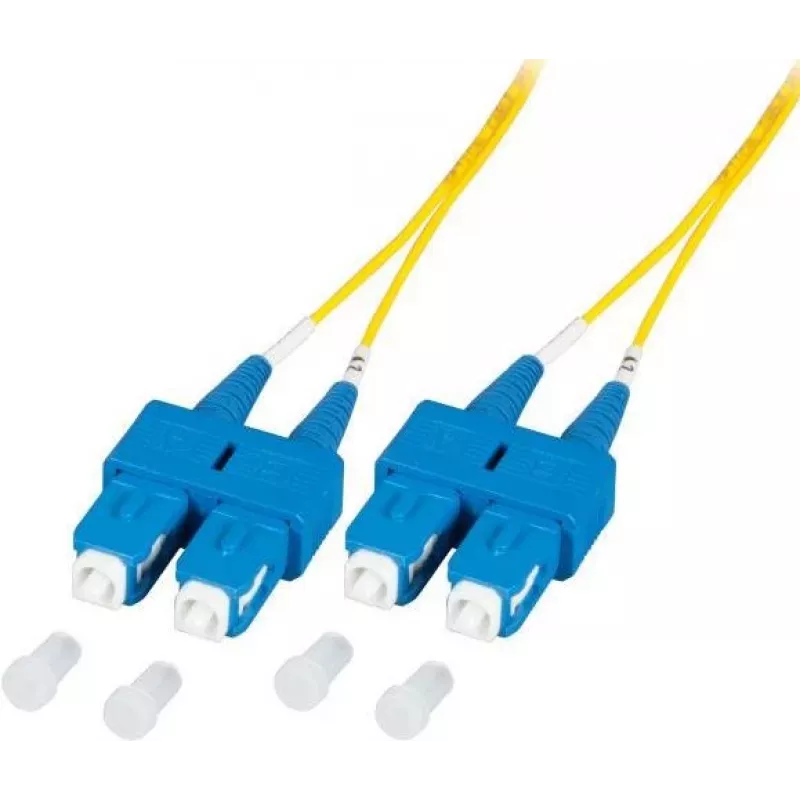

EFB Elektronik O2513.5-1.2 optický patch kábel 5 m SC duplex OS2 žltý

The EFB Elektronik O2513.5-1.2 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, LAN networks, and telecommunications. With a length of 5 meters and duplex SC connectors, this OS2-rated cable ensures low insertion loss and high return loss for optimal signal transmission.

Advantages

This cable offers excellent performance with typical insertion loss <0.3 dB and return loss >50 dB, supporting wavelengths of 1310 nm and 1550 nm. The LSZH jacket provides safety in indoor environments by reducing smoke and halogen emissions in case of fire.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Telecommunications infrastructure
• Indoor fiber optic installations

Key specifications

• Fiber mode: Single-mode OS2
• Connector type: SC duplex
• Cable length: 5 m
• Number of fibers: 2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss: <0.3 dB typical
• Return loss: >50 dB typical
• Wavelengths: 1310 nm, 1550 nm
• Polarity: A-B (crossed)
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone and horizontal cabling in structured cabling systems.
