EFB Elektronik RJ45 Keystone STP Cat.6A 500MHz Component Certified 24-Pack

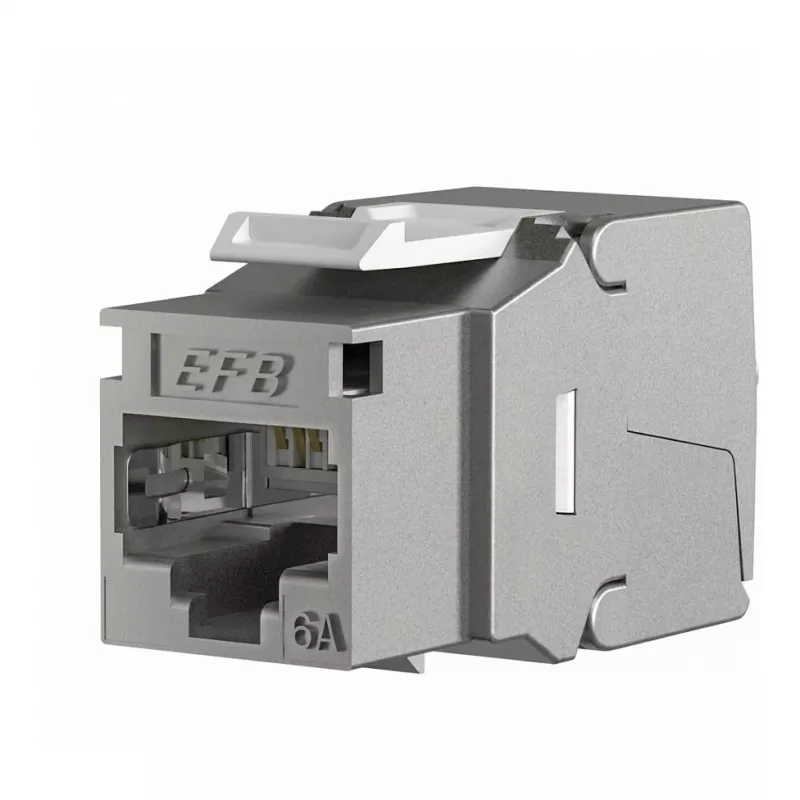

The EFB-ELEKTRONIK RJ45 Keystone STP Cat.6A module is a high-performance, shielded keystone jack designed for professional network installations. This component-certified module supports 10 Gigabit Ethernet over twisted-pair copper cabling, ensuring reliable data transmission at frequencies up to 500 MHz. The pack contains 24 units, ideal for populating patch panels or wall plates in data centers, enterprise networks, and structured cabling systems.

Advantages

Engineered with a zinc die-cast housing and gold-plated contacts, this keystone module provides excellent shielding against electromagnetic interference (EMI) and ensures long-term connectivity. The IDC termination is compatible with LSA punch-down tools, supporting 22-24 AWG solid or stranded conductors. It also supports Power over Ethernet (PoE) standards including IEEE 802.3af/at/bt, making it suitable for powering devices such as IP cameras, wireless access points, and IoT sensors.

Suitable for

• Data center cabling infrastructure
• Enterprise LAN networks requiring Cat.6A performance
• 10GBASE-T applications
• PoE deployments (up to 4PPoE)
• Structured cabling in commercial buildings

Key specifications

• Connector Type: RJ45
• Module Type: Keystone Jack
• Shielding: Shielded (STP)
• Performance Category: Cat.6A (Category 6A)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Certification: Component Certified (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Housing Material: Zinc Die-Cast
• Contact Plating: Gold (50µm)
• Termination Type: IDC (LSA compatible)
• Wiring Standard: T568A/B (color-coded)
• Conductor Gauge Support: 22-24 AWG solid/stranded
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Insertion Cycles: >750
• Operating Temperature: -10°C to +60°C
• Quantity per Pack: 24 units
• Mounting Compatibility: Keystone patch panels, wall plates, surface mount boxes
• Tool-less Termination: No (requires LSA punch-down tool)
• Return Loss: >20 dB (at 100 MHz)
• Near-End Crosstalk (NEXT): >40 dB (at 100 MHz)

Recommendations

For optimal performance, pair this keystone module with Cat.6A shielded patch cables and compatible patch panels. Use a high-quality LSA punch-down tool for termination. Ensure proper grounding of the shielding for maximum EMI protection.
