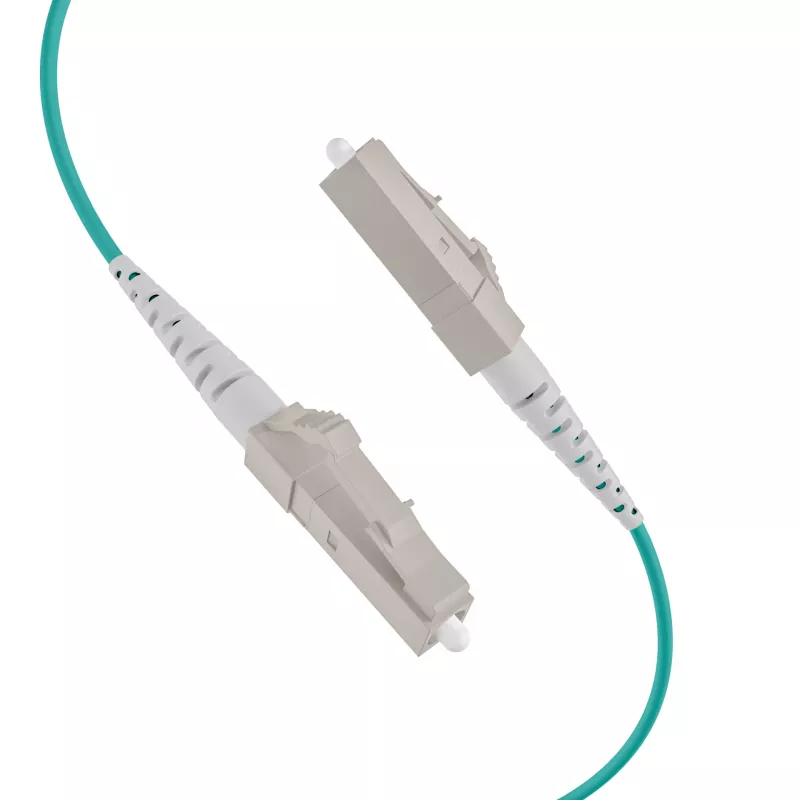

EFB Elektronik trunk kábel U-DQ ZN BH OM3 8G 1x8 LC-LC 10 m Dca LSZH O8322S10OM3

This OM3 multimode trunk cable delivers 10 Gbps data rates over 10 meters, making it a reliable backbone for high-speed fiber optic networks.

Overview

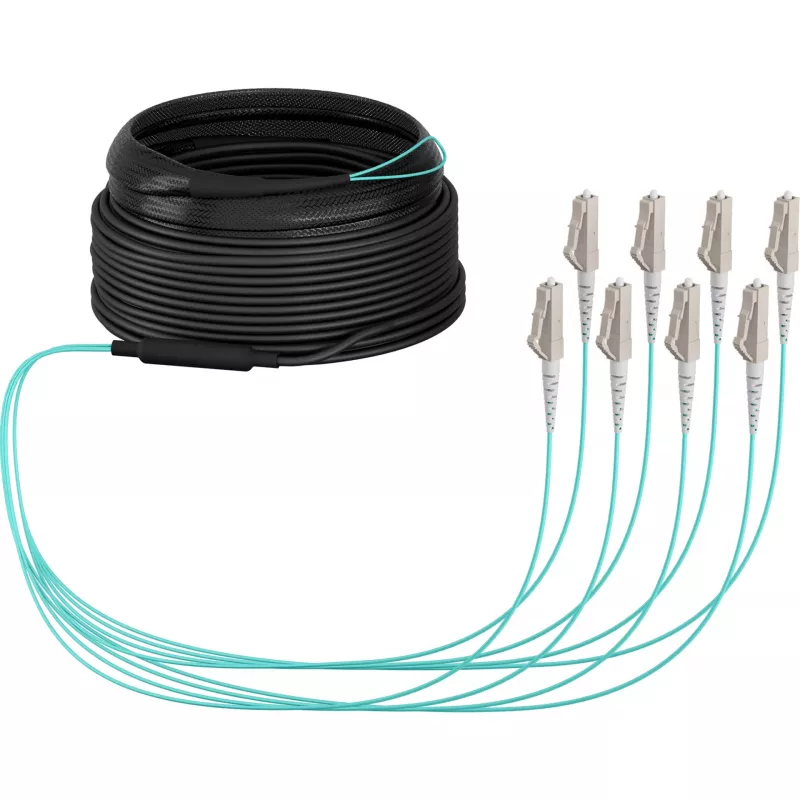

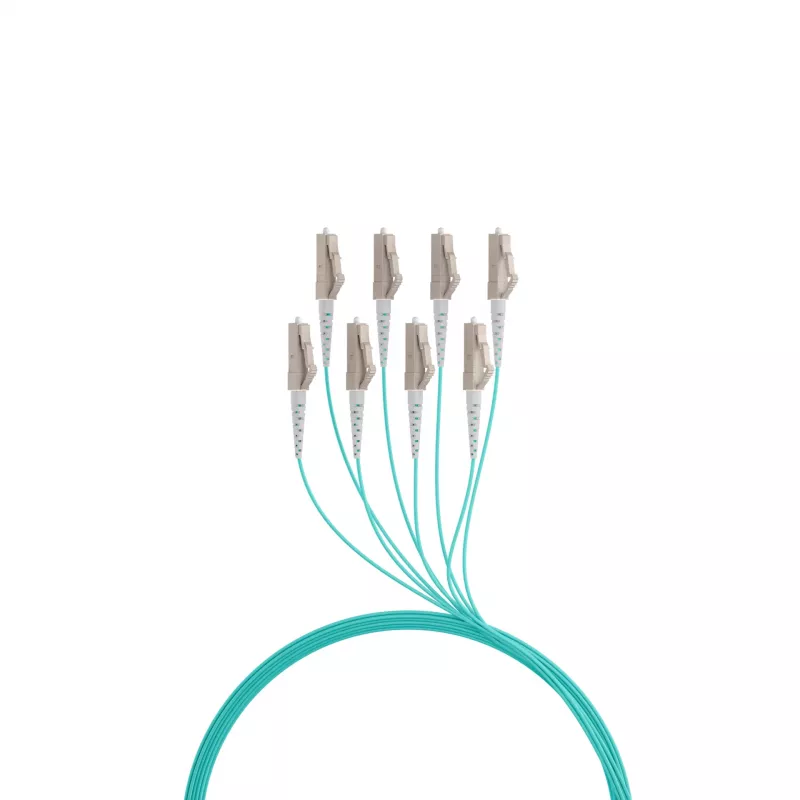

The EFB Elektronik O8322S10OM3 is a pre-terminated fiber optic trunk cable featuring 8 OM3 multimode fibers in a single jacket. Both ends are equipped with LC connectors, enabling quick deployment in data centers and enterprise LANs. The LSZH (Low Smoke Zero Halogen) jacket meets CPR fire rating Dca, ensuring low smoke and toxicity in case of fire.

What stands out

• 8 OM3 fibers support parallel optics and high-density patching.
• LC connectors provide secure, low-loss connections.
• LSZH jacket with Dca CPR rating for enhanced safety in indoor installations.
• Aqua-colored jacket for easy identification of OM3 multimode cable.

Technical details

• Fiber type: Multimode OM3 (50/125 µm)
• Number of fibers: 8

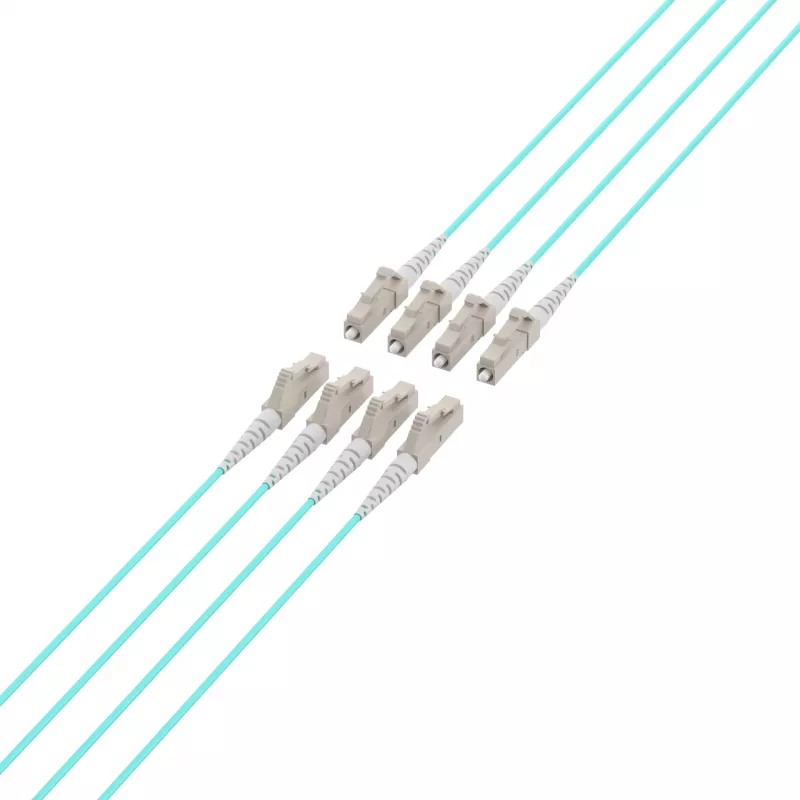

• Connectors: LC to LC
• Length: 10 m
• Jacket material: LSZH
• CPR fire rating: Dca
• Insertion loss: < 0.25 dB per connector
• Return loss: > 35 dB
• Wavelength: 850 nm / 1300 nm

Our verdict

A robust, standards-compliant trunk cable for high-density fiber optic installations, offering excellent performance and safety.
