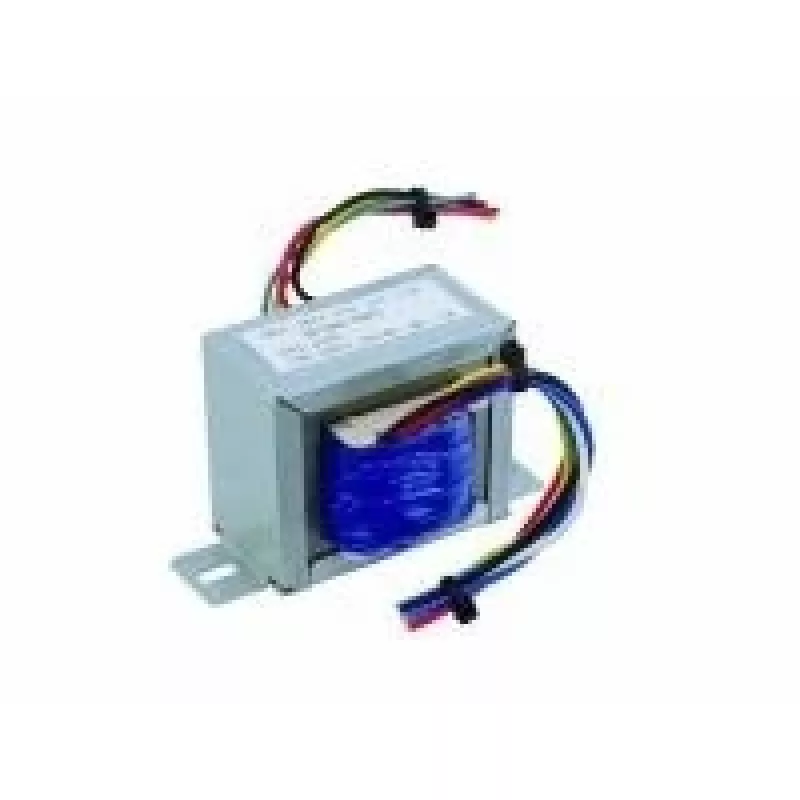

ELA transformátor Omnitronic ELA-T30 30W

Omnitronic ELA-T30 30W is a public address transformer engineered to provide stable impedance matching between amplifiers and distributed speaker lines in public address and background music systems. Designed for installations in commercial, retail and institutional environments, the transformer supports both low-impedance and high-impedance speaker configurations, enabling consistent audio distribution across multiple loudspeakers. Its compact design and clearly defined power taps make it suitable for wall-mounted or rack-based amplifier setups where reliable power delivery and safe speaker connection are required.

Advantages

The transformer offers precise impedance conversion for 30 W total power capacity, allowing easy integration of standard low-impedance amplifiers with 100 V or distributed speaker lines. It reduces the risk of amplifier overload by providing stable matching and ensures even power distribution across multiple speakers. The unit's durable construction supports continuous operation in commercial environments and simplifies wiring thanks to clearly marked terminals for different power taps.

Suitable for

Key specifications

How to use

Install the Omnitronic ELA-T30 close to the amplifier or inside the equipment rack to minimize cable runs. Connect the amplifier output to the transformer's primary input and select the appropriate power tap on the secondary side according to the speaker array and required output level. Attach speaker cabling to the chosen output terminals, ensuring correct polarity and secure terminal connections. Verify load compatibility and adjust taps as needed to balance levels across the distributed speaker system.

Recommendations

For reliable long-term operation, select the power tap that provides sufficient headroom without exceeding the transformer's rated power. Use quality speaker cable and avoid excessive cable lengths to reduce signal loss. Periodically check terminal connections and mounting to ensure stable audio distribution and safe operation in commercial environments.
