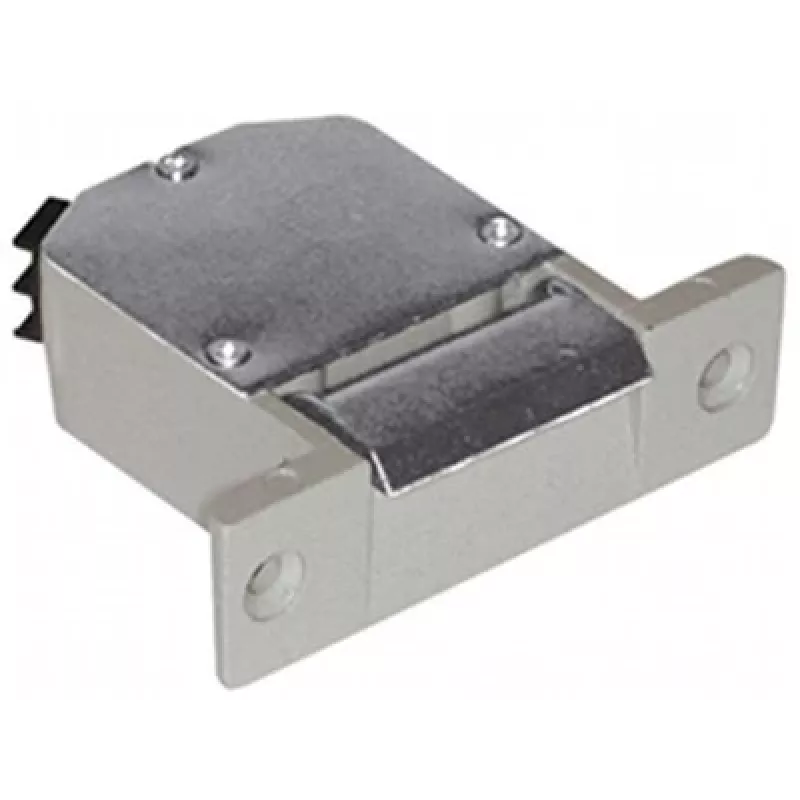

ELEKTRA-PLUS R1 široký elektrický otvárač dverí

The ELEKTRA-PLUS R1 Wide Electric Strike is a wide electric strike designed for door release applications. It features a housing with external dimensions of 27 x 55 x 77 mm and a weight of 0.24 kg.

Key features

• Wide electric strike
• Model: R1-12.10
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible door load acting on strike: 3500 N (350 kG)
• Rated voltage U: 10 ± 2V
• Current I: AC 330-510 mA, DC 620-940 mA
• Permissible continuous operation time: 30 min
• Allows use of a bell transformer

Specifications

• Brand: Elektra-Plus
• MPN: R1-12.10

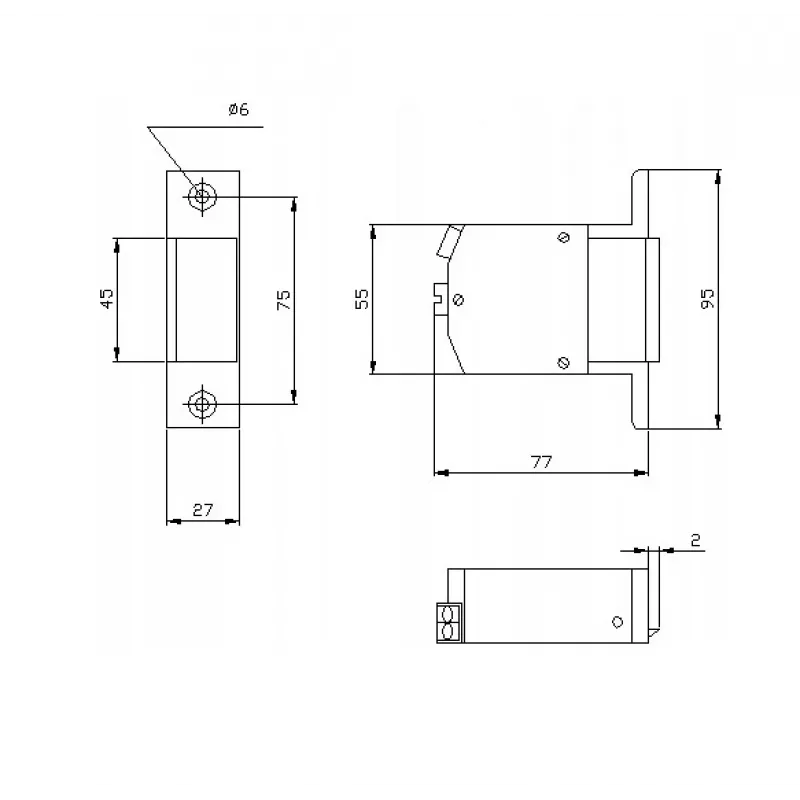

• Housing external dimensions: 27 x 55 x 77 mm
• Weight: 0.24 kg
