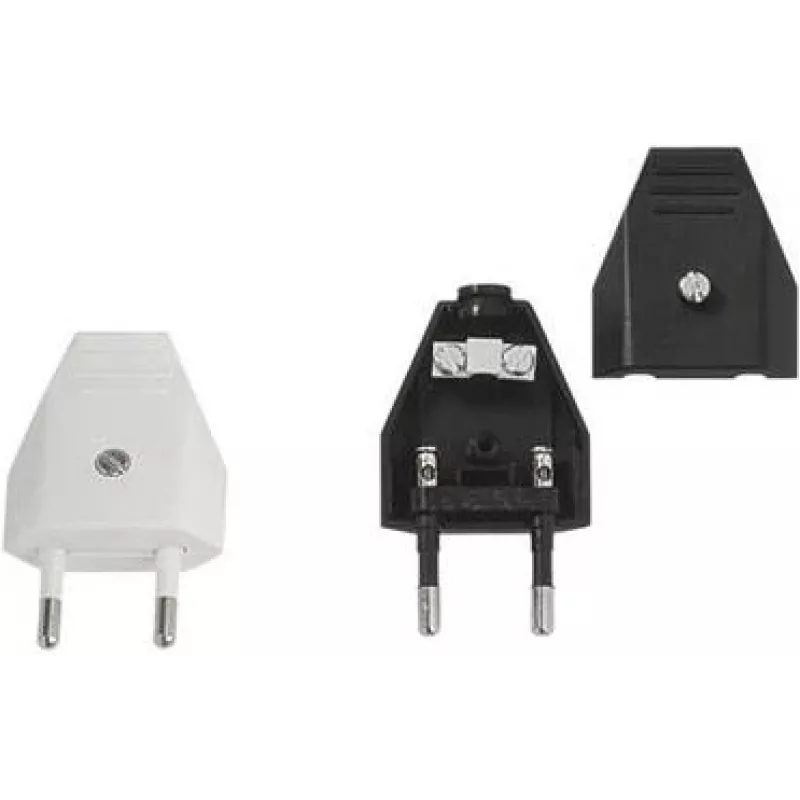

Elektrická sieťová zástrčka Bachmann 900.010 čierna

The Bachmann 900.010 electrical power plug in black is a plastic mains connector designed for use with AC power up to 250 V and a maximum current of 2.5 A. It accepts flat cables up to H05VV-F 2 x 0.75 mm² and is supplied in packed sets of three items per plastic bag. The unit features a screw terminal for secure conductor connection and is intended for general electrical applications requiring a compact, insulated plug.

Advantages

This black Bachmann plug offers a compact plastic housing, a screw terminal for reliable wire fixation, and compatibility with flat H05VV-F cables 2 x 0.75 mm². It is supplied in prepacked groups of three, which simplifies storage and handling for installers and small projects. The rated voltage of 250 V and current rating of 2.5 A suit low-power mains devices.

Suitable for

• Connecting low-power AC devices and appliances
• Temporary or fixed wiring using flat H05VV-F 2 x 0.75 mm² cable
• Small installations, repair jobs, and DIY electrical work

Key specifications

• Brand: Bachmann
• Model / MPN: 900.010
• EAN: 4016514012299
• Material: plastic housing
• Rated voltage: 250 V AC
• Rated current: 2.5 A
• Cable compatibility: flat cable up to H05VV-F 2 x 0.75 mm²
• Terminal type: screw terminal
• Packing: 3 items per plastic bag (packed version)

How to use

Prepare the flat H05VV-F 2 x 0.75 mm² cable by stripping the outer sheath and exposing the conductors to the length recommended by the plug manufacturer. Loosen the screw terminals, insert the conductors into the corresponding contacts and tighten the screws to secure the wires. After assembly, check that there are no exposed conductors and that the housing closes correctly before connecting to a 250 V AC supply. Observe polarity and local electrical safety regulations during installation.

Recommendations

Use this plug only with flat H05VV-F 2 x 0.75 mm² cable and for applications within the 250 V / 2.5 A rating. Do not exceed the specified current or voltage. For permanent installations or higher currents choose a connector with appropriate ratings and ensure work is performed by a qualified person when required by local rules.
