Elektrický kompletný konektor M12 Harting 21 03 381 6420

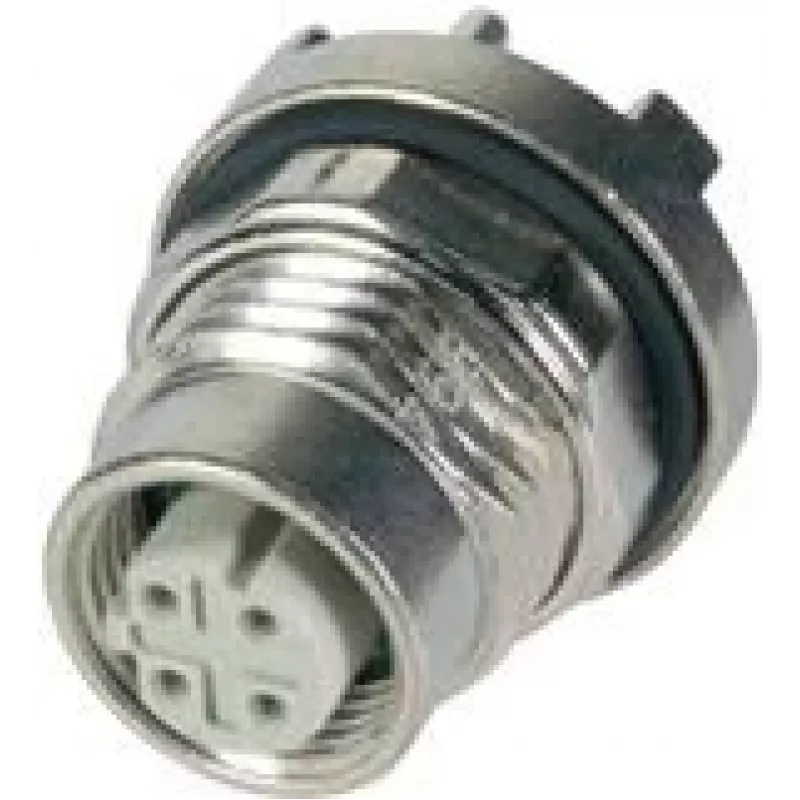

The Harting Electrical Complete Connector M12 21 03 381 6420 is a compact, screw-fixed M12 connector designed for flush mounting in industrial equipment. It provides a rated current of 4 A and weighs approximately 23.67 g, combining a lightweight footprint with secure electrical contact suitable for a range of control and signal tasks. The design supports easy installation and integration into panels or housings where a reliable M12 interface is required.

Advantages

This M12 connector features screw fixing for a secure mechanical and electrical connection in flush-mount applications. Its lightweight construction reduces strain on mounting surfaces and cabling while preserving robustness needed for repeated mating cycles. The connector’s compact dimensions offer space-efficient integration into control cabinets and machinery, and the standardized M12 interface ensures compatibility with common industrial sensors, actuators, and signal wiring.

Key specifications

• Connector type: M12, screw fixing, flush mounting
• Rated current: 4 A
• Weight: approximately 23.67 g
• Application: signal and low-power connections in industrial environments
• Mechanical interface: standardized M12 thread for mating compatibility

How to use

Prepare the cable and housing cutout to match the flush-mount dimensions of the connector. Insert the connector into the panel or housing and secure it using the M12 screw fixing until it is firmly seated. Terminate conductors according to the wiring scheme used in your application, ensuring correct torque on screws to maintain reliable contact without damaging terminals. After installation, verify continuity and correct polarity before powering the system.

Recommendations

Use this M12 connector in accordance with the device manufacturer’s wiring diagrams and follow standard installation torque values for M12 screw connections. Protect the connector from exposure to aggressive chemicals and extreme mechanical stress; in harsher environments consider additional sealing or protective housings. Periodically inspect mating surfaces and screw terminations for corrosion or loosening to maintain reliable operation.

Priekšrocības

Skrūvveida fiksācija nodrošina drošu elektrisko un mehānisko savienojumu, bet vieglais dizains samazina slodzi uz paneļiem un kabeļiem. Standarta M12 interfeiss atvieglo integrāciju ar sensoru un aktuatoru aprīkojumu, savukārt kompaktie izmēri ļauj ietaupīt vietu vadības skapjos un iekārtās.

Piemērots

• Vadības skapji un automatizācijas paneļi
• Sensori un aktuatori ar M12 savienojumu
• Ražošanas līnijas un testa iekārtas
• Signālu un zemā sprieguma savienojumi rūpnieciskā vidē

Galvenās specifikācijas

• Savienotāja tips: M12, skrūvveida fiksācija, ierakstāma montāža
• Nom. strāva: 4 A
• Svars: aptuveni 23.67 g
• Izmantošana: signālu un zemas jaudas savienojumi rūpniecībā
• Mehāniskais interfeiss: standartizēta M12 vītne

Kā lietot

Sagatavojiet paneļa izgriezumu atbilstoši ierakstāmai montāžai. Ievietojiet savienotāju un nostipriniet ar M12 skrūvi līdz ciešai sēdēšanai. Pieslēdziet vadus pēc vajadzīgās shēmas, ievērojot pareizu skrūvju momentu, un pārbaudiet ķēžu nepārtrauktību un polaritāti pirms strāvas pievienošanas.

Lietošanas ieteikumi

Ievērojiet aprīkojuma elektriskās shēmas un montāžas vadlīnijas, nodrošiniet aizsardzību pret agresīvām vielām un mehānisku pārslodzi, ja nepieciešams, un regulāri pārbaudiet savienojumu stāvokli, lai nodrošinātu uzticamu darbību.
