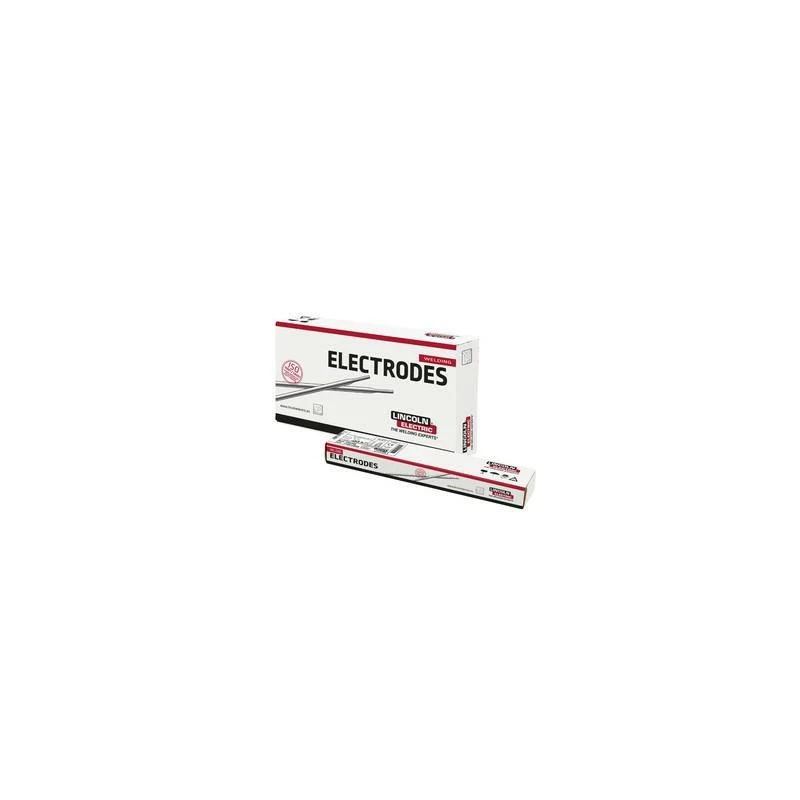

Elektróda ArCoast 316L 2,5/2,0 kg 100 ks pre nehrdzavejúcu oceľ

The Electrode ArCoast 316L is a high-quality covered arc welding electrode designed for welding stainless steels, particularly 316L, 316, and 317L grades. This electrode features a rutile coating for easy slag removal and excellent weld bead appearance. With a diameter of 2.5 mm and a length of 300 mm, it is suitable for all welding positions. The package contains 100 pieces weighing 2.0 kg, making it ideal for professional and industrial applications.

Advantages

Excellent corrosion resistance against general and pitting corrosion. Easy slag removability with self-releasing properties. Suitable for AC and DC+ welding currents. Provides high tensile strength and impact resistance even at low temperatures.

Suitable for

• Welding of 316L, 316, and 317L stainless steels
• Chemical industry, food industry, shipbuilding
• All welding positions (PA, PB, PC, PD, PE, PF)

Key specifications

• Electrode Type: Covered Arc Welding Electrode
• Material Grade: AWS A5.4 E316L-16
• Diameter: 2.5 mm
• Length: 300 mm
• Package Weight: 2.0 kg
• Quantity: 100 pieces
• Welding Current: DC+ / AC
• Recommended Current Range: 60-90 A
• Tensile Strength: >520 MPa
• Yield Strength: >320 MPa
• Elongation: >30%
• Impact Strength: >47 J at -120°C
• Carbon Content: <0.04%
• Molybdenum Content: 2.5-3.0%
• Coating Type: Rutile
• Standard Compliance: AWS A5.4 E316L-16, EN ISO 3581-A E 19 12 3 L R 32

Recommendations

For optimal results, use with DC+ polarity and maintain a short arc length. Preheating is not required for most applications. Store in a dry environment to prevent moisture absorption.
