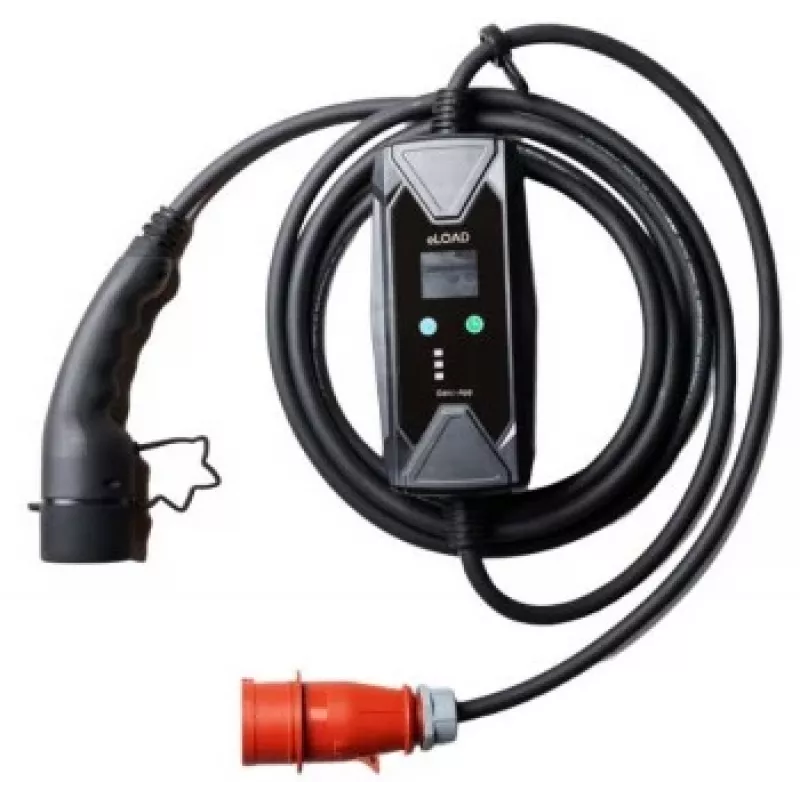

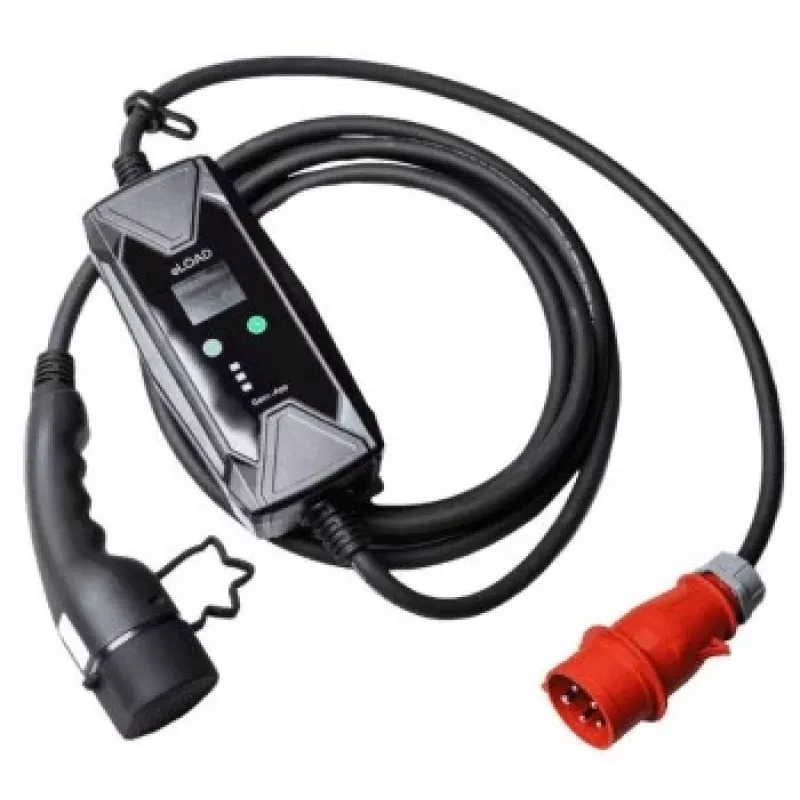

ELOAD TIE-EV16-P3-GEN2 11kW 3-fázová nabíjačka EV s diaľkovým ovládaním, Type 2, 5m kábel, IP54

The ELOAD TIE-EV16-P3-GEN2 is a professional 11kW 3-phase electric vehicle charger designed for residential and commercial wall-mounted installations. With an integrated 5-meter Type 2 cable, RFID authentication, and remote control via mobile app, it offers convenient and secure charging for all compatible EVs. The robust IP54 and IK10 rated enclosure ensures reliable outdoor operation, while built-in energy metering and static load management optimize power usage.

Advantages

High 11kW charging power reduces charging time significantly. Remote control via Wi-Fi and Ethernet allows start/stop, scheduling, and monitoring from anywhere. Integrated RCD Type A + 6mA DC protection ensures maximum safety. The UV-resistant PC/ABS housing withstands harsh weather conditions.

Suitable for

• Electric vehicle owners with Type 2 inlet
• Home garages and carports
• Commercial parking lots and workplaces
• Multi-unit residential buildings

Key specifications

• Charging Power: 11 kW
• Charging Current: 3 x 16 A
• Input Voltage: 400 V AC (3-Phase)
• Vehicle Connector: Type 2, integrated cable 5 m
• Enclosure Rating: IP54
• Impact Protection: IK10
• Communication: Wi-Fi, Ethernet
• Authentication: RFID, Mobile App
• Energy Metering: Integrated
• Load Balancing: Static Load Management
• Operating Temperature: -30°C to +50°C
• Housing Material: UV-resistant PC/ABS
• Standards: CE, IEC 61851-1

Recommendations

For optimal performance, ensure a dedicated 3-phase 400V supply with appropriate circuit breaker. The charger is compatible with all Type 2 electric vehicles. Use the ELOAD mobile app for full remote control and monitoring.
