EMITER Rozvádzač pripojený DC hermetický IP65 EMITTER s DC prepäťovou ochranou Noark 1000V typ 1+2, 6x PV-string, 6x MPPT

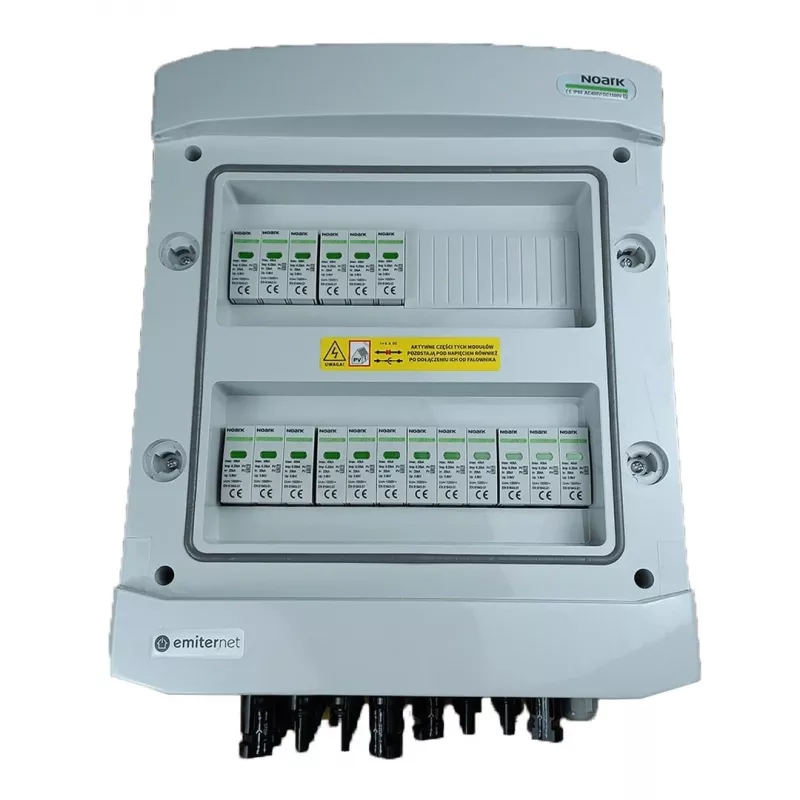

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a high-performance DC combiner box designed for photovoltaic systems. It integrates a DC surge arrester from Noark, rated for 1000V DC Type 1+2, and supports 6 PV string inputs with 6 MPPT outputs. The IP65-rated hermetic enclosure ensures reliable outdoor operation.

Advantages

This combiner box offers comprehensive surge protection with Type 1+2 SPD, ensuring safety against direct and indirect lightning strikes. The hermetic IP65 enclosure protects against dust and water ingress, making it suitable for harsh environments. With 6 inputs and 6 outputs, it optimizes solar panel string management.

Suitable for

• Photovoltaic (PV) systems requiring DC string combiner and surge protection
• Outdoor installations where IP65 protection is needed
• Systems with up to 6 PV strings and 6 MPPT inputs

Key specifications

• Product Type: DC Combiner Box / PV String Box
• Nominal DC Voltage: 1000 V DC
• Number of PV Strings (Input): 6
• Number of MPPT Inputs (Output): 6
• Surge Protection Type: Type 1 + Type 2 DC SPD
• Surge Arrester Brand: Noark
• Enclosure Protection Rating: IP65
• Enclosure Material: UV-resistant Polycarbonate (PC)
• Hermetic Seal: Yes
• DC Disconnect Switch: Integrated (Load Break Switch)
• Overcurrent Protection: String Fuses (e.g., 15A/20A per string)
• Connection Type: MC4 Connectors (Input/Output)
• Mounting Type: Wall Mountable
• Operating Temperature Range: -25°C to +60°C
• Standards & Certifications: CE, IEC 61439-1, IEC 61439-2, EN 50549-1
• Number of Poles (SPD): 3-pole
• Maximum Discharge Current (Imax): 40 kA (Type 2 SPD)
• Impulse Current (Iimp): 12.5 kA (Type 1 SPD)

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. This device is designed for professional installation by qualified personnel.
