EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER s Dehn 1000V Typ 2 DC prepäťový zvodič, 1 x PV-string, 1 x MPPT // og. AC Dehn Typ 2, 16A 1-F

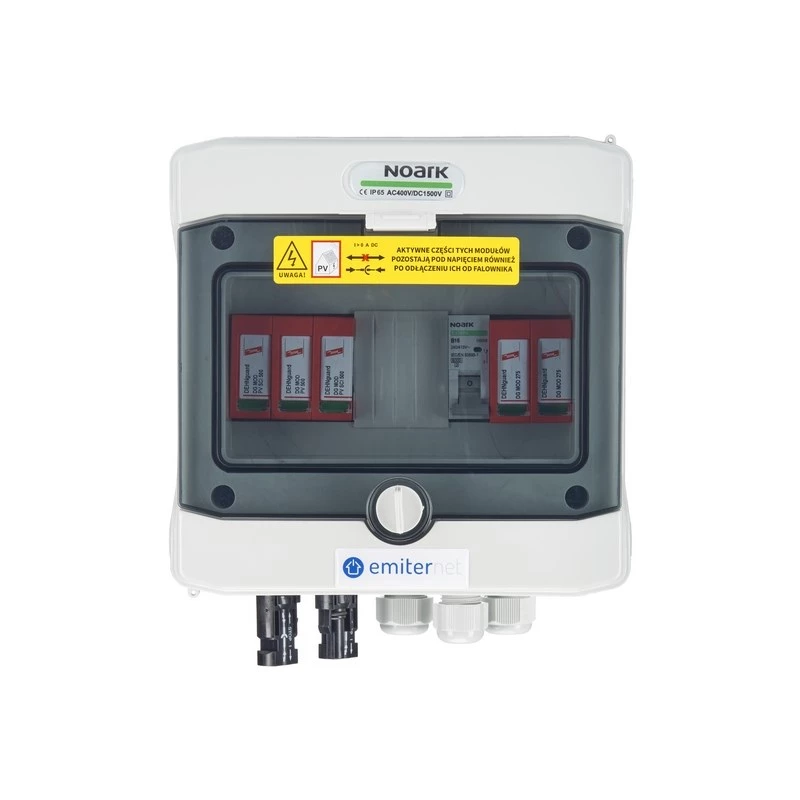

The EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER is a high-performance PV DC/AC combiner box designed for reliable overvoltage protection in photovoltaic systems. It integrates Dehn Type 2 surge arresters for both DC and AC sides, ensuring comprehensive protection against transient overvoltages. With an IP65 hermetic enclosure, it is suitable for outdoor installation, offering durability and UV resistance.

Advantages

This combiner box provides integrated DC and AC surge protection in a single unit, simplifying installation and reducing space requirements. The hermetic IP65 enclosure ensures protection against dust and water ingress, making it ideal for harsh environments. The inclusion of Dehn Type 2 SPDs guarantees high-quality surge protection for both PV strings and AC output.

Suitable for

• Photovoltaic systems requiring Type 2 surge protection on DC and AC sides
• Outdoor installations where IP65 protection is needed
• Single-phase AC systems with up to 16A nominal current
• Systems with one PV string and one MPPT input

Key specifications

• Product Type: PV DC/AC Combiner Box
• Enclosure Ingress Protection (IP) Rating: IP65
• Enclosure Type: Hermetic, UV-resistant
• DC Surge Protection Device (SPD) Brand: Dehn
• DC SPD Type: Type 2
• DC SPD Maximum Continuous Operating Voltage (Ucpv): 1000 V
• Number of PV String Inputs: 1
• Number of MPPT Inputs: 1
• AC Surge Protection Device (SPD) Brand: Dehn
• AC SPD Type: Type 2
• Nominal AC Current Rating: 16 A
• AC Phase Configuration: Single-Phase (1-F)
• Nominal AC Voltage: 230 V AC
• DC Disconnector: Integrated
• AC Circuit Protection: Integrated 16A
• Connection Type: Screw terminals
• Mounting: Wall-mountable
• Operating Temperature Range: -25°C to +60°C
• Application: Photovoltaic (PV) Systems

Recommendations

For optimal performance, ensure proper grounding and follow manufacturer installation guidelines. This combiner box is designed for use with single-phase inverters and one PV string. Verify compatibility with your system voltage and current requirements before installation.
